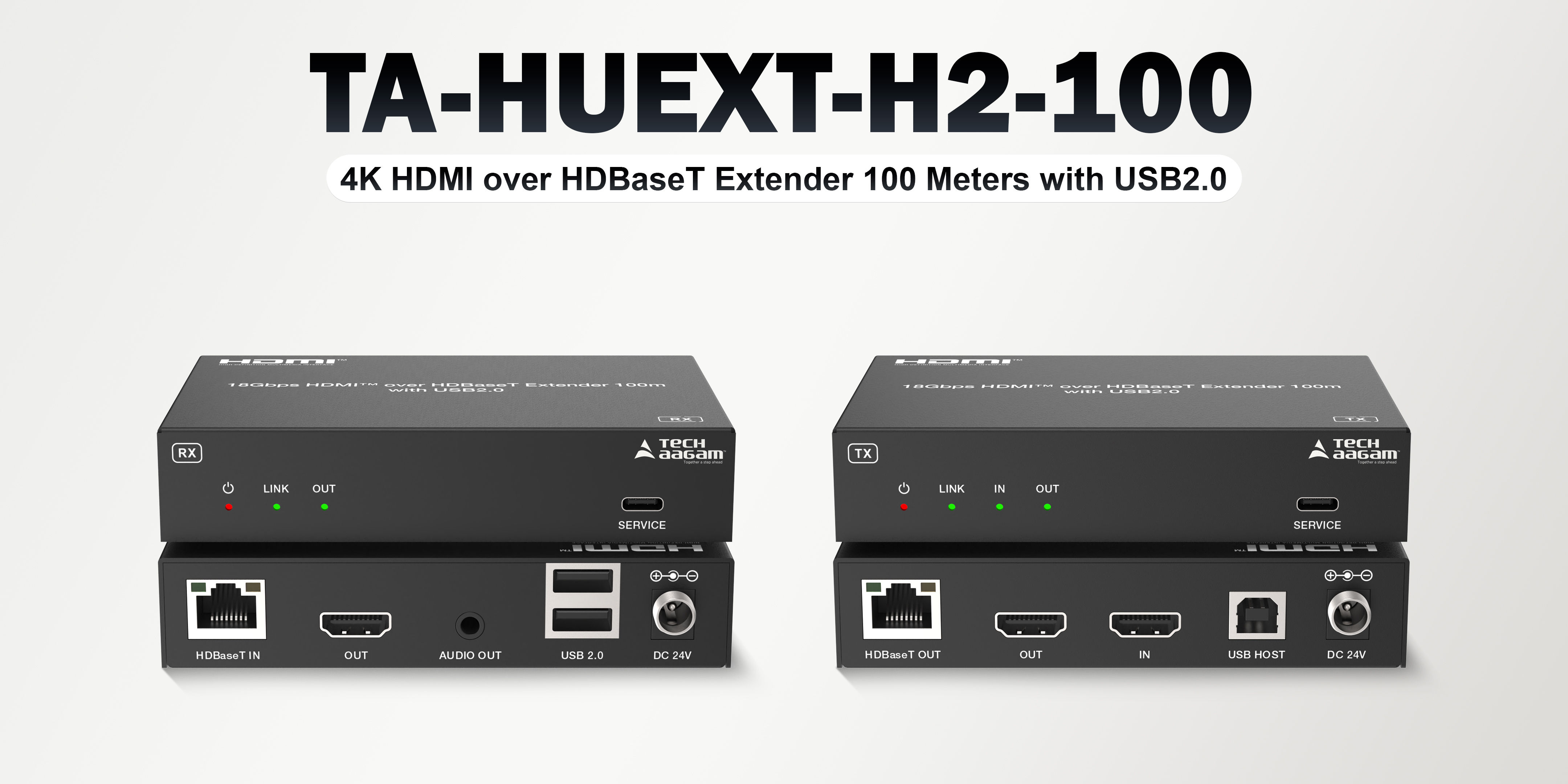

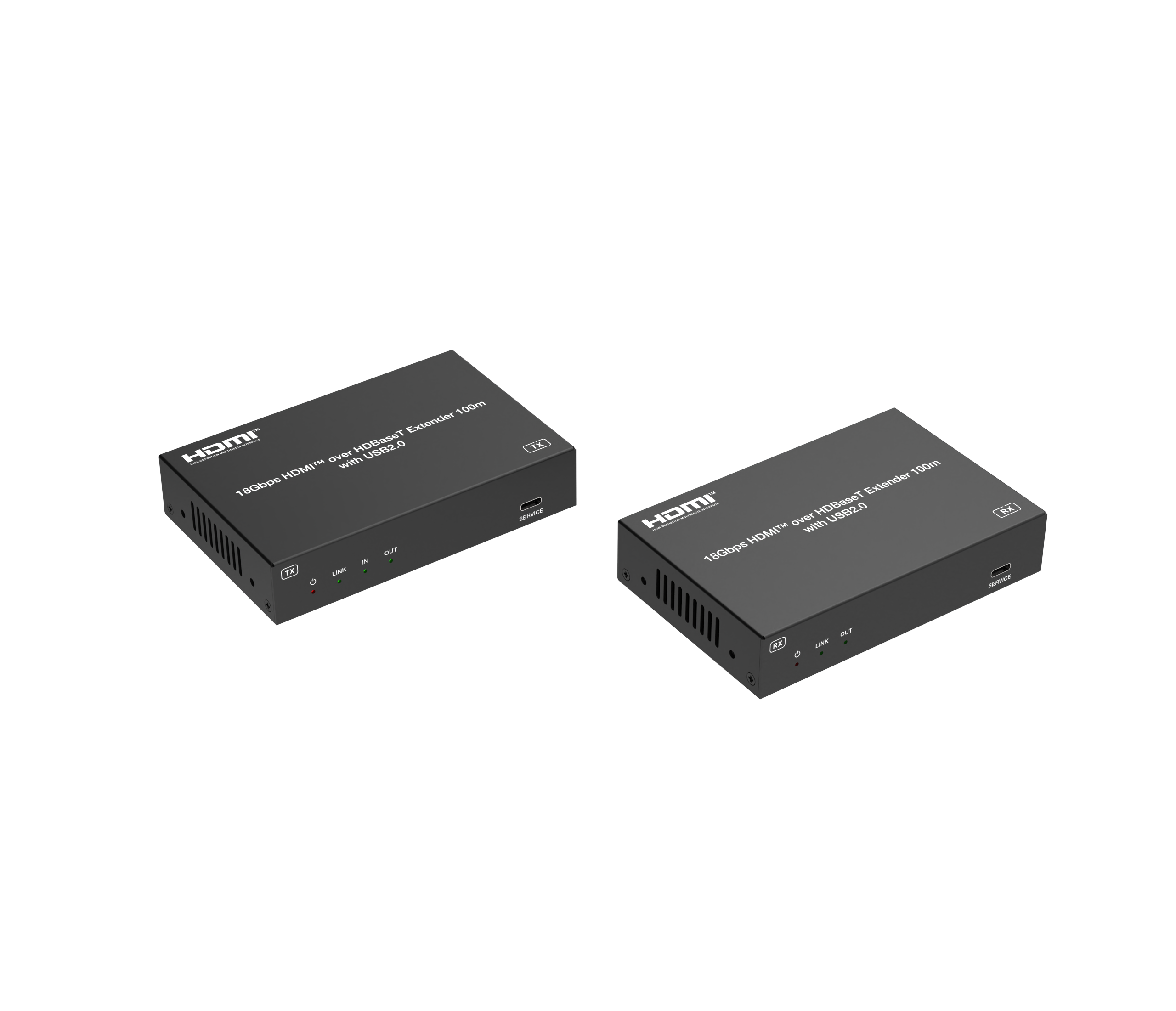

TA-HUEXT-H2-100
The TA-HUEXT-H2-100 is a professional-grade HDBaseT extender designed to transmit 4K UHD HDMI video, audio, and USB 2.0 signals up to 100 meters over a single CAT5e/6 cable. Supporting 4K@60Hz 4:4:4, HDR formats, and bi-directional PoC (Power over Cable), it delivers reliable long-distance AV signal extension for conference rooms, classrooms, digital signage, control rooms, and professional AV installations. The integrated USB 2.0 extension enables seamless remote control of computers and interactive devices, making it ideal for KVM and collaboration applications.
Key Features
- Extends HDMI 2.0b signals up to 100m (328ft) over a single CAT5e/6 cable
- Supports 4K@60Hz 4:4:4 video with 18Gbps bandwidth
- HDCP 2.3 / 2.2 compliant
- USB 2.0 signal extension for keyboard, mouse, touchscreens, and other USB devices
- Supports HDR10, HDR10+, Dolby Vision, and HLG
- Audio support including Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Audio

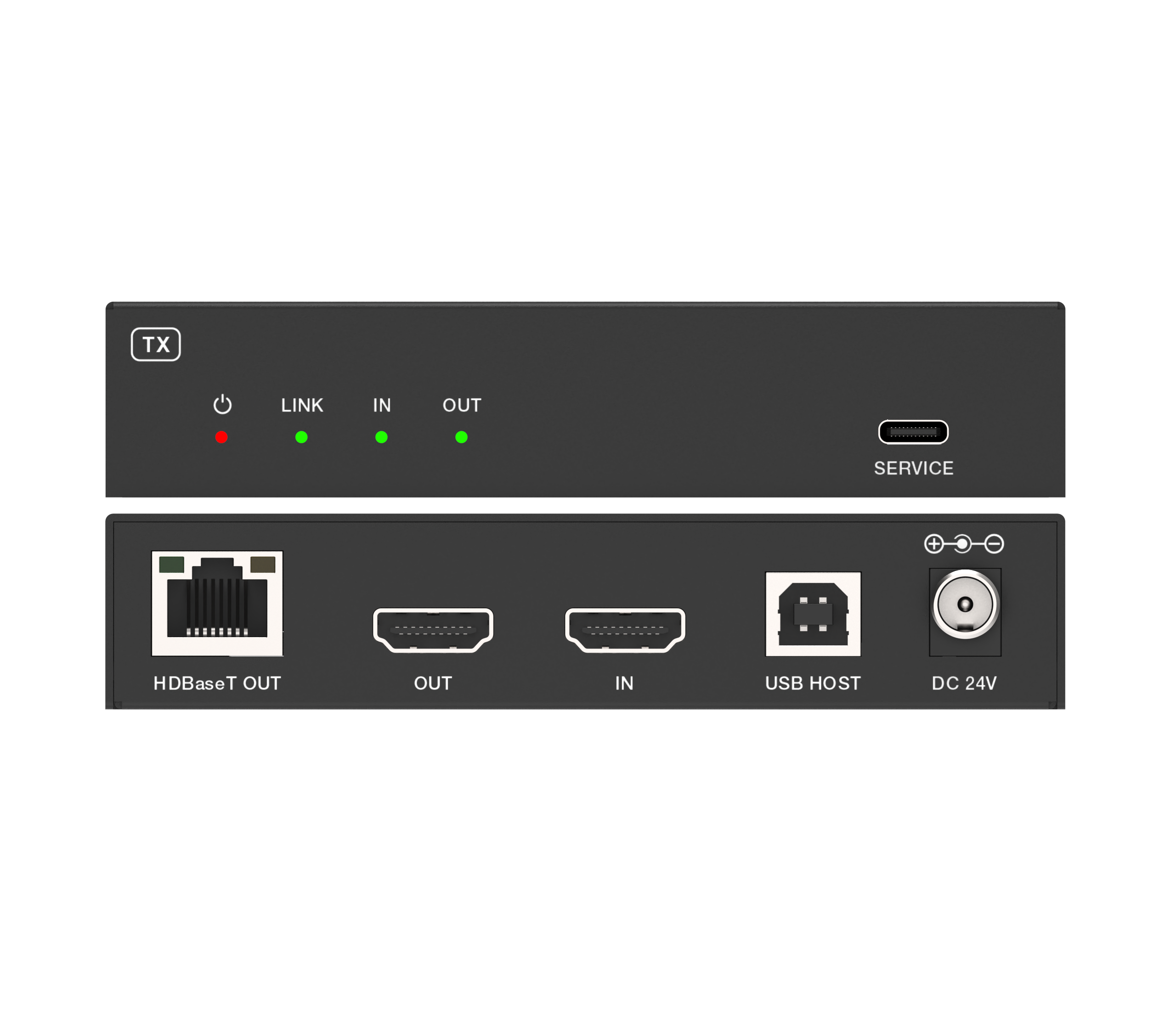

- HDMI loop-out on transmitter for local display monitoring

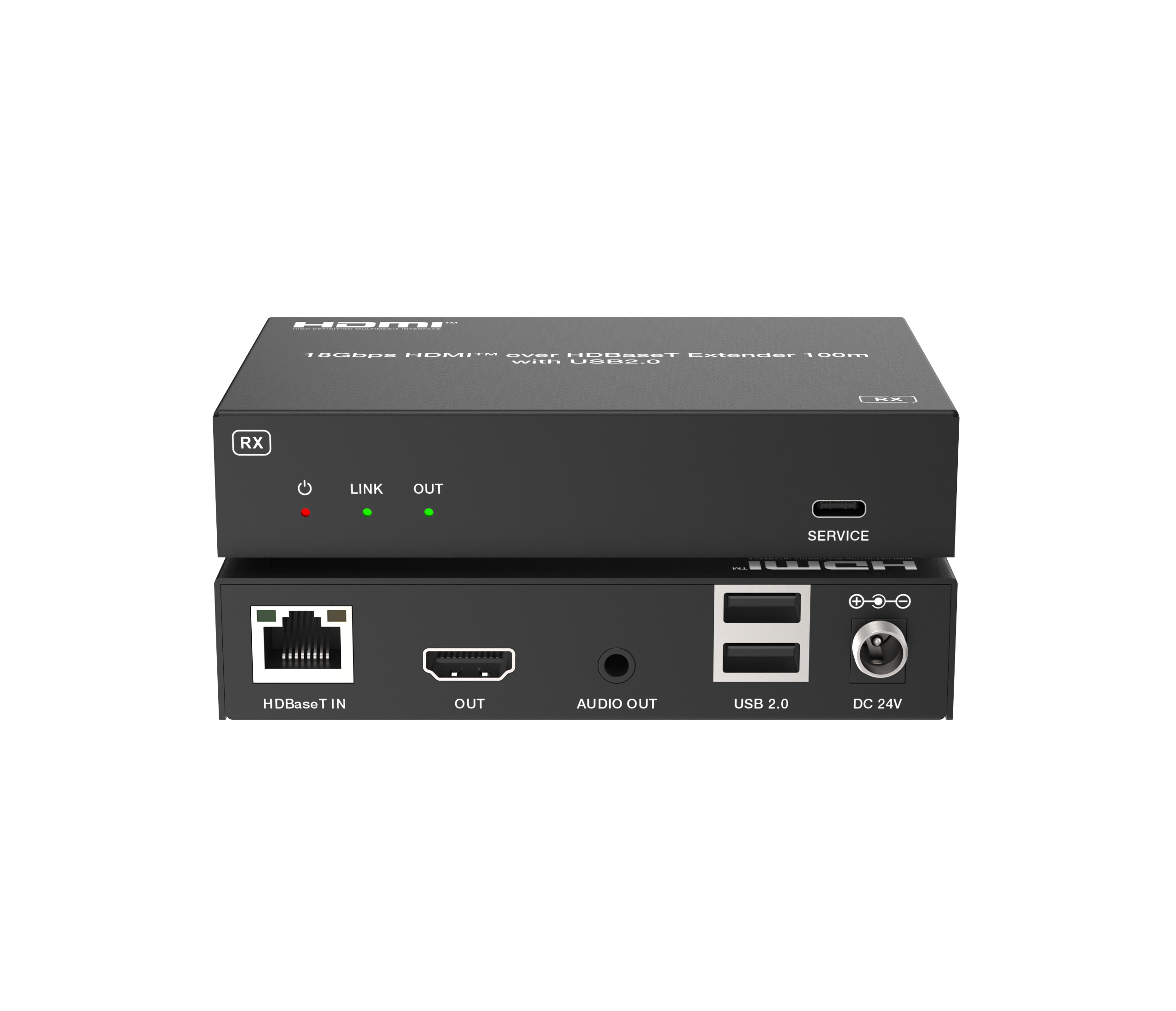

- Analog audio de-embedding output on receiver
- Bi-directional PoC (Power over Cable) allows powering both units from a single power adapter
- CEC pass-through support
- Compact metal enclosure for professional installations
Datasheet
Parameter | Specification |
Model | TA-HUEXT-H2-100 |
Technology | HDBaseT |
HDMI Version | HDMI 2.0b |
HDCP | HDCP 2.3 / 2.2 / 1.x |
Video Bandwidth | 18Gbps |
Maximum Resolution | 4K@60Hz (4:4:4) |
Transmission Distance | 100m over CAT5e/CAT6 |
USB | USB 2.0 Extension |
HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
CEC | Supported |
Audio | HDMI Audio + Analog Audio Output |
PoC | Bi-directional |
Enclosure | Metal |
Power Supply | DC 24V / 1A |
Transmission Performance | |
Resolution | Distance |
4K@60Hz (4:4:4) | 100m |
Cable Type | CAT5e / CAT6 |
Video Bandwidth | 18Gbps |
