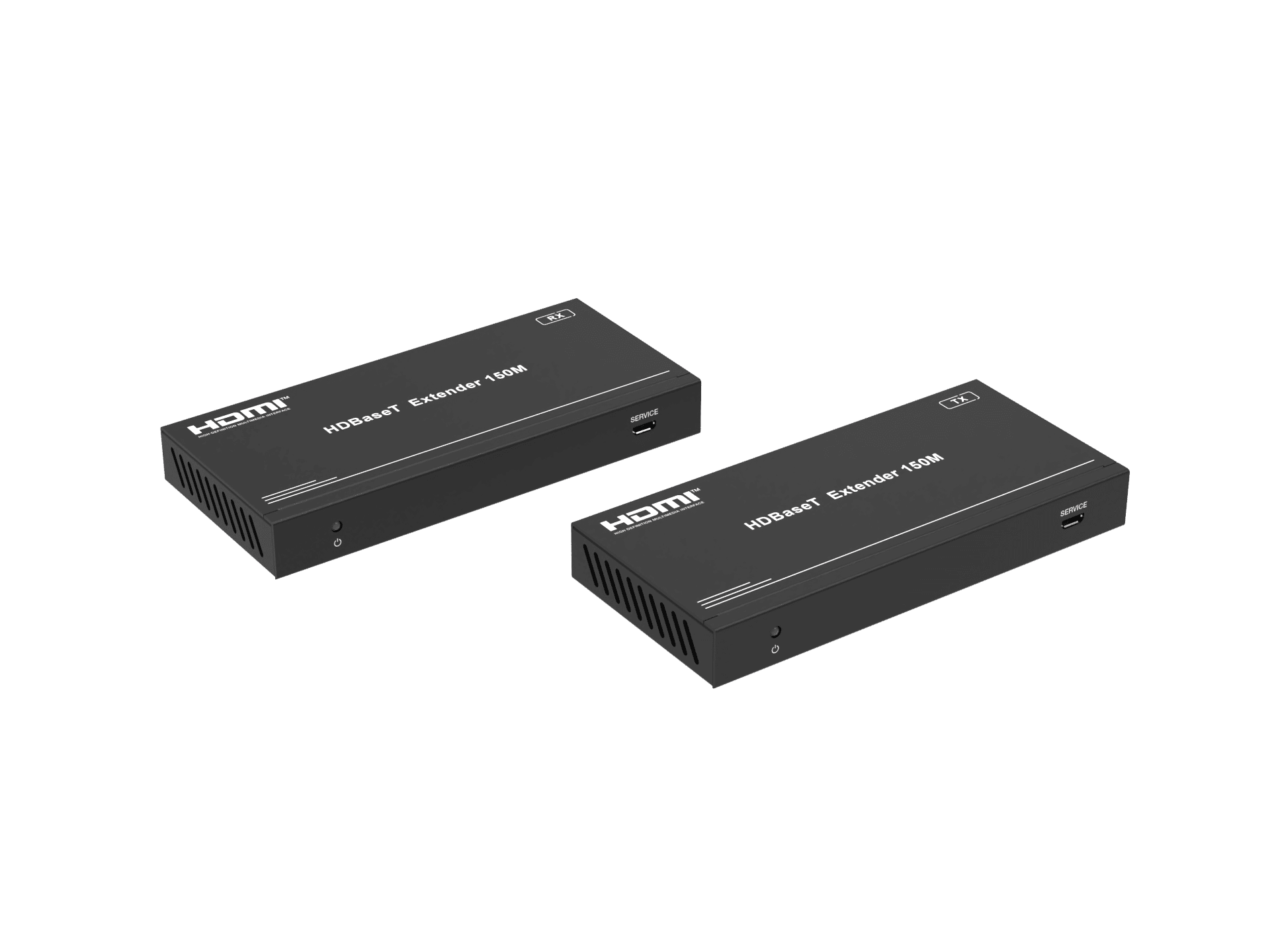

TA-HDMIEXT-4K-150

Detailed Description

The TA-HDMIEXT-4K-150 is engineered for installations where the source rack and the display are separated by structured-cabling distances — typically 30 to 150 metres of Cat 5e or Cat 6. The transmitter accepts a single HDMI 2.0 input from any HDCP 2.2-compliant source — UHD media servers, signage players, set-top boxes, PCs, or HDMI matrix switchers — and serialises an 18 Gbps HDBaseT link onto a single shielded Cat cable. The receiver reconstructs the native HDMI 2.0 stream at the display end, preserving HDR metadata (HDR10, HDR10+, Dolby Vision and HLG) and HDCP 2.2 encryption end to end.

Two features distinguish the -150 from a typical HDBaseT extender. First, the transmitter carries a local HDMI loop output, so a confidence monitor or rack-side display can be driven from the same source without an inline splitter. Second, the receiver provides a de-embedded analog stereo output on a 3.5 mm jack — PCM 2.0 audio is extracted from the HDMI stream and exposed directly to powered speakers, mixers or distributed-audio amplifiers, eliminating a separate audio-extraction product. CEC pass-through is also tunnelled across the link, alongside bi-directional IR and RS-232, so consumer-electronics control and AV automation systems continue to work transparently across the extension.

Reach is targeted at real-world cable plant: 120 m (394 ft) at 4K UHD @ 60 Hz 4:4:4 and 150 m (492 ft) at 1080p over a single Cat 5e/6 cable. Two-way Power-over-Cable means a single 24 V locking adapter at either the TX or the RX powers both units — useful where the display location is power-constrained. The compact metal chassis (140 × 65 × 18 mm) ships with mounting ears for under-table, behind-display, lectern, podium or rack-shelf installation, and a Mini-USB SERVICE port on each unit allows in-field firmware updates.

• Long-haul reach over Cat 5e/6. 120 m at 4K UHD, 150 m at 1080p — no special-grade cable required.
• Full 18 Gbps HDMI 2.0. 4K@60 4:4:4, HDR10/HDR10+/Dolby Vision/HLG, HDCP 2.2.
• HDMI loop-out on the TX. Built-in confidence monitor port — no separate splitter.
• De-embedded analog audio on the RX. 3.5 mm stereo straight to amps or powered speakers.
• IR, RS-232 and CEC pass-through. Preserves the full control fabric end to end.
• Two-way PoC. One 24 V locking adapter, either end.
• Field-serviceable. Mini-USB SERVICE port for firmware updates.

18 Gbps HDMI 2.0 with full 4K@60 4:4:4 support

End-to-end HDMI 2.0 link supporting 4K UHD at 60 Hz with 4:4:4 chroma sampling and 8-bit colour depth, plus 4K@30Hz at 4:4:4 and 4K@60Hz at 4:2:2 / 4:2:0 with 8 / 10 / 12-bit colour. Full backwards compatibility with 1080p, 1080i, 720p and all HDMI 3D TV formats, together with PC resolutions up to 1920×1200.

Comprehensive HDR support

Static and dynamic HDR formats are passed unchanged: HDR10, HDR10+, Dolby Vision and HLG. EDID and HDR metadata flow transparently between source and display, ensuring the correct HDR profile is negotiated automatically.

Long-haul transmission over Cat 5e / 6

Up to 120 m (394 ft) at 4K UHD and 150 m (492 ft) at 1080p over a single Cat 5e/6 cable. No upgrade to Cat 6a/7 is required, which simplifies retrofits into existing structured-cabling plant.

HDMI loop output on the transmitter

A second HDMI Type A connector on the TX provides a buffered local copy of the source signal — ideal for a presenter-side confidence monitor, a rack-side test display, or feeding a second downstream device without an external splitter.

De-embedded analog stereo on the receiver

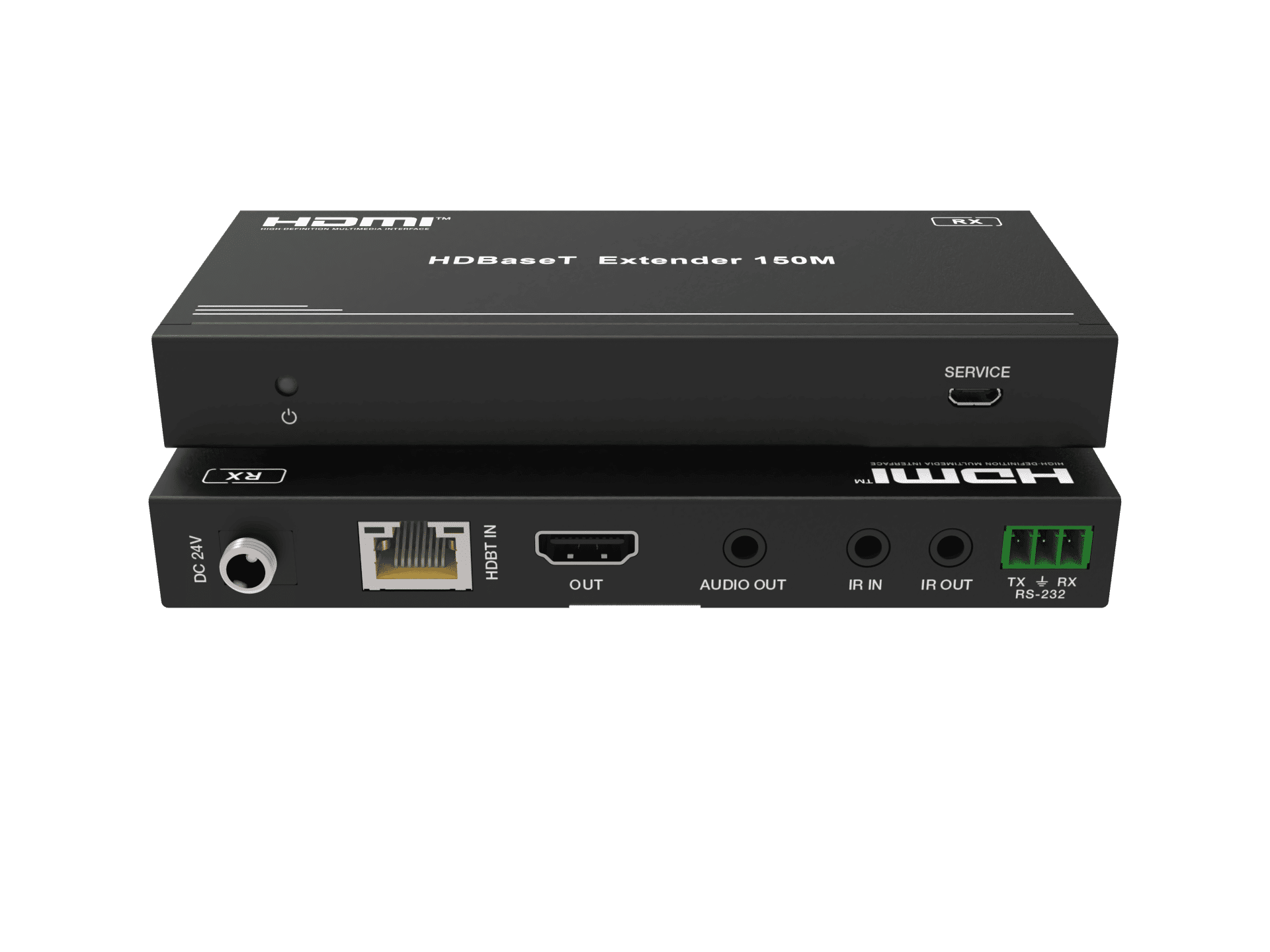

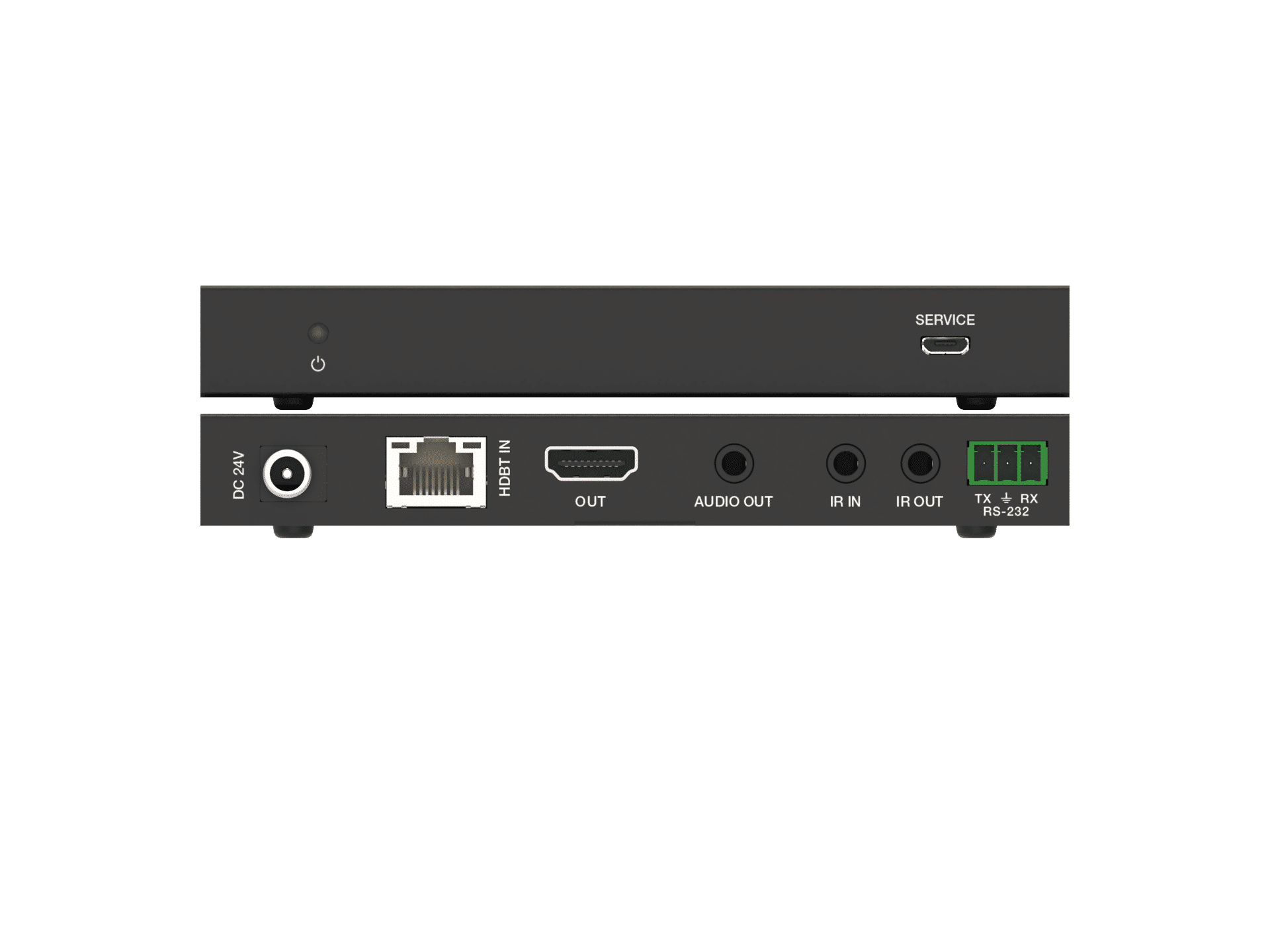

A 3.5 mm stereo mini-jack on the RX exposes PCM 2.0 audio extracted from the HDMI stream, ready to feed powered speakers, a mixer, or a distributed-audio amplifier — without a separate audio de-embedder in the rack.

Bi-directional IR, RS-232 and CEC pass-through

The HDBaseT link tunnels three control channels simultaneously. Bi-directional IR (3.5 mm jacks, 20–60 kHz IR receiver), transparent RS-232 over a 3-pin Phoenix connector for control-system integration (Crestron, Extron, AMX, Q-SYS), and CEC for consumer-electronics command propagation between the source and the display.

Two-way Power-over-Cable (PoC)

The bundled 24 V / 1 A locking adapter can be connected at either the TX or the RX side; the other unit is powered through the Cat cable. Total system power is 9.36 W — practical even for fan-less, behind-display installations.

At-a-glance diagnostics and field firmware update

A red Power LED, a Connection Signal indicator (illuminating / flashing / dark for good / poor / no link), and a Data Signal indicator (HDCP-protected / unprotected / no signal) provide immediate diagnostics on each unit. A Mini-USB SERVICE port on both TX and RX enables firmware updates without removing the device from service.

Robust electrical design

Human-Body-Model ESD protection of ±8 kV air-gap and ±4 kV contact discharge, paired with a universal-input AC adapter (100–240 V 50/60 Hz), supports reliable operation across global installations.

Key Features

• Extends HDMI signals up to 150m (1080p) / 120m (4K) over CAT5e/6
• Supports 4K@60Hz 4:4:4, 18Gbps bandwidth
• Compatible with HDCP 2.2 / 1.4 and DVI 1.0
• Supports HDR, HDR10+, Dolby Vision, HLG
• Bi-directional IR, RS-232, and CEC pass-through
• HDMI loop output on transmitter
• Audio de--embedding (L/R stereo output) on receiver
• Power over Cable (PoC) – single power adapter operation
• Compact, durable design for professional installations
