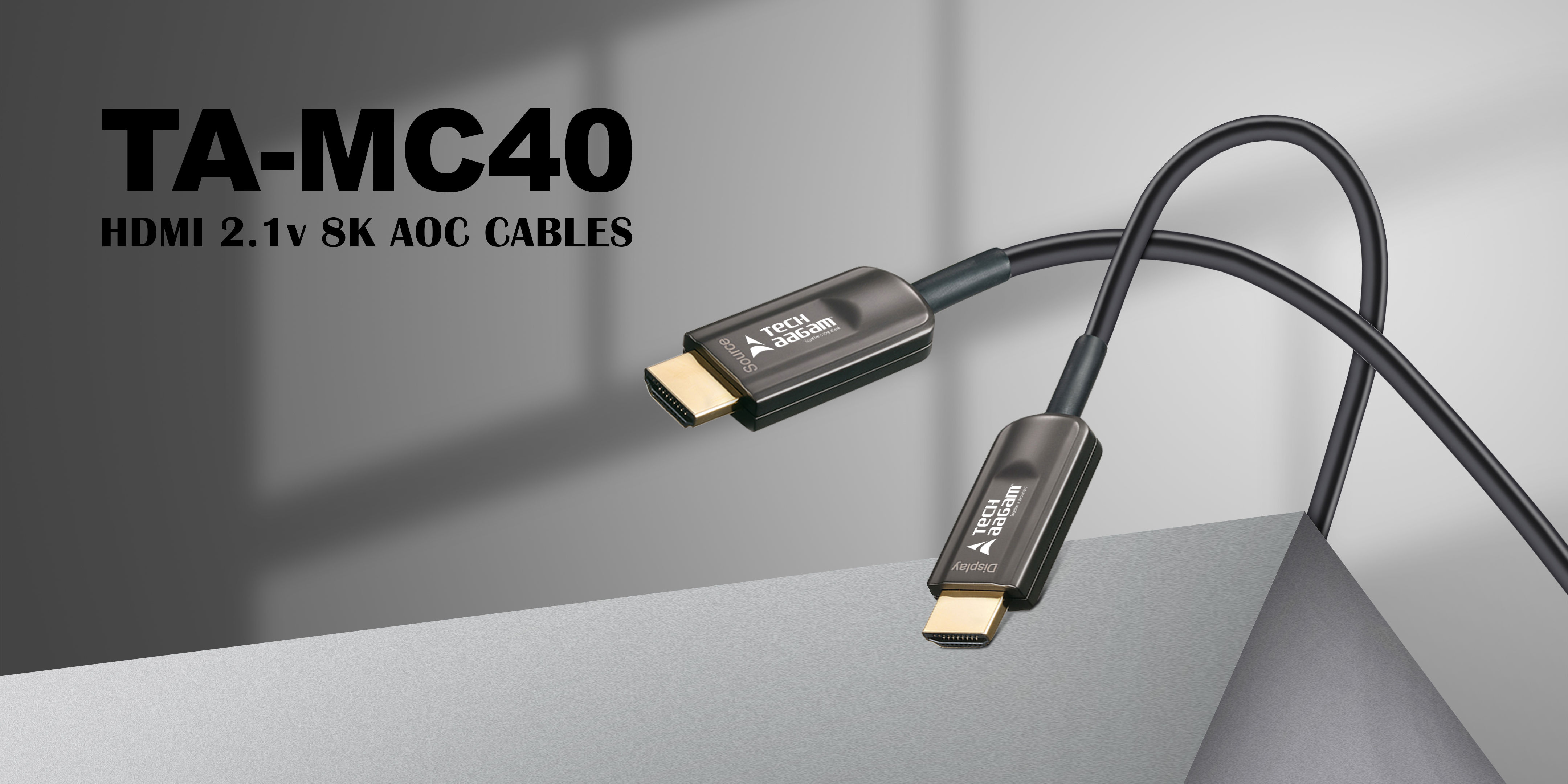

TA-MC40-DHD

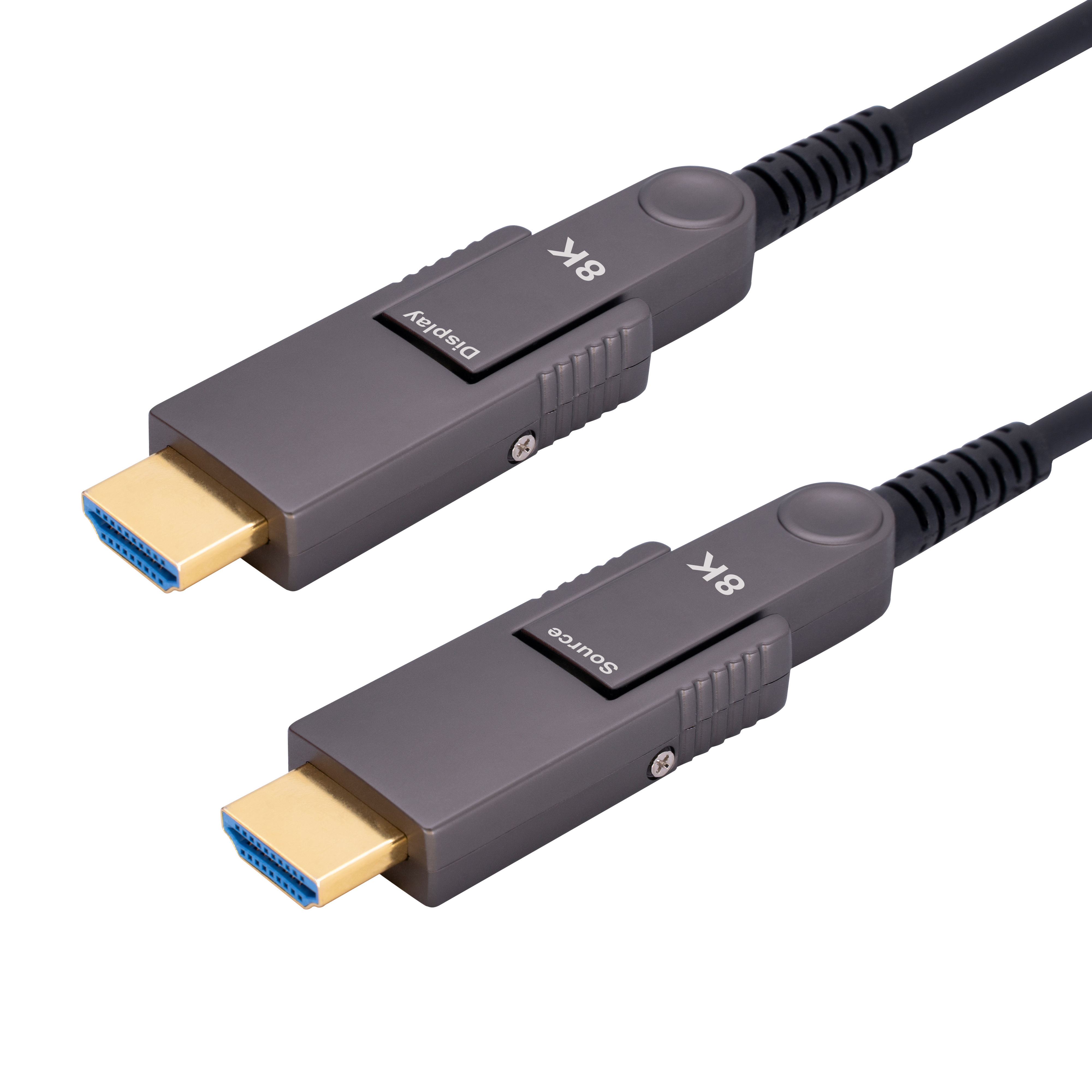

The Techaagam’s TA-MC40-DHD Detachable HDMI 2.1 8K Cable is a premium ultra-high-speed HDMI interconnect designed with a detachable / modular connector system for easy installation in confined spaces and structured AV environments. Supporting the full HDMI 2.1 specification with 48 Gbps bandwidth, this cable delivers uncompromised performance for 8K Ultra HD, high-frame-rate 4K, advanced gaming features, and immersive audio formats.The detachable connector design simplifies cable routing through conduits, wall plates, racks, and raceways, then securely reattaches to provide a clean and professional finish.
Datasheet
Parameter | Specification |
Series | TA-MC40-DHD Detachable HDMI 2.1 8K |
Cable Type | Hybrid Active Optical Detachable Cable |
HDMI Version | HDMI 2.1 |
Maximum Data Rate | 48Gbps |
Video Bandwidth | 12Gbps × 4 Channels |
Supported Resolutions | 480p / 720p / 1080i / 1080p (Deep Color) 4K@50/60/100/120Hz 8K@50/60Hz |
Color Format | RGB / YCbCr 4:4:4 |
HDR Support | Dynamic HDR |
Optical Transmitter | 4-channel 850nm VCSEL array |
Optical Receiver | 4-channel GaAs PD array |
Differential Input Impedance | 100Ω (typ.) |
Power Consumption | ≤250mW |
Conductor Material | High-purity oxygen-free copper |
Optical Fiber | OM3 Multimode Fiber |
Cable Outer Diameter | 4.5mm |
Minimum Bend Radius (Long-term) | ≥45mm |
Jacket Material | PVC / CMP / LSZH (Customizable) |
Cable Color | Matte Black |
Available Lengths | 10m, 15m, 20m |
Connector Dimensions | Type-D: 39.8 × 13.9 × 9.8 mm Type-A: 44.0 × 20.7 × 9.8 mm |
Power Supply Voltage | Absolute: 4.5V – 5.5V Recommended: 4.75V – 5.25V |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -40°C to 70°C |
Relative Humidity | 10% – 80% RH |
flammability | UL, VW-1 |
Compliance | CE, RoHS |
