TA-MC41

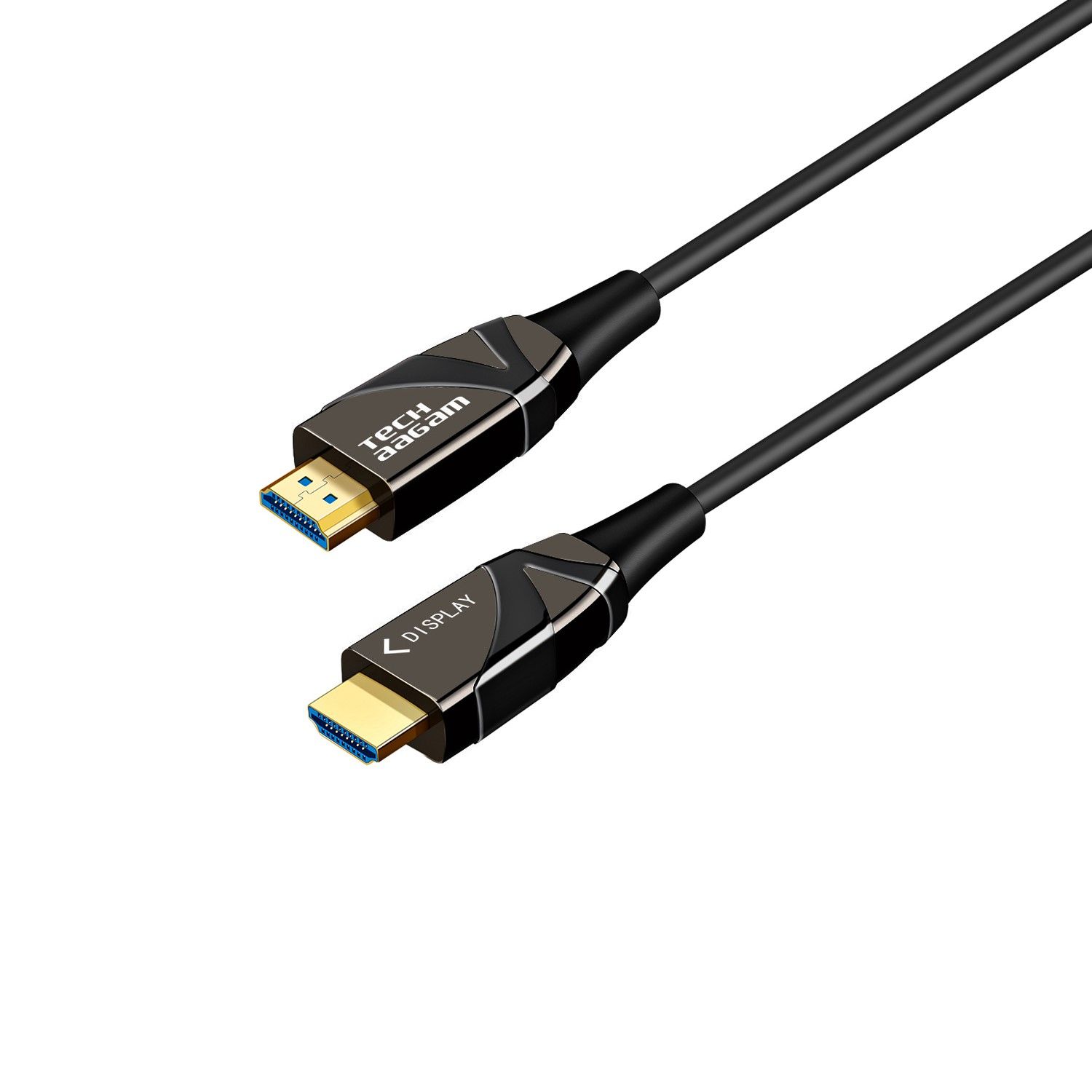

The Techaagam’s TA-MC41 HDMI Male to Male Cable (AOC, HDMI 2.0, 4K) is a high-performance Active Optical Cable (AOC) designed for long-distance transmission of high-definition digital audio and video signals. By using optical fiber for high-speed TMDS data and copper conductors for control and power, this hybrid cable delivers stable, interference-free performance at HDMI 2.0 bandwidth levels. Supporting 4K Ultra HD @ 60 Hz, deep color, and multi-channel audio, this cable is ideal for professional AV installations, digital signage, home theaters, conference rooms, and control room environments where standard passive HDMI cables are limited by distance.
Datasheet
Parameter | Specification |
Series | TA-MC41 HDMI AOC Series |
Cable Type | Active Optical HDMI Cable (Hybrid Fiber + Copper) |
HDMI Version | HDMI 2.0 |
Connector Type | HDMI Type-A Male to HDMI Type-A Male |
Direction | Unidirectional (Source → Display) |
Maximum Bandwidth | Up to 18 Gbps |
Supported Resolutions | PC: WUXGA 1920×1200 up to 100m HDTV: 480p / 720p / 1080i / 1080p (Deep Color) 4K@60Hz Full HD 3D (1920×1080) |
Color Depth | 24-bit / 30-bit / 36-bit (Deep Color Supported) |
Color Sampling | 4:4:4 / 4:2:2 / 4:2:0 |
HDR Support | HDR10, HDR10+, Dolby Vision®, HLG |
Audio Support | Dolby®, DTS®, LPCM multi-channel audio |
HDCP | HDCP 2.2 |
ARC / CEC | Yes |
Transmission Medium | Optical fiber (TMDS) + Copper (control & power) |
EMI Immunity | Yes (fiber transmission immune to EMI) |
Differential Impedance | 100Ω (typ.) |
Cable Jacket | PVC / LSZH (model dependent) |
Cable Color | Matte Black |
Power Requirement | Powered via HDMI interface (no external power) |
Transmitter (Source) | 4-channel 850nm VCSEL array |
Receiver (Sink) | 4-channel GaAs PD array |
Power Consumption | ≤ 250mW |
Power Supply | HDMI interface powered (no external power) |
Supply Voltage | 4.75V – 5.25V |
Cable Outer Diameter | 4.5mm |
Minimum Bending Radius | 45mm |
Available Lengths | 10m, 15m, 20m, 30m |
Operating Temperature | 0°C to +50°C |
Storage Temperature | –40°C to +70°C |
Relative Humidity | 10% – 80% RH |
flammability | UL, VW-1 |
Compliance | CE, RoHS |
