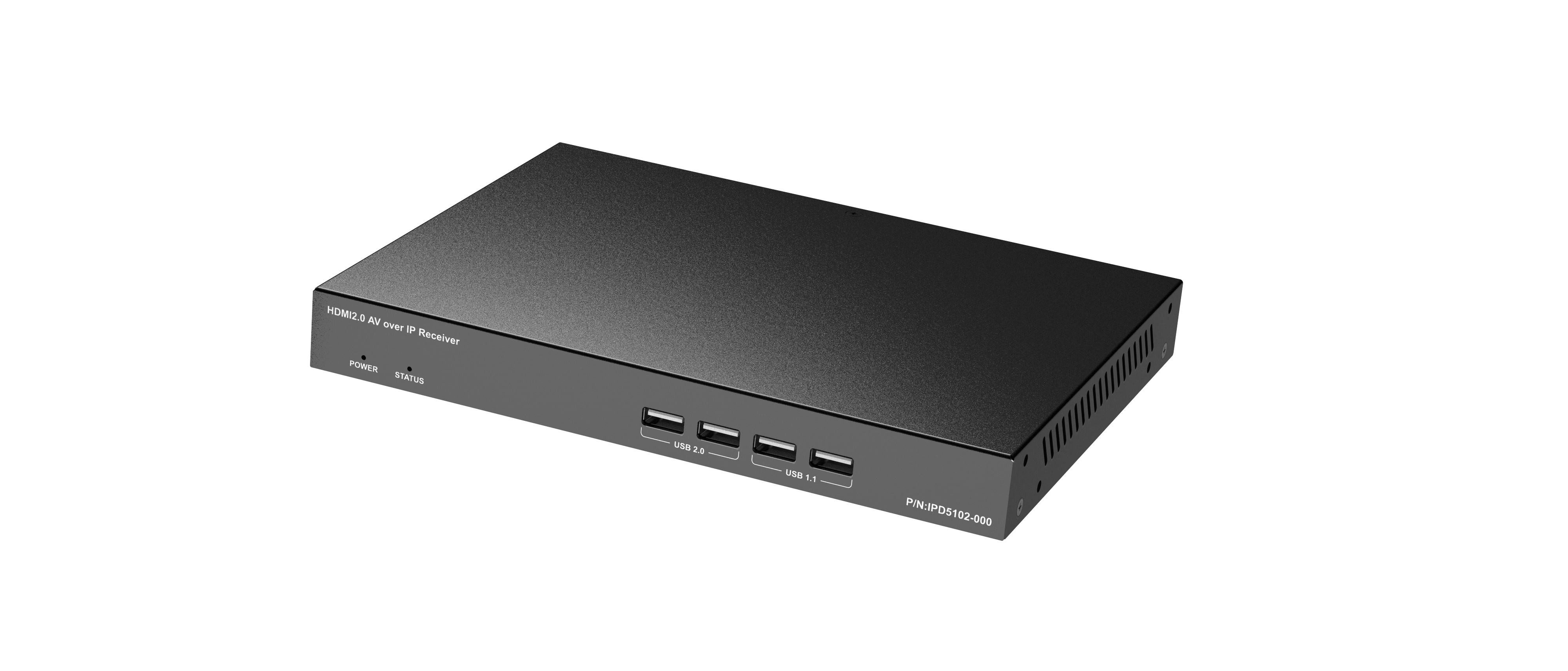

UNITY IPX TA-IPX5102-D
The UNITY IPX TA-IPX5102-D is a professional HDMI 2.0 AV over IP Decoder designed to receive high-quality audio and video streams over a standard Gigabit Ethernet network and deliver them to an HDMI display. Designed to work with IP5100 series encoders, the decoder provides a flexible and scalable platform for AV signal distribution, routing and management across standard network infrastructure.
Supporting resolutions up to 4K@60Hz 4:4:4 with an 18Gbps data rate, the TA-IPX5102-D delivers high-quality video with ultra-low latency of as little as 4ms in Ultra Low Latency mode. It supports HDR10, Dolby Vision, HDCP 2.2/2.3 and advanced multi-channel audio formats including Dolby Atmos, DTS-HD Master Audio and DTS:X.
The decoder supports AV, USB, RS-232 and IR signal routing, along with USB extension, KVM/KM roaming and video-wall applications up to 16×16. With transmission of AV and control signals up to 100m over CAT5e or higher, PoE+ support, three Ethernet interfaces including an SFP port, and optional Dante audio integration, the TA-IPX5102-D is well suited for conference rooms, classrooms, control rooms, auditoriums, sports bars, corporate AV systems and large-scale video distribution installations.
Key Features
- HDMI 2.0 AV over IP Decoder for professional AV distribution over Gigabit Ethernet networks.
- Supports 4K UHD resolution up to 3840 × 2160@60Hz 4:4:4.
- 18Gbps maximum video bandwidth with up to 600MHz pixel clock.
- Ultra-low latency down to 4ms at 4K@60Hz.
- Supports HDR10 and Dolby Vision for enhanced image quality.
- HDCP 2.2/2.3 compliant for protected digital content.
- Supports up to 100m transmission over a single CAT5e or higher network cable within a LAN.

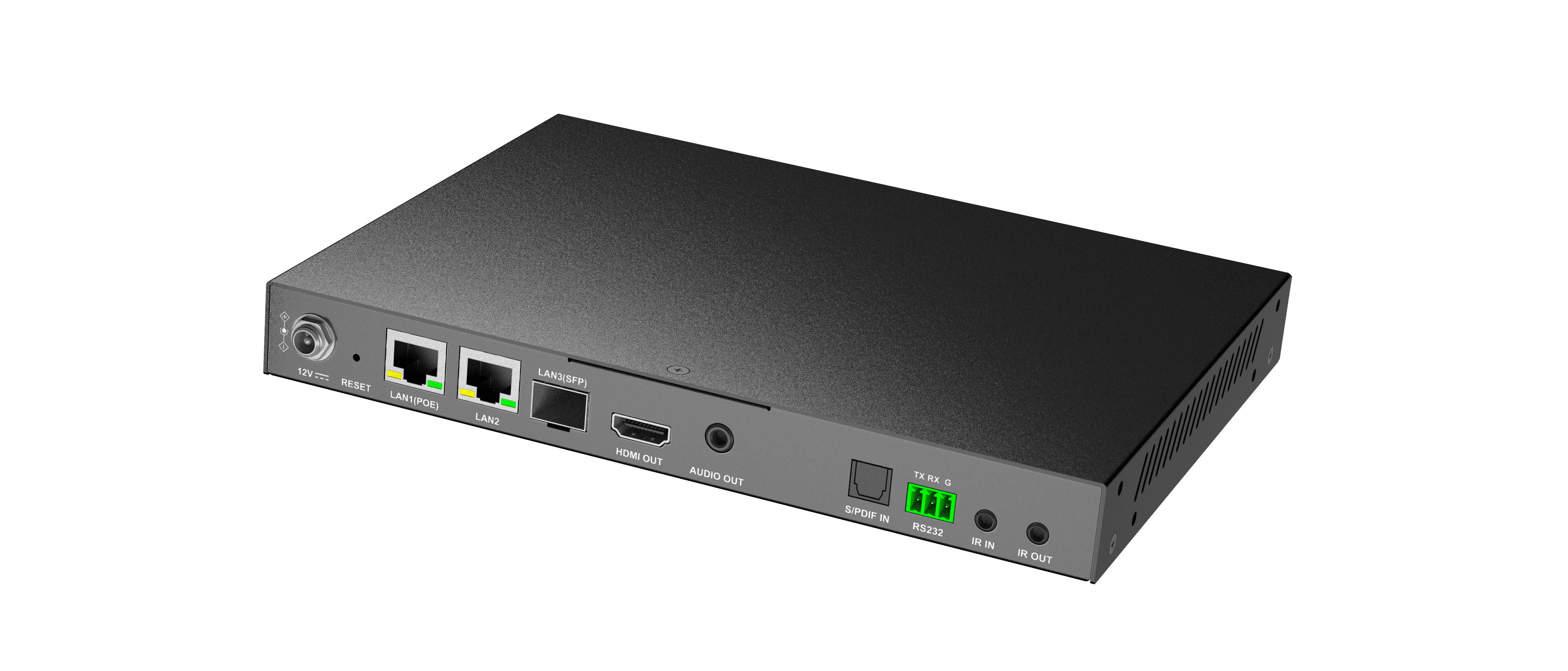

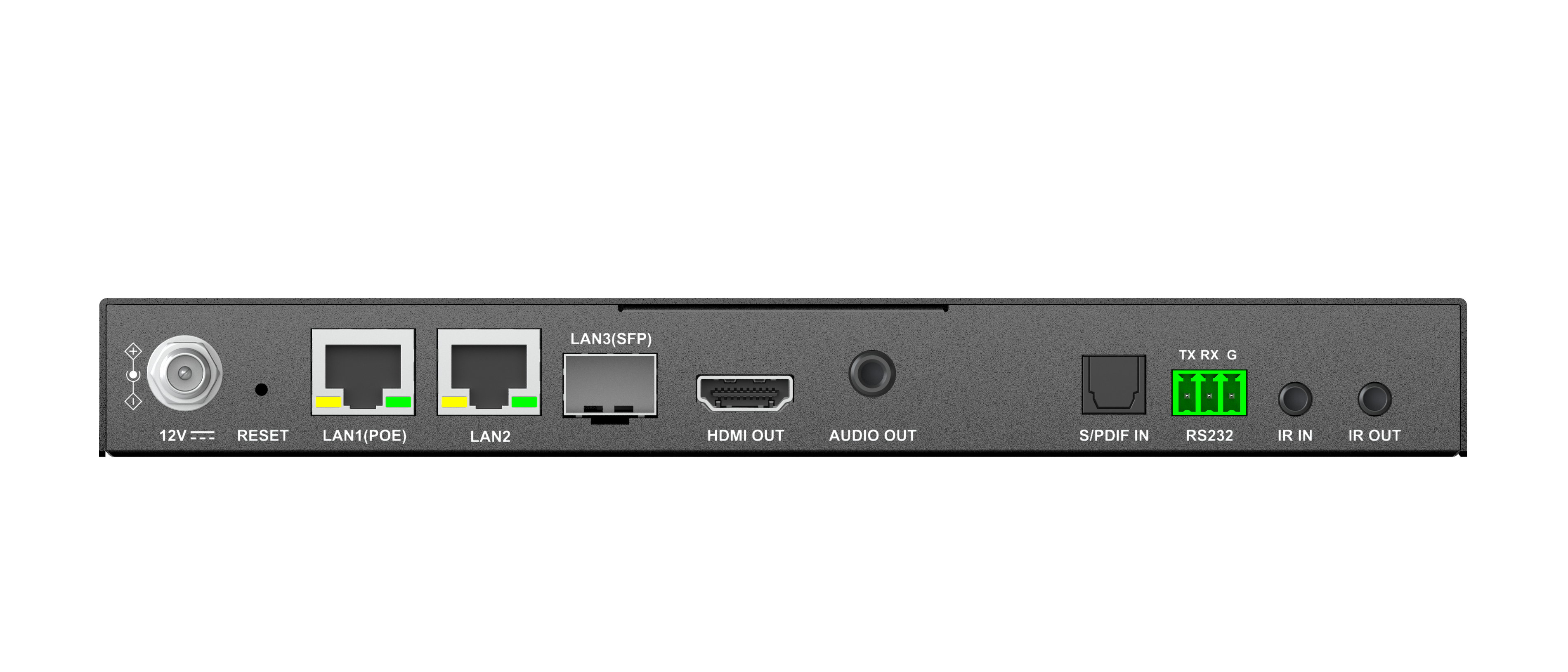

- Three Ethernet ports: LAN1 with PoE+, LAN2, and LAN3 SFP for flexible network deployment.
- PoE+ support allows power delivery through a compatible Ethernet switch, reducing local power requirements.

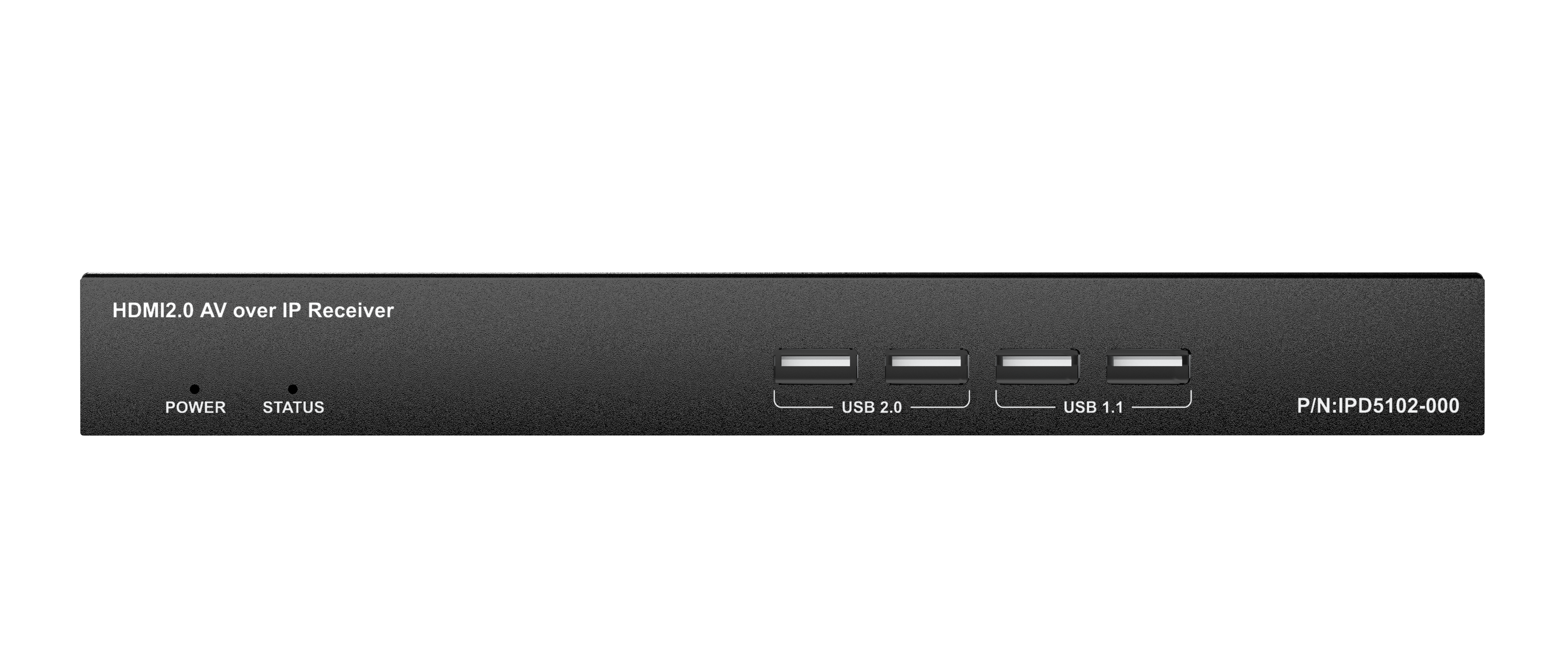

- Supports USB 2.0/USB 1.1 extension for USB peripherals, KVM and KM roaming applications.
- Supports video walls up to 16 × 16 with flexible fit-in, stretch-out and rotation modes.
- Supports advanced audio formats including PCM 7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X.
- HDMI eARC audio return support and independent analog audio de-embedding.
- Optional Dante audio integration, supporting 2 × 2 Dante audio transmission when licensed.
- Bidirectional IR and RS-232 for remote device control and automation.
- Supports point-to-point, point-to-multipoint, multipoint-to-point and multipoint-to-multipoint AV distribution.
- Supports centralized control through Telnet API and IP Controller.
- Supports DHCP with Auto-IP fallback for flexible network deployment.
- Suitable for conference rooms, classrooms, auditoriums, sports bars, control rooms and large-scale AV distribution systems.
Datasheet
Parameter | Specification |
Product Name | UNITY IPX TA-IPX5102-D |
Product Type | HDMI 2.0 AV over IP Decoder |
Maximum Resolution | 3840 × 2160@60Hz 4:4:4 |
Bandwidth | 18Gbps |
Latency | 19ms Normal / 4ms Ultra Low Latency @ 4K60 |
Network Interface | 2 × RJ45 + 1 × SFP |
Maximum Network Distance | Up to 100m over CAT5e or higher |
HDMI Output | 1 × HDMI |
Audio Output | 1 × 3.5mm Stereo |
S/PDIF | 1 × Optical S/PDIF Input |
USB | 2 × USB 2.0 + 2 × USB 1.1 |
RS-232 | Bidirectional |
IR | Bidirectional IR IN/OUT |
Video Wall | Up to 16 × 16 |
HDR | HDR10, Dolby Vision |
Audio | PCM 7.1, Dolby Atmos, DTS-HD MA, DTS:X |
Dante | 2×2 when licensed |
PoE+ | Supported |
Control | Telnet API, IP Controller |
Power | 12V DC 3A / PoE+ |
Power Consumption | 21W Max |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 60°C |
Relative Humidity | 20–90% RH, non-condensing |
