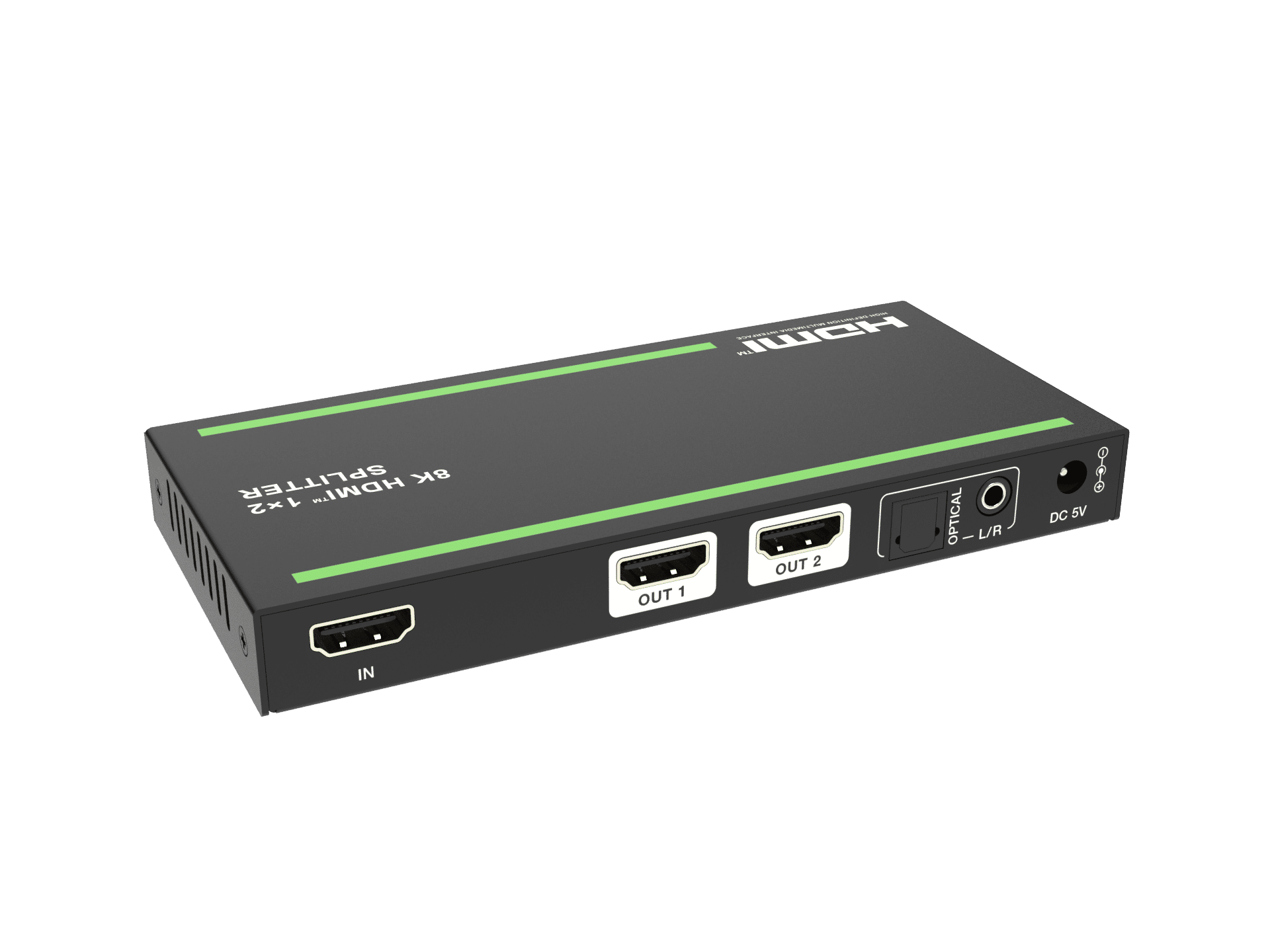

TA-UHS12-8K
48Gbps 8K HDMI™ 1×2 Splitter with Auto Downscaling, HDR Conversion & Audio De-Embedding
The TECHAAGAM TA-UHS12-8K-SA is a premium HDMI 2.1 1×2 Splitter designed to distribute a single HDMI source to two displays while delivering uncompromised 8K Ultra HD performance. Supporting 48Gbps FRL bandwidth, resolutions up to 8K@60Hz and 4K@120Hz, the splitter ensures exceptional image quality, low latency, and seamless compatibility with the latest HDMI 2.1 source and display devices. It is the ideal solution for professional AV installations, gaming, digital signage, conference rooms, education, and premium home theatre applications.
The TA-UHS12-8K-SA features intelligent Automatic Downscaling and HDR-to-SDR Conversion, enabling simultaneous connection of 8K, 4K, and Full HD displays. Each output automatically detects the connected display's capabilities and delivers the optimal resolution and HDR format, ensuring maximum compatibility without manual configuration. Integrated optical and analog audio de-embedding further enhance system flexibility for professional AV installations.
Key Features
- Distributes 1 HDMI source to 2 HDMI displays
- HDMI 2.1 compliant with 48Gbps FRL and 18Gbps TMDS bandwidth
- Supports resolutions up to:
- 8K@60Hz (4:2:0, 12-bit)
- 4K@120Hz (4:4:4, 12-bit)
- Supports HDR10, HDR10+, Dolby Vision, HLG
- Supports VRR, FVA and ALLM for next-generation gaming and entertainment
- Automatic 8K → 4K → 1080p downscaling on each output
- Automatic HDR to SDR conversion for legacy displays
- Advanced EDID management for maximum compatibility
- Optical (S/PDIF) and Analog Stereo Audio De-Embedding
- Supports LPCM 7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and other advanced audio formats
- USB-C service port for firmware updates
- Compact metal enclosure for reliable 24/7 operation
Intelligent Auto Downscaling
The TA-UHS12-8K-SA automatically analyses the EDID information of each connected display and optimizes the output resolution independently, allowing mixed-resolution environments to operate seamlessly.
Typical deployment scenarios include:
- 8K source → Simultaneous output to 8K HDR and 4K/1080p displays
- 4K HDR source → Simultaneous output to 4K HDR and Full HD displays
- 1080p HDR source → Automatic conversion for SDR or legacy DVI displays when required
This intelligent processing significantly simplifies installation while ensuring the best possible viewing experience across all connected displays.
Datasheet
Parameter | Specification |
Product Name | TA-UHS12-8K |
Product Type | HDMI 2.1 1×2 Splitter |
HDMI Compliance | HDMI 2.1 |
HDCP Compliance | HDCP 2.3 |
Video Bandwidth | 48Gbps FRL / 18Gbps TMDS |
Input | 1 × HDMI |
Outputs | 2 × HDMI |
Maximum Resolution | 8K@60Hz 4:2:0 12-bit |
4K Resolution | 4K@120Hz 4:4:4 12-bit |
Color Depth | 8 / 10 / 12-bit |
Color Space | RGB, YCbCr 4:4:4, 4:2:2, 4:2:0 |
HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
Audio | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-HD Master Audio, DSD |
EDID | DIP-switch selectable |
Service Port | USB Type-C |
Power Supply | AC 100–240V input / DC 5V 2A output |
Power Consumption | 4.3W Max |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 60°C |
Humidity | 20–90% RH, non-condensing |
