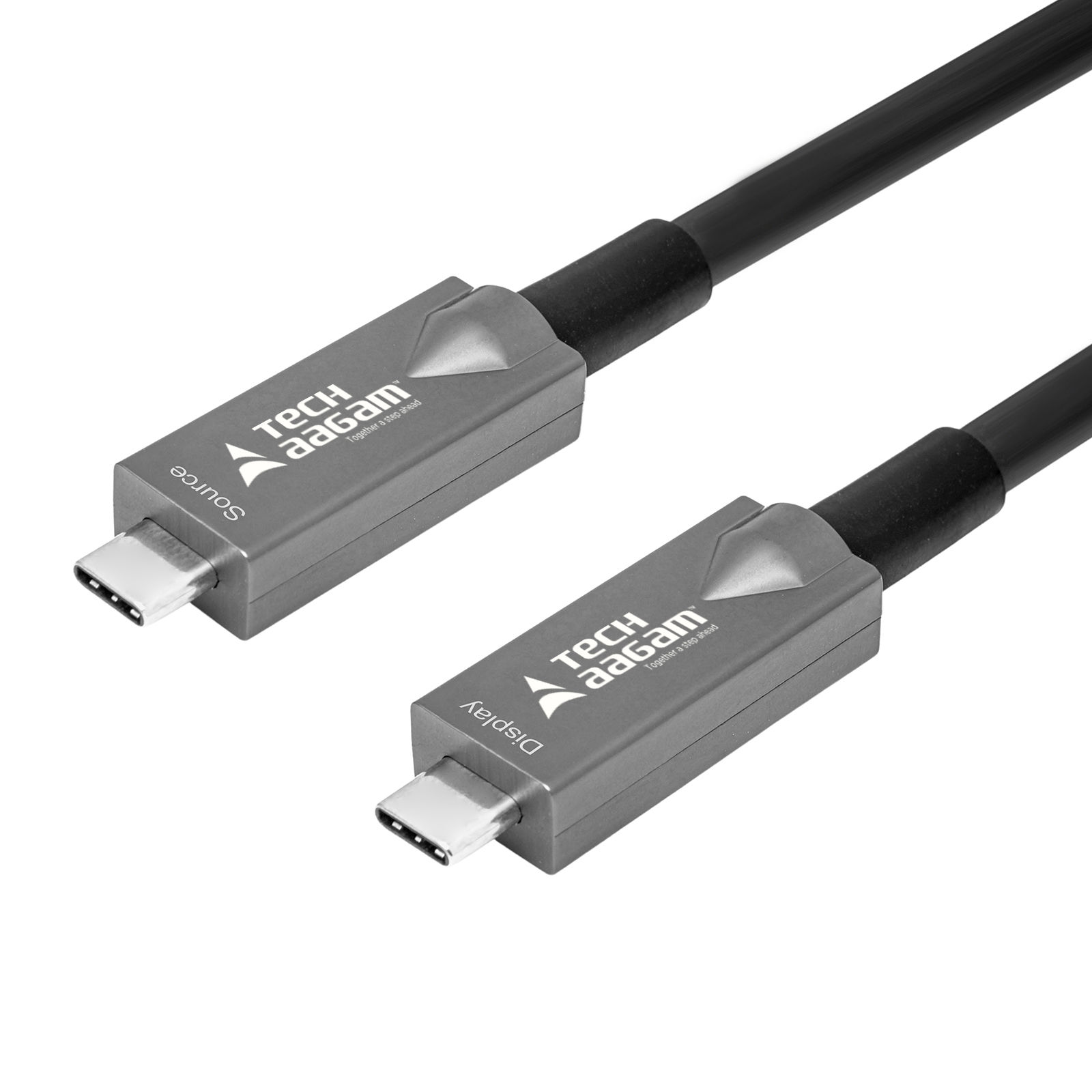

TA-U3D2CC FULL FEATURED USB C TO C CABLE-7.5M, 10M, 15M

TA-U3D2CC FULL FEATURED USB C TO C CABLE-7.5M, 10M, 15M

USB 3.2 Gen2 Hybrid Type-C Full-Featured AOC Cable

The TA-U3D2CC Series is a high-performance USB Type-C Active Optical Cable (AOC) designed for long-distance, high-bandwidth transmission of data, video, audio, and power — all through a single slim cable. Using optical fiber as the primary high-speed transmission medium, this hybrid cable delivers superior signal integrity over longer distances compared to traditional copper cables. It supports USB 3.2 Gen1 (5Gbps), USB 2.0, 2-lane DisplayPort 1.4 (4K@60Hz), and Power Delivery up to 60W, making it an ideal solution for professional AV, conferencing, medical, and digital signage environments. With its lightweight, flexible design and strong resistance to EMI/RFI interference, the TA-CP187 ensures stable and reliable performance even in demanding installations.

Share this product

Datasheet

Parameter
Specification
Series
TA-U3D2CC
Description
USB Type-C to Type-C USB 3.2 Full-Featured Cable (DP 2-Lane)
Bandwidth
U3:5Gbps; U2: 480Mbps; DP1.4 8.1Gbps X 2
Power Delivery
PD3.0, 20V 3A
Power Supply
By Vconn(3.0 V to 5.5V)
Power Consumption (TYP.)
1200mW (5V input)
Cable Outer Diameter
6.5mm
Jacket Outer Material
PVC
Cable Color
Black
Plug & Play
Yes
Available Lengths
5M, 7.5m, 10m, 15m
Operating Temperature
0°C to 50°C
Storage Temperature
-20°C to 70°C
Humidity
5% to 90%
flammability
UL, VW-1
Compliance
CE, RoHS
