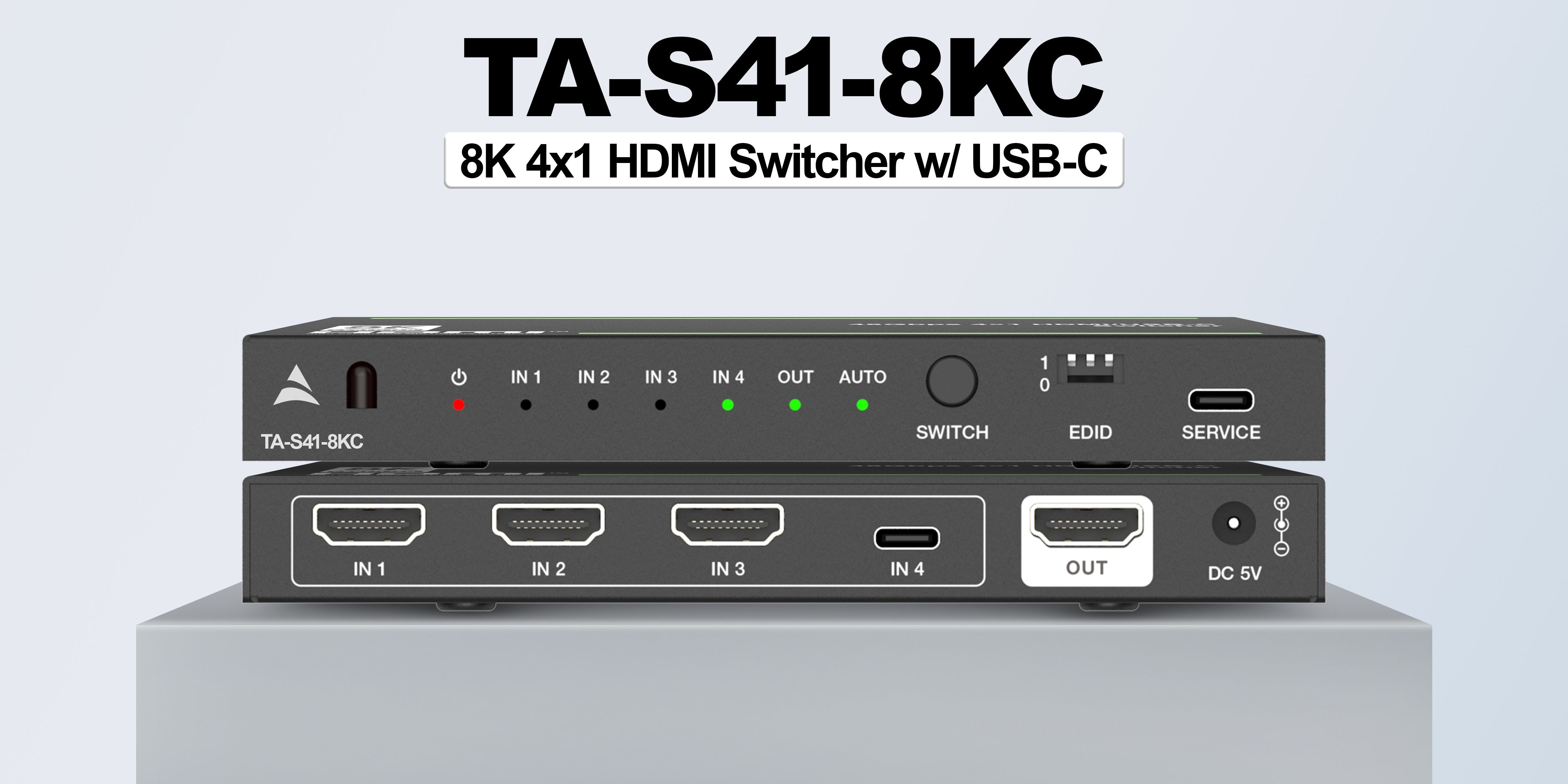

TA-S41-8KC 8K 4x1 HDMI Switcher w/ USB-C
The TA-S41-8KC is a high-performance 48Gbps 4×1 HDMI/USB-C switcher designed for ultra-high-resolution home cinema, gaming, and professional AV applications. Featuring three HDMI 2.1 inputs and one USB-C input, it allows seamless switching between multiple 8K sources to a single HDMI display.
Supporting resolutions up to 8K@60Hz (HDMI) and 8K@30Hz (USB-C), the switcher ensures exceptional video clarity with HDR pass-through, advanced EDID management, and full HDMI 2.1 feature support including VRR, ALLM, QMS, QFT, and SBTM.
Its ultra-slim metal design, automatic input switching, and IR remote control make it ideal for modern AV racks, high-end gaming setups, and premium display environments.
Key Features
- 3× HDMI 2.1 + 1× USB-C input → 1× HDMI output
- Up to 48Gbps HDMI bandwidth (FRL)
- Supports 8K@60Hz 4:2:0 12-bit (HDMI)
- Supports 8K@30Hz 4:2:2 10-bit (USB-C)
- 4K@120Hz support for next-gen gaming
- HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- HDMI 2.1 advanced features: VRR, ALLM, QMS, QFT, SBTM
- LPCM 7.1, Dolby Atmos, DTS:X audio pass-through
- Advanced EDID DIP switch management
- Auto & manual input switching
- IR remote control
- Compact ultra-slim metal chassis
Datasheet
Category | Specification |
Inputs | 3× HDMI Type-A, 1× USB-C |
Output | 1× HDMI Type-A |
HDMI Bandwidth | Up to 48Gbps FRL |
USB-C Bandwidth | Up to 32Gbps |
HDMI Resolution | Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 |
USB-C Resolution | Up to 8K@30Hz 4:2:2 10-bit |
HDMI Compliance | HDMI 2.1 |
HDCP | HDCP 2.3 |
DP (USB-C) | DP 1.4 |
HDR Support | HDR10, HDR10+, Dolby Vision, HLG |
Audio | LPCM, Dolby TrueHD, Atmos, DTS-HD Master, DTS:X |
Control | Front panel button, IR remote |
Power | DC 5V/1A |
Dimensions | 145 × 68 × 18 mm |
Housing | Metal |
Weight | 258g |
Power Supply | Input: AC 100~240V 50/60Hz |
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) | |
Power Consumption | 2.25W (Max) |
Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature | 20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity | 20~90% RH (non-condensing) |
