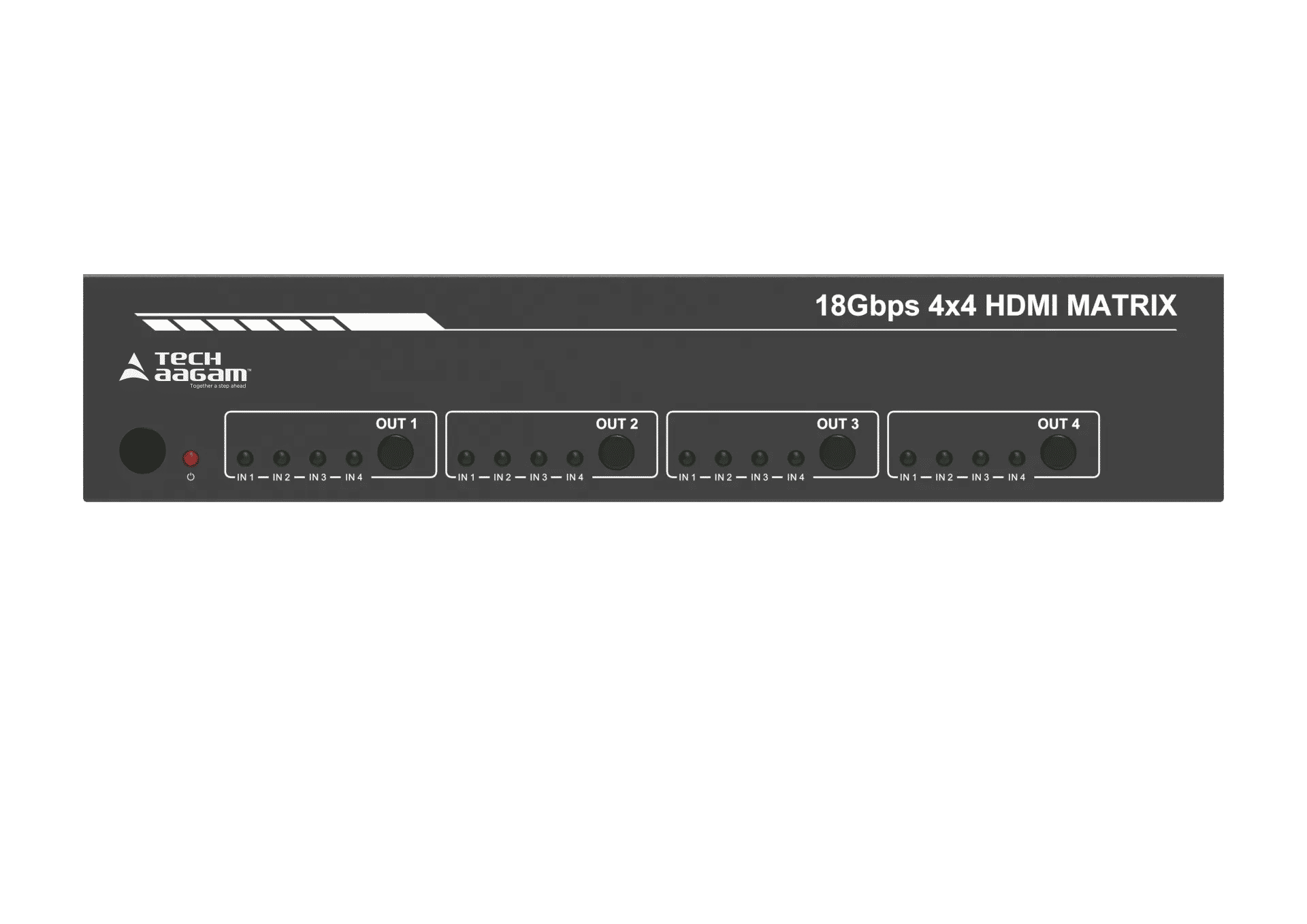

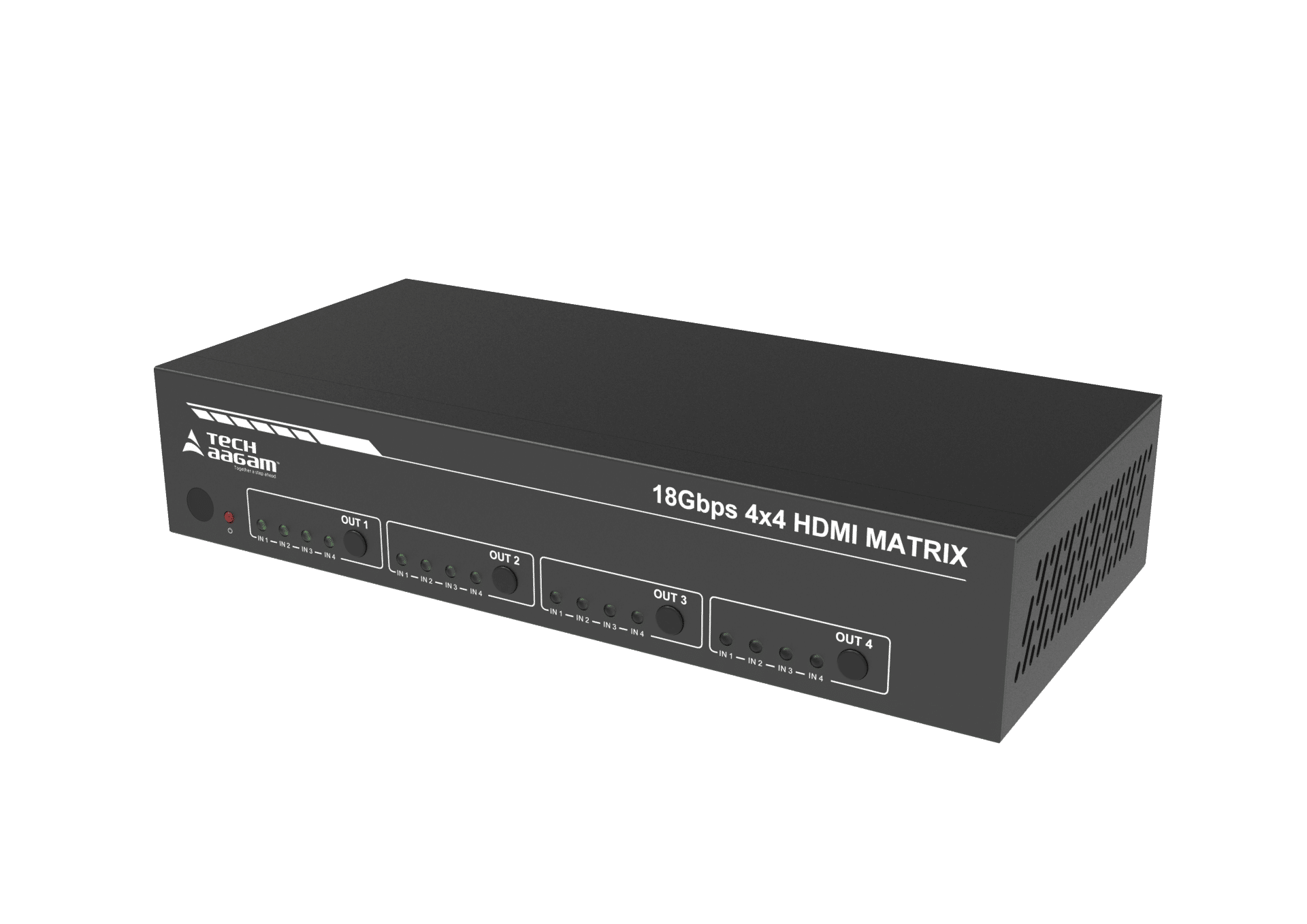

TA-MX44H-4K60-18G-ARC
The TA-MX44H-4K60-18G-ARC is a high-performance 4×4 HDMI matrix switcher designed for professional AV distribution in meeting rooms, control rooms, hospitality, and residential installations. It enables seamless routing of up to four HDMI sources to four independent displays, supporting ultra-high-definition resolutions up to 4K@60Hz (4:4:4) with full 18Gbps bandwidth.
With advanced features like independent output scaling, ARC (Audio Return Channel), and audio de-embedding, this matrix ensures maximum flexibility for modern AV systems. Integrated Web GUI, RS232, IR, and front panel control provide effortless system management and integration with third-party control systems.
Each HDMI output features an independent 4K to 1080p downscaler, enabling mixed-resolution display environments without compromising performance. The matrix also supports audio de-embedding via dedicated analog L/R and coaxial outputs, while the integrated ARC (Audio Return Channel) function allows audio from compatible displays to be routed back through the coaxial output for simplified audio integration.
Designed for professional installations, the TA-MX44H-4K60-18G-ARC offers advanced EDID management, built-in Web GUI, TCP/IP, RS-232, IR remote, and front panel controls, providing flexible system configuration and remote management for demanding AV applications.
Key Features
- 4 HDMI inputs × 4 HDMI outputs
- HDMI 2.0 with 18Gbps bandwidth
- Supports resolutions up to 4K@60Hz (4:4:4)
- HDR10, HDR10+, Dolby Vision and HLG support
- HDCP 2.2 / HDCP 1.4 compliant
- Independent 4K to 1080p downscaling on each output
- Audio de-embedding via analog L/R and coaxial outputs
- ARC (Audio Return Channel) support through coaxial output
- Advanced EDID management for maximum source-display compatibility
- Built-in Web GUI with TCP/IP control
- RS-232, IR remote, and front panel control
- Compact, rack-friendly design for professional AV installations
- Ideal for conference rooms, education, hospitality, digital signage, and control room applications.
Datasheet
Parameter | Specification |
Video Specifications | |
HDMI Standard | HDMI 2.0 |
HDCP Compliance | HDCP 2.2 / 1.4 |
Max Resolution | Up to 4K@60Hz (4:4:4) |
Bandwidth | 18 Gbps |
Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
Color Depth | Up to 12-bit (4K30), 8-bit (4K60 4:4:4) |
HDR Support | HDR10, HDR10+, Dolby Vision, HLG |
3D Support | Yes |
Scaling | Per output (4K → 1080p / Auto / Bypass) |
Audio Specifications | |
HDMI Audio Formats | PCM 2.0 / 5.1 / 7.1, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-HD |
Analog Audio Output | Stereo L/R (3.5mm) |
Digital Audio Output | Coaxial (RCA) |
ARC (Audio Return Channel) | Supported (via coaxial output) |
Audio De-embedding | Yes |
Input & Output | |
HDMI Inputs | 4 × HDMI Type-A |
HDMI Outputs | 4 × HDMI Type-A |
Analog Audio Outputs | 4 × L/R (3.5mm) |
Digital Audio Outputs | 4 × Coaxial (RCA) |
Control & Connectivity | |
Control Methods | Front Panel, IR Remote, RS232, TCP/IP (Web GUI) |
Ethernet | 1 × RJ45 |
RS232 | 1 × 3-pin Phoenix |
IR | R Receiver + IR EXT port |
EDID Management | Advanced EDID support |
Presets | Up to 4 presets |
Performance & Features | |
Switching | Matrix (any input to any output) |
Output Scaling | Independent per output |
CEC Control | Supported |
ARC Function | Yes |
Cable Recommendation | Premium High Speed HDMI |
Electrical & Environmental | |
Power Supply | DC 12V / 2.5A |
Power Consumption | 10W (Max), 1.56W (Standby) |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 60°C |
Humidity | 20% – 90% (non-condensing) |
ESD Protection | ±8kV air / ±4kV contact |
Mechanical | |
Dimensions (W×D×H) | 220 × 105 × 44 mm |
Weight | 792 g |
Enclosure | Metal |
Color | Black |
Compliances | CE, FCC, ROHS |
