Datasheet
Parameter | Specification |
Video Specifications | |
HDCP Compliance | HDCP 2.2 and HDCP 1.x |
DVI Compliance | DVI 1.0 |
Video Bandwidth | 594MHz / 18Gbps |
HDMI Video Resolution | Up to 4K2K@50/60Hz YCbCr 4:4:4 |
High Dynamic Range | HDR,HDR 10+,HLD,DOLBY VISION |
Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
Color Depth | 8-bit, 10-bit, 12-bit |
Audio Specifications | |
HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD |
L/R Audio Formats | Analog stereo PCM 2.0 |
Optical Audio Formats | LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
Input & Output | |

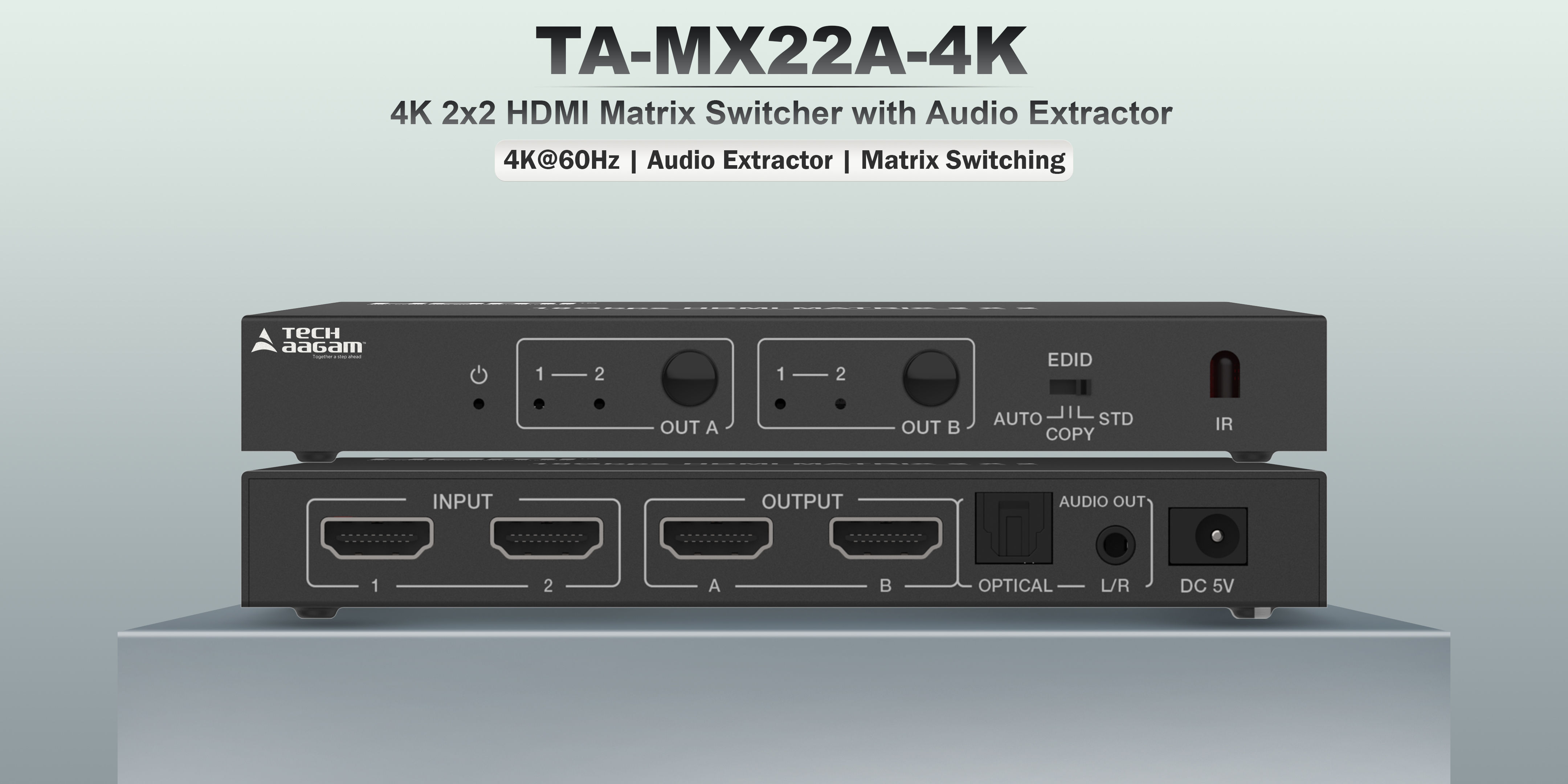

Input ports | 2×HDMI Type A [19-pin female] 1×IR Receiver Window |
Output ports | 2×HDMI Type A [19-pin female] 1×L/R [3.5mm Stereo Mini-jack] 1×OPTICAL OUT [Optical jack] |
Mechanical | |
Housing | Metal Enclosure |
Color | Black |
Dimensions | 144mm (W)×59.5mm (D)×18mm (H) |
Weight | 208g |
Power Supply | Input: AC100~240V 50/60Hz Output: DC5V/1A (US/EU standard, CE/FCC/UL certified) |
Power Consumption | 2.7W |
Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity | 20~90% RH (non-condensing) |
Compliances | CE, FCC, ROHS |
