TA-MP15B

TA-MP15B

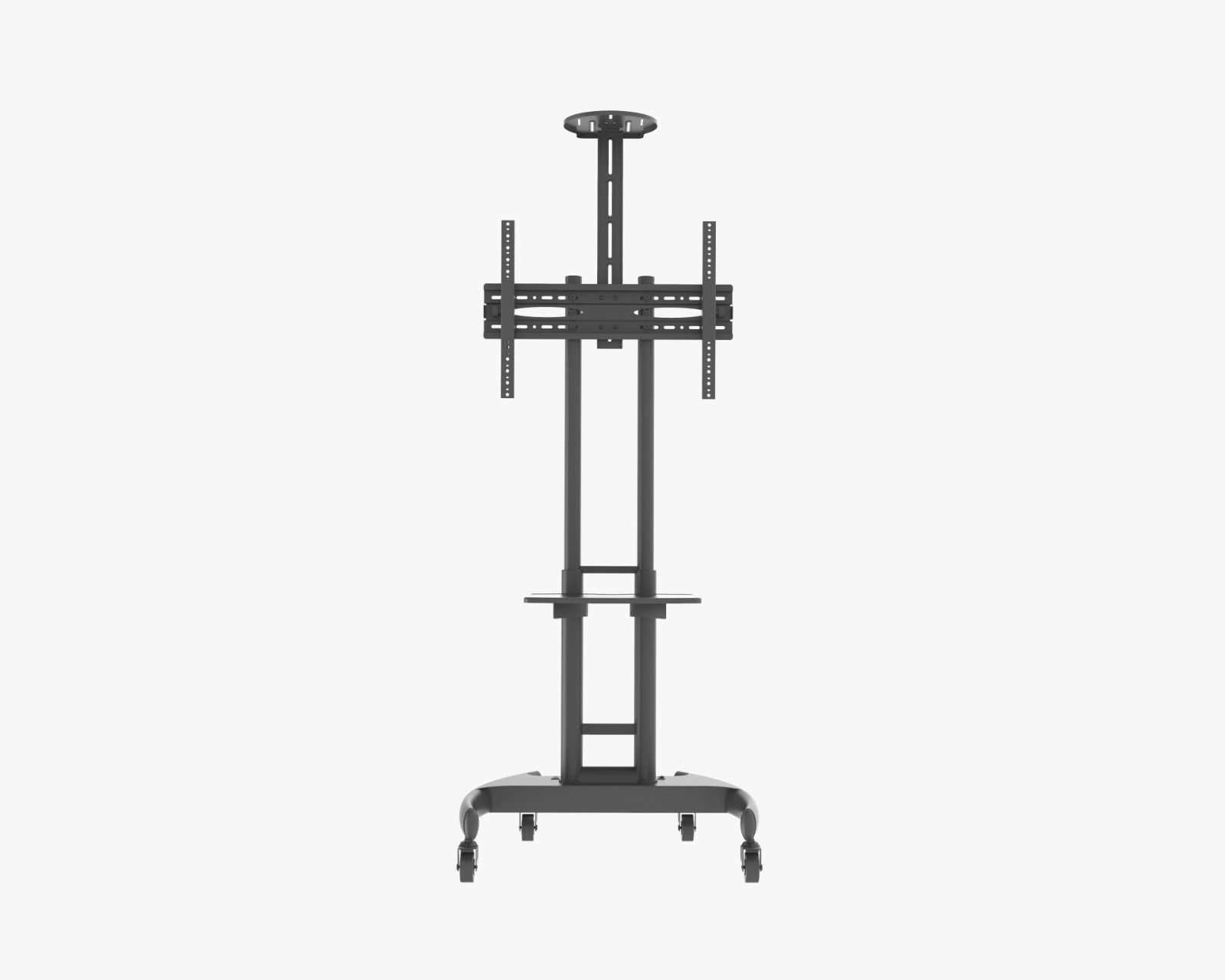

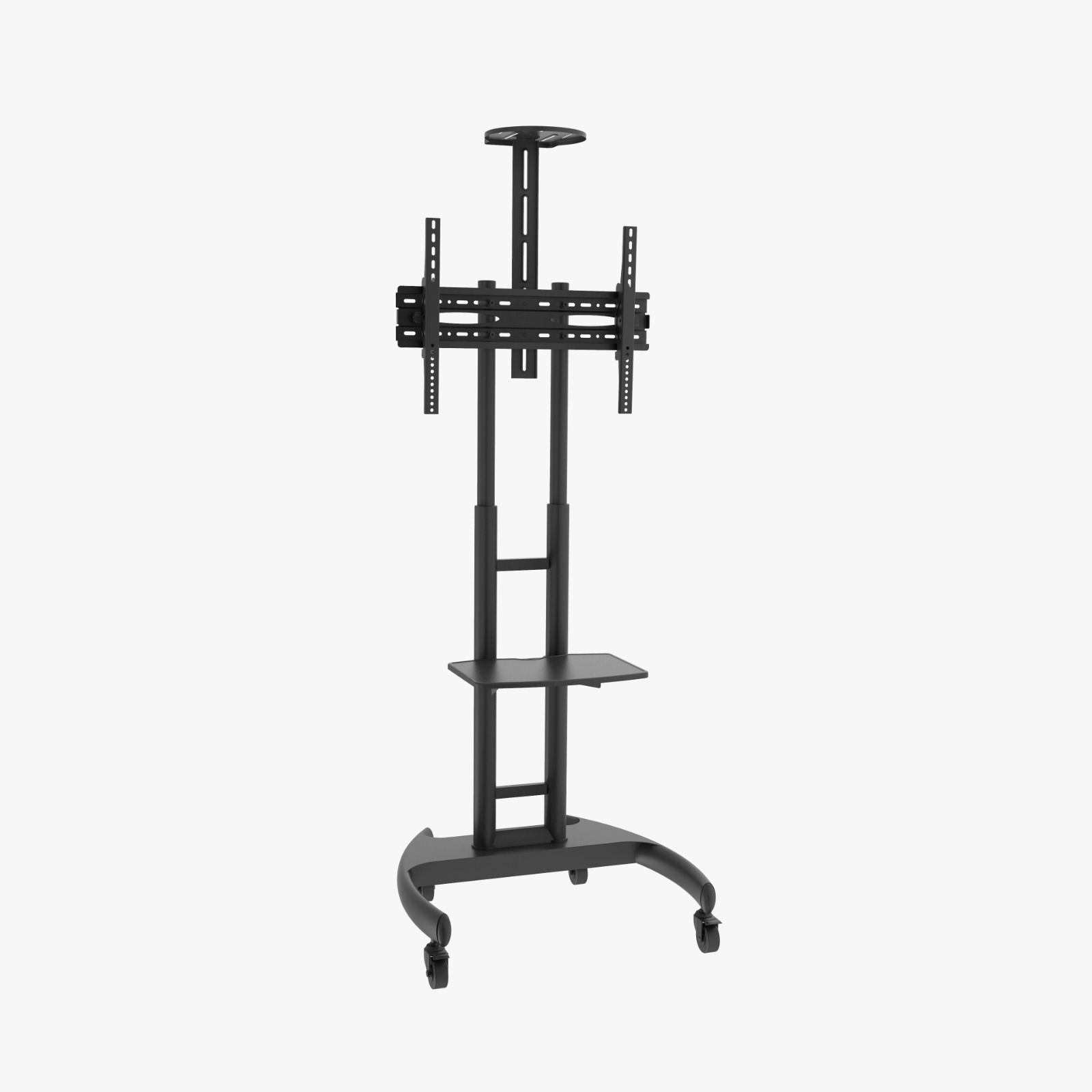

TA-MP15B Heavy-Duty Dual Pole TV Trolley is a professional mobile display mounting solution designed for 40" to 70" displays with a maximum load capacity of 50 kg. Its robust dual-pole construction provides enhanced stability and support for commercial and professional AV installations.

The trolley supports display mounting patterns up to VESA 600 × 400 mm and features adjustable mounting positions for flexible display installation. The integrated adjustment mechanism allows the display to be tilted by ±15°, helping users achieve a suitable viewing angle.

A dedicated equipment shelf provides convenient space for AV equipment such as media players, conferencing devices, laptops, or other accessories. The trolley also incorporates a camera mounting provision, making it particularly suitable for video conferencing and collaboration environments.

The mobile caster-wheel base allows the complete display setup to be repositioned easily when required. With its combination of height adjustment, display tilt, equipment storage, and camera support, the TA-MP15B is ideal for conference rooms, meeting rooms, classrooms, training rooms, corporate offices, exhibitions, and professional video conferencing applications.

Share this product

Key Features

  • Supports 40"–70" displays
  • Maximum load capacity: 50 kg
  • Maximum VESA: 600 × 400 mm
  • Dual-pole heavy-duty construction
  • Adjustable display mounting height
  • ±15° tilt adjustment
  • Integrated equipment shelf
  • Camera mounting provision
  • Mobile trolley design with caster wheels
  • Stable wide base for professional installations
  • Suitable for meeting rooms and video conferencing


Datasheet

Parameter
Specification
Model
TA-MP15B
Product Type
Heavy-Duty Dual Pole TV Trolley
Display Size
40"–70"
Maximum Load Capacity
50 kg
Maximum VESA
600 × 400 mm
Horizontal VESA Adjustment
100–600 mm
Vertical VESA Adjustment
100–400 mm
Tilt Adjustment
±15°
Display Mount Width
680 mm
Equipment Shelf
Included
Shelf Size
Approx. 450 × 300 mm
Base Width
720 mm
Base Length
700 mm
Height Adjustment
Approx. 1165–1465 mm / 1375–1675 mm depending on mounting configuration
Overall Height
Up to 2000 mm
Mobility
Caster wheels
Construction
Heavy-duty structure
Camera Mount
Supported
