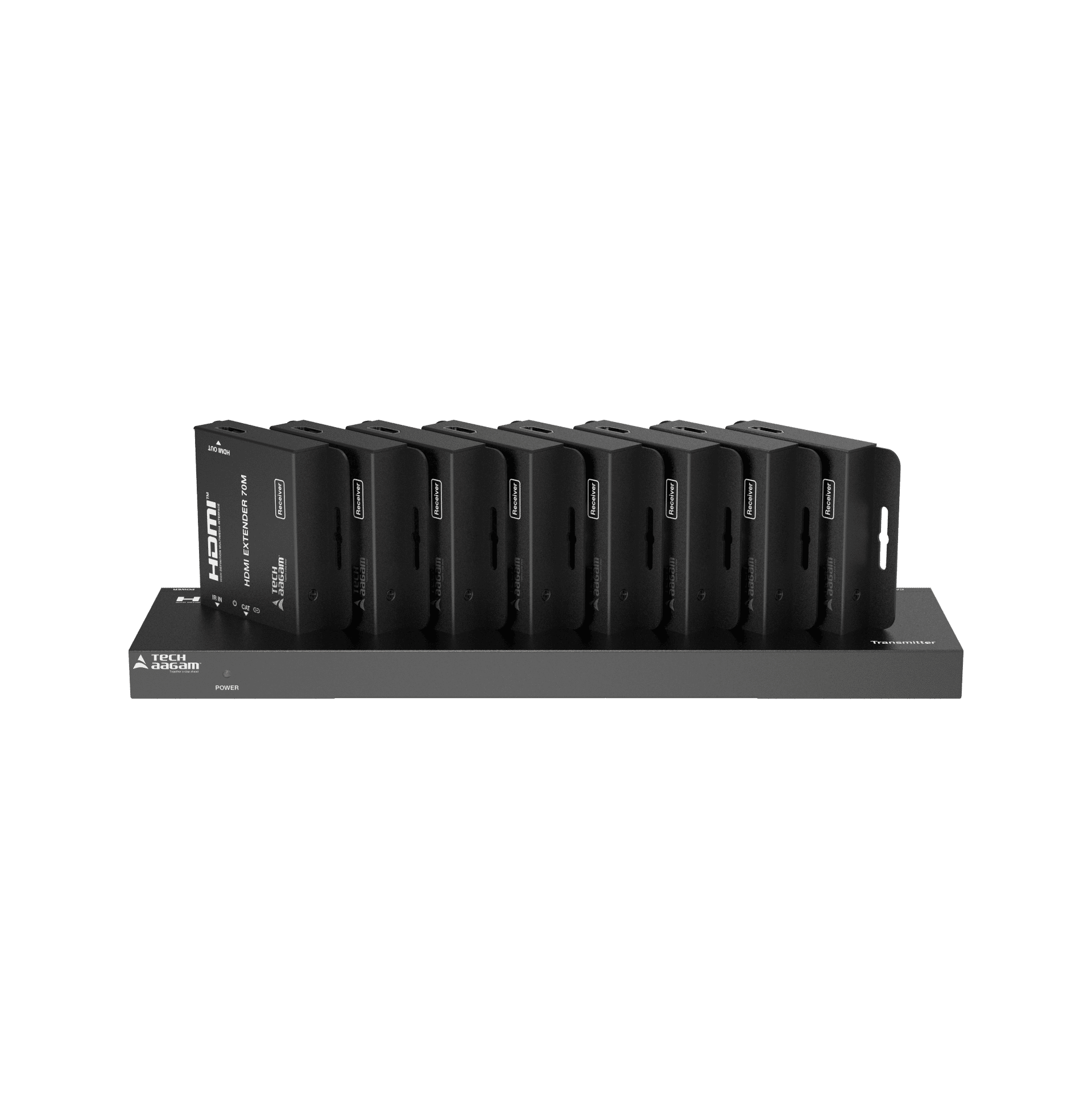

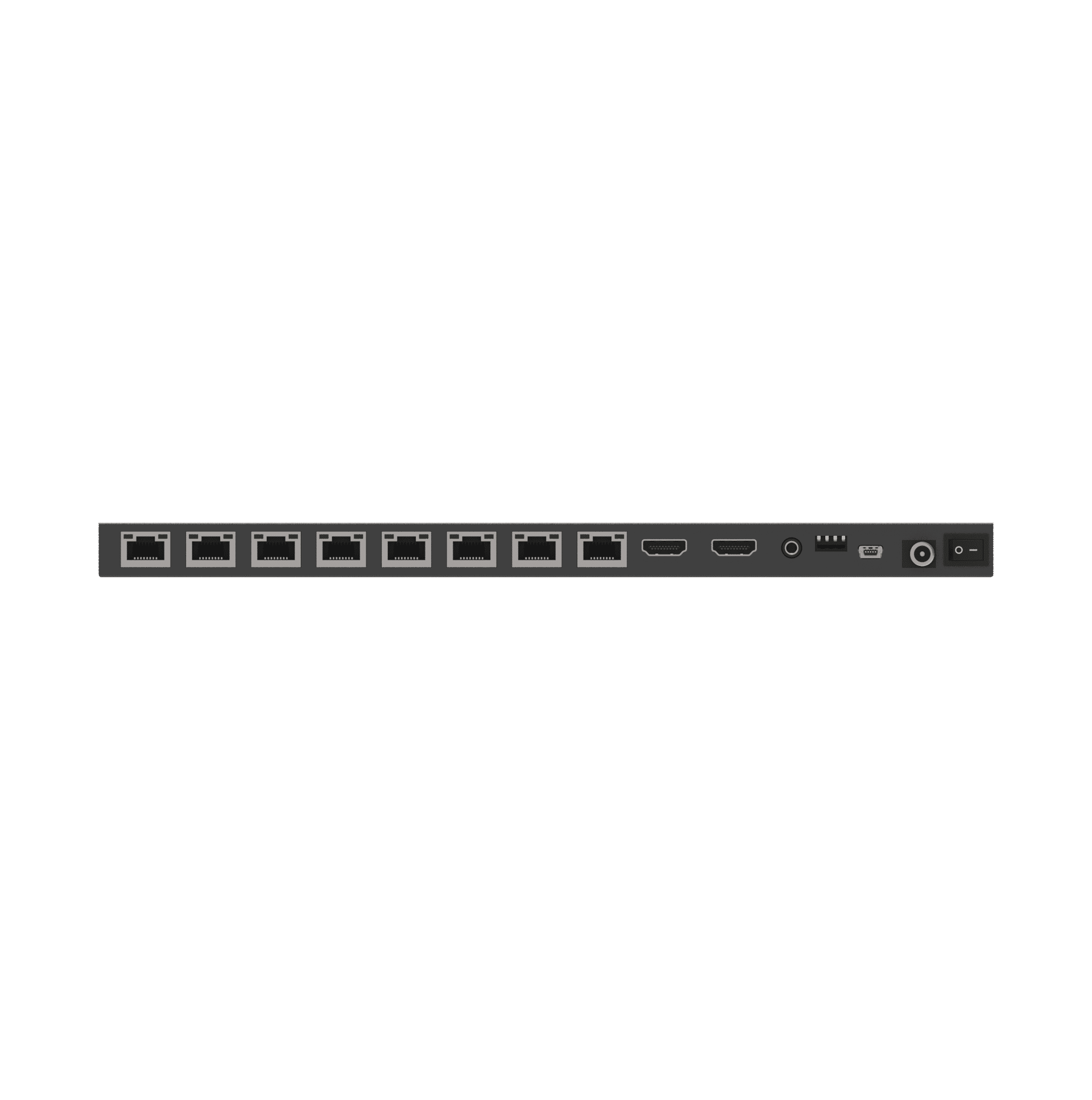

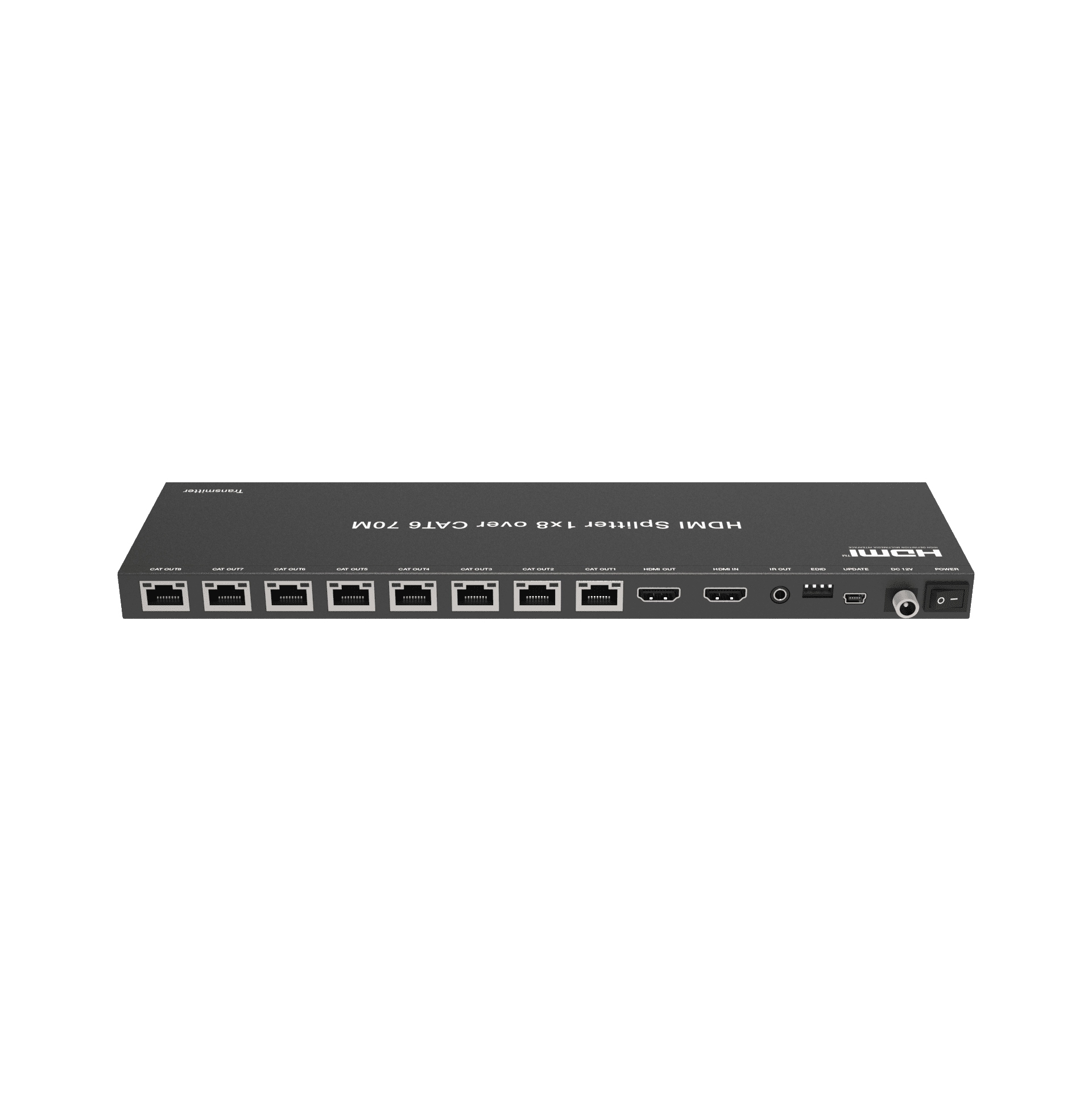

The TA-HLS18E70-4K is a professional HDMI 1×8 splitter over CAT6 extender designed to distribute a single HDMI source to up to eight remote displays. The transmitter provides 1 HDMI input, 1 HDMI loop output and 8 CAT6 outputs, allowing HDMI signals to be extended to multiple displays over standard CAT6 cabling.

The system supports video resolutions up to 4K×2K@30Hz (4:4:4) and can transmit signals up to 40 meters at 4K@30Hz or 70 meters at 1080p@60Hz through a single CAT6 cable.

For system integration, the TA-HLS18E70-4K supports one-way IR signal pass-through, allowing remote control signals to be transmitted between the receiver and the source device. It also features advanced EDID management and 12V Power over Cable (PoC) from the transmitter to the receivers, reducing the need for separate power supplies at the receiver side.

The system is suitable for commercial AV installations, meeting rooms, classrooms, digital signage, retail displays, control rooms and multi-display environments.
