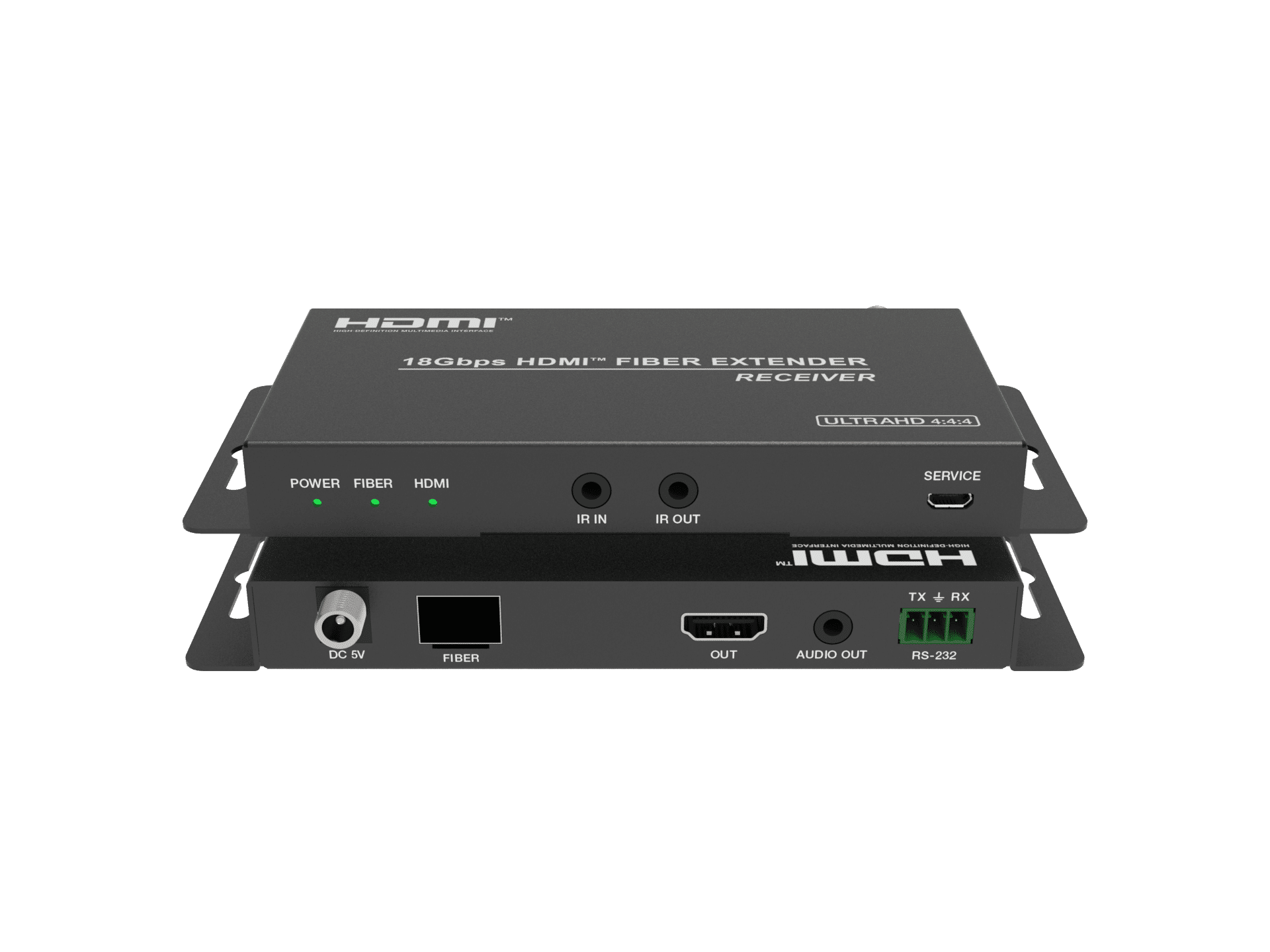

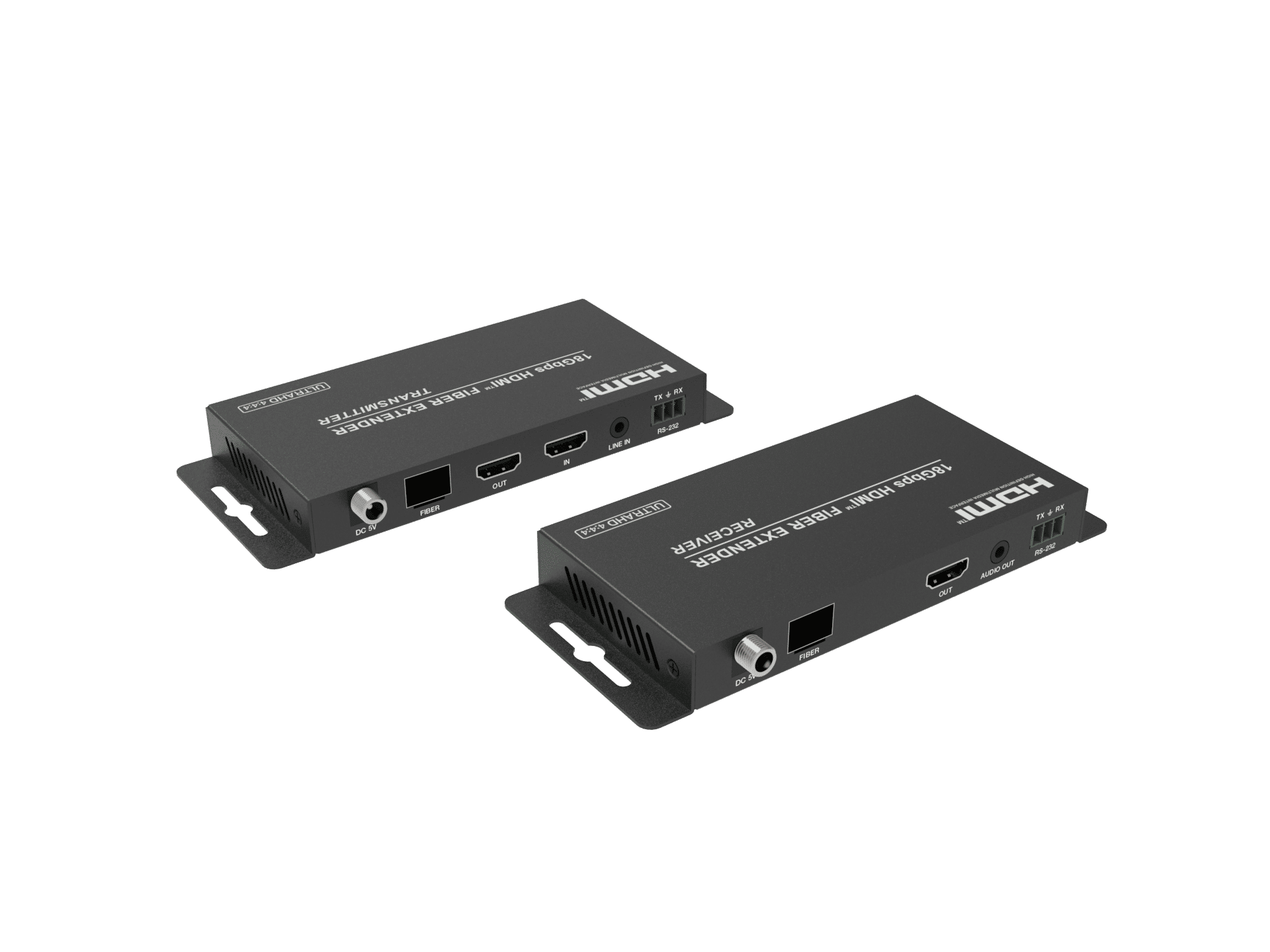

TA-HDMIEXT-F1000P
The TA-HDMIEXT-F1000P extends HDMI signals over a single optical fiber cable for distances up to 10 kilometers, making it the perfect solution for professional AV applications requiring ultra-long-distance transmission.
Supporting 18Gbps bandwidth, 4K@60Hz 4:4:4, HDR, HDCP 2.2, IR pass-through, RS-232 control, and audio extraction, this extender delivers exceptional video quality with zero signal degradation. Unlike copper cabling, fiber optic transmission is immune to EMI/RFI interference, ensuring stable performance in industrial, commercial, and mission-critical environments.
Designed with professional installers in mind, the TA-HDMIEXT-F1000P offers Plug & Play operation, advanced EDID management, and a robust metal enclosure for reliable 24/7 operation.
Key Features
- Extends 4K HDMI signals up to 10KM over a single optical fiber cable
- Supports 18Gbps bandwidth with 4K@60Hz 4:4:4 Ultra HD video
- Delivers lossless video, audio, and control signal transmission
- Supports HDR, HDCP 2.2, and deep color formats
- HDMI Loop Out for local display monitoring at the transmitter
- Bi-directional IR pass-through for remote source control
- RS-232 pass-through for professional device control and automation
- Built-in EDID management for maximum display compatibility
- Supports Audio Embedding & Audio De-Embedding (Line In / Audio Out)
- Immune to EMI/RFI interference with fiber optic transmission
- Plug & Play installation with no software or drivers required
- Durable metal enclosure for continuous professional operation
Datasheet
Parameter | Specification |
Video Resolution | Up to 4K@60Hz 4:4:4 |
Bandwidth | 18Gbps |
Transmission Distance | Up to 10KM |
Transmission Medium | Single Optical Fiber |
HDMI Loop Out | Yes |
IR Extension | Bi-directional |
RS-232 | Yes |
Audio Support | HDMI Audio + Audio Embed/De-Embed |
EDID Management | Yes |
HDCP | HDCP 2.2 |
HDR Support | Yes |
Installation | Plug & Play |
Diagram
