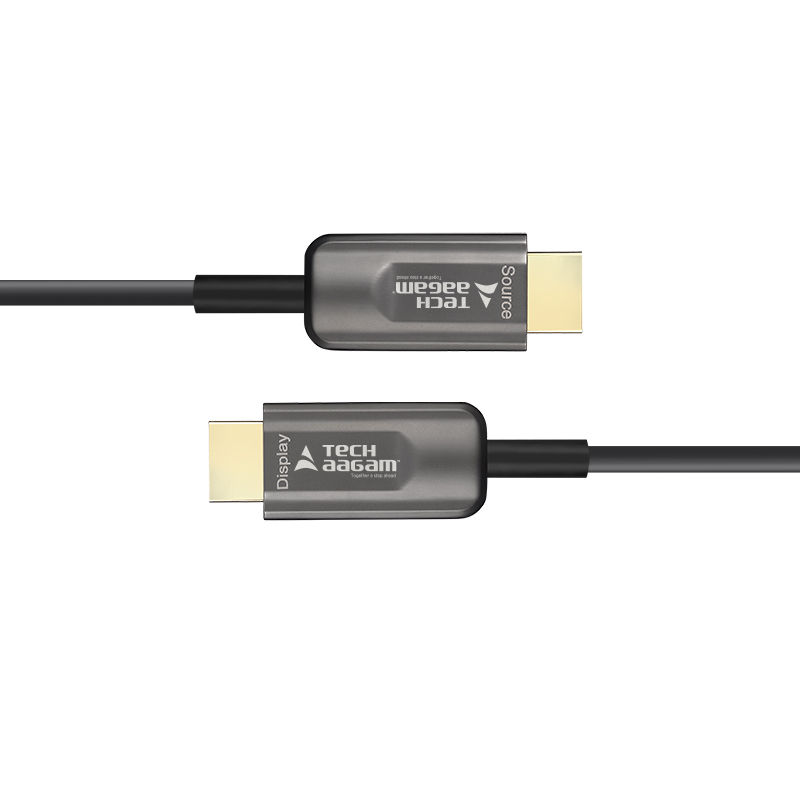

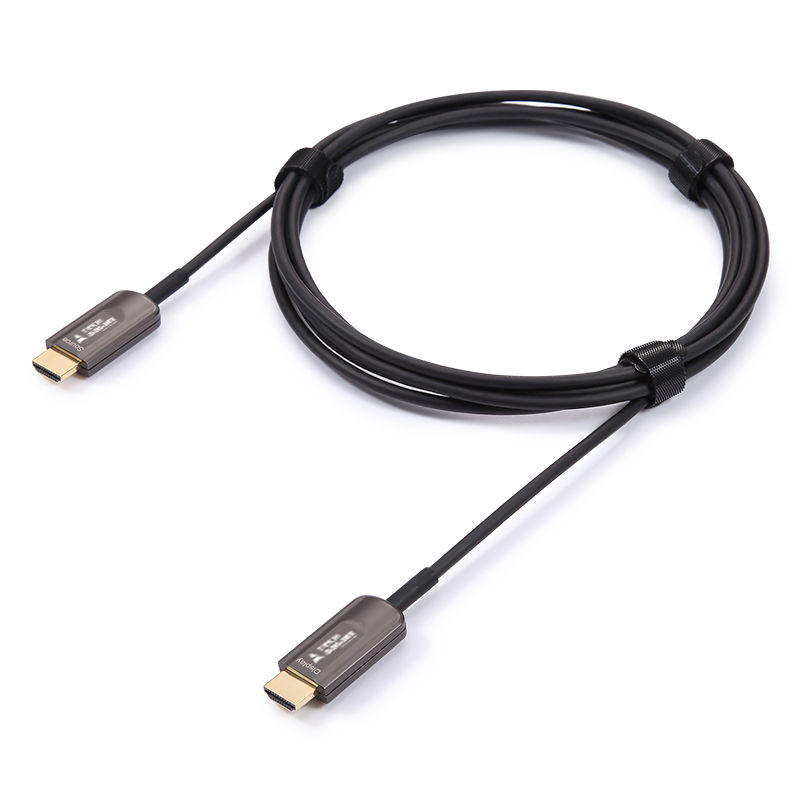

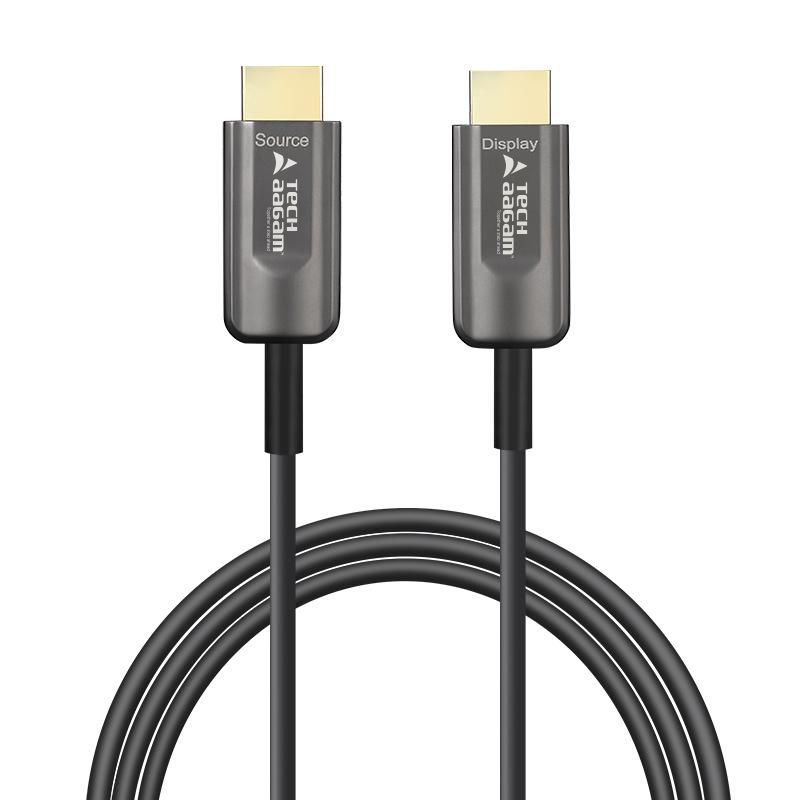

TA-H2HAOC-C8K CORE HDMI 2.1 CABLES

HDMI 2.1 8K A-A Active Optical Cable (AOC)

The TA-H2HAOC-C8K Series HDMI 2.1 Active Optical Cable (AOC) is a high-performance long-distance HDMI interconnection solution designed for professional AV, digital signage, broadcast, and high-resolution home entertainment applications.

Engineered with advanced hybrid optical technology, this cable delivers the full 48Gbps bandwidth (12Gbps × 4 channels) required for HDMI 2.1, ensuring uncompromised signal integrity over extended distances of up to 100 meters. The lightweight, ultra-flexible construction with a small bending radius (45mm) makes it ideal for complex installations where traditional copper cables fall short.

With an embedded optical engine, the TA-MC40 Series supports ultra-high resolutions up to 8K@60Hz and 4K@120Hz, while remaining fully backward compatible with HDMI 2.0 and HDMI 1.4 devices. It operates on a plug-and-play basis with no external power required, making installation simple and reliable.

Key Features

• HDMI 2.1 compliant – up to 48Gbps bandwidth
• Supports 8K@60Hz and 4K@120Hz
• HDCP 2.3 compliant
• Dynamic HDR, VRR, QMS, QFT, ALLM, DSC supported
• eARC support (up to 20m)
• Hybrid optical design (4x OM3 fiber + 7x OFC copper wires)
• Self-detecting EDID management
• Plug & Play – no external power supply required
• Zero signal loss over long distances
• Available in lengths from 10m to 100m (custom lengths available)

Ordering Options

Available in multiple lengths:

10m | 15m | 20m |

Part numbers follow the format:
TA-H2HAOC-C8K
