TA-USB3EXT-100
USB 3.0 Extender (100m over CAT6a)

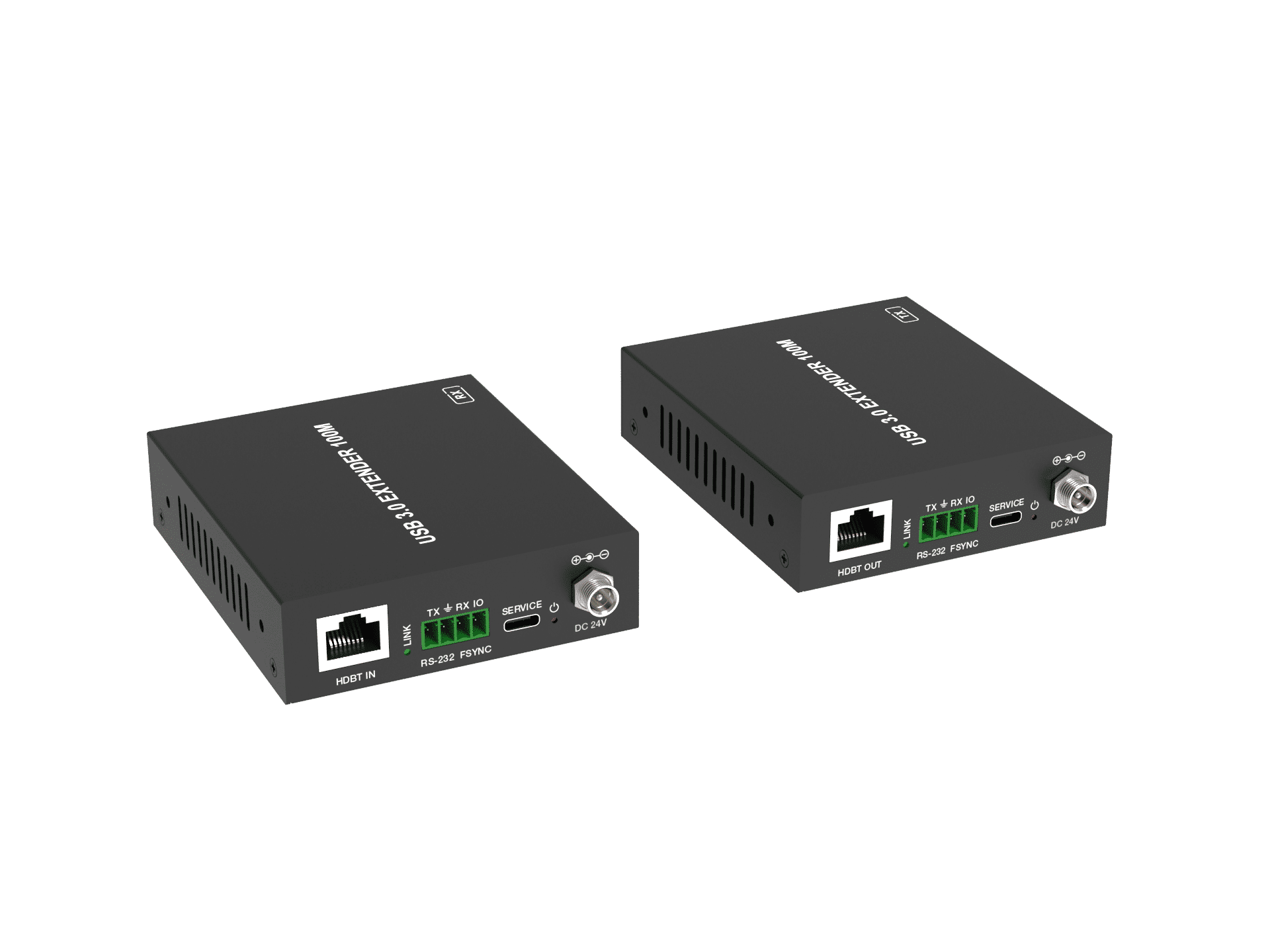

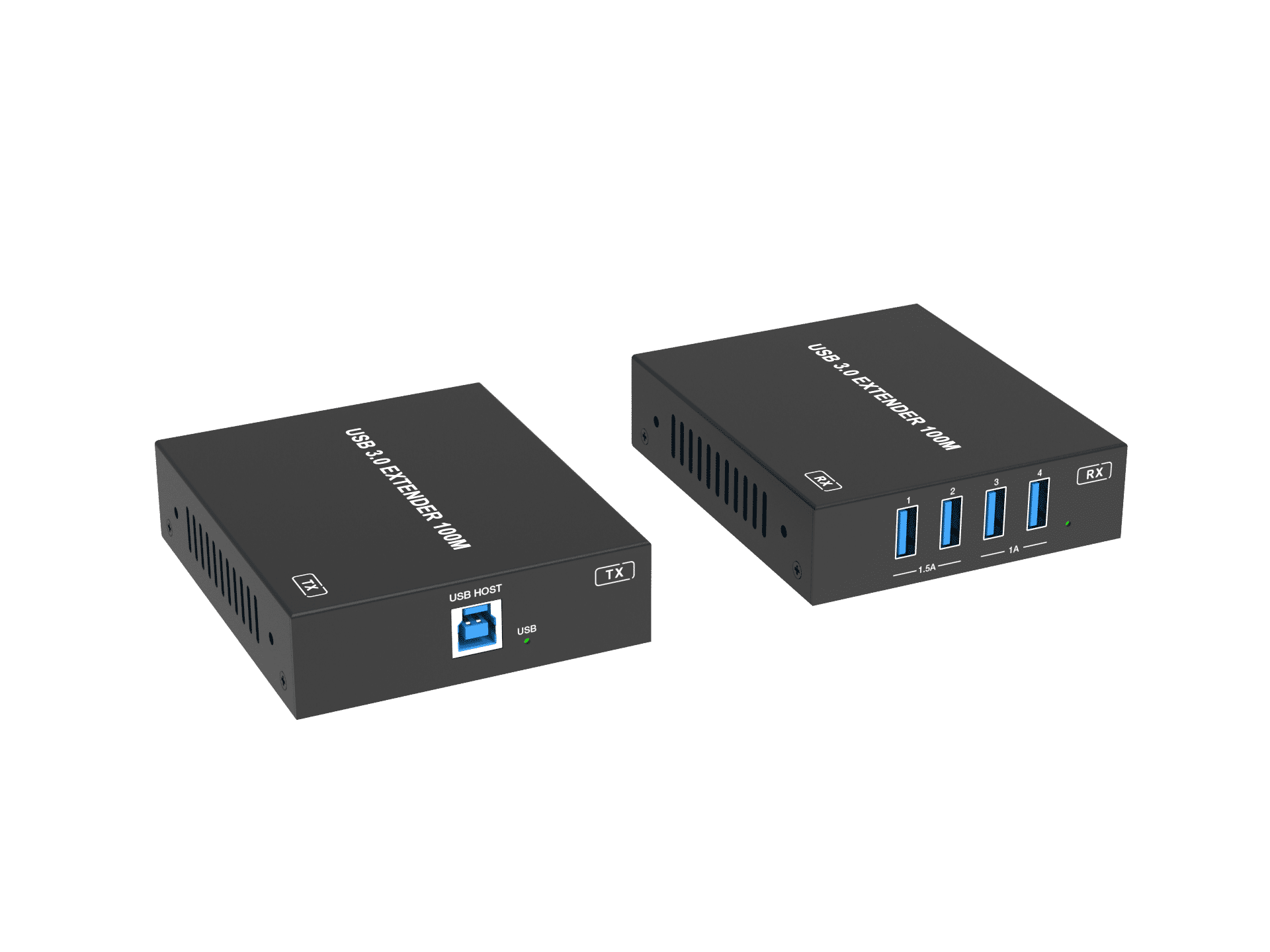

TA-USB3EXT-100 is a professional USB 3.0 extender designed to transmit high-speed USB signals up to 100 meters (328ft) over a single CAT6a cable. Engineered for reliability and performance, it enables seamless long-distance connectivity between a host PC and multiple USB devices—ideal for conference rooms, industrial environments, medical applications, and control systems.

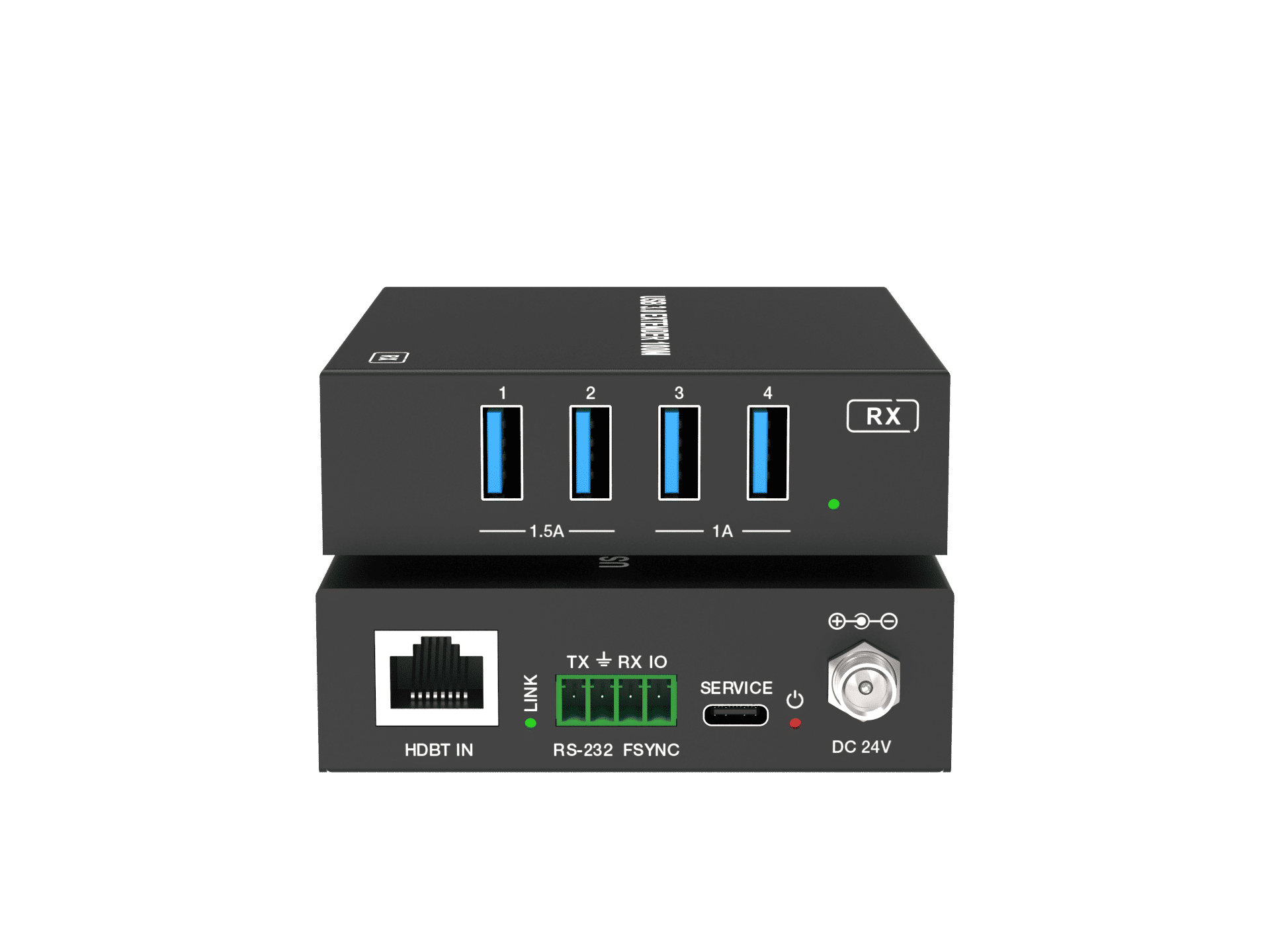

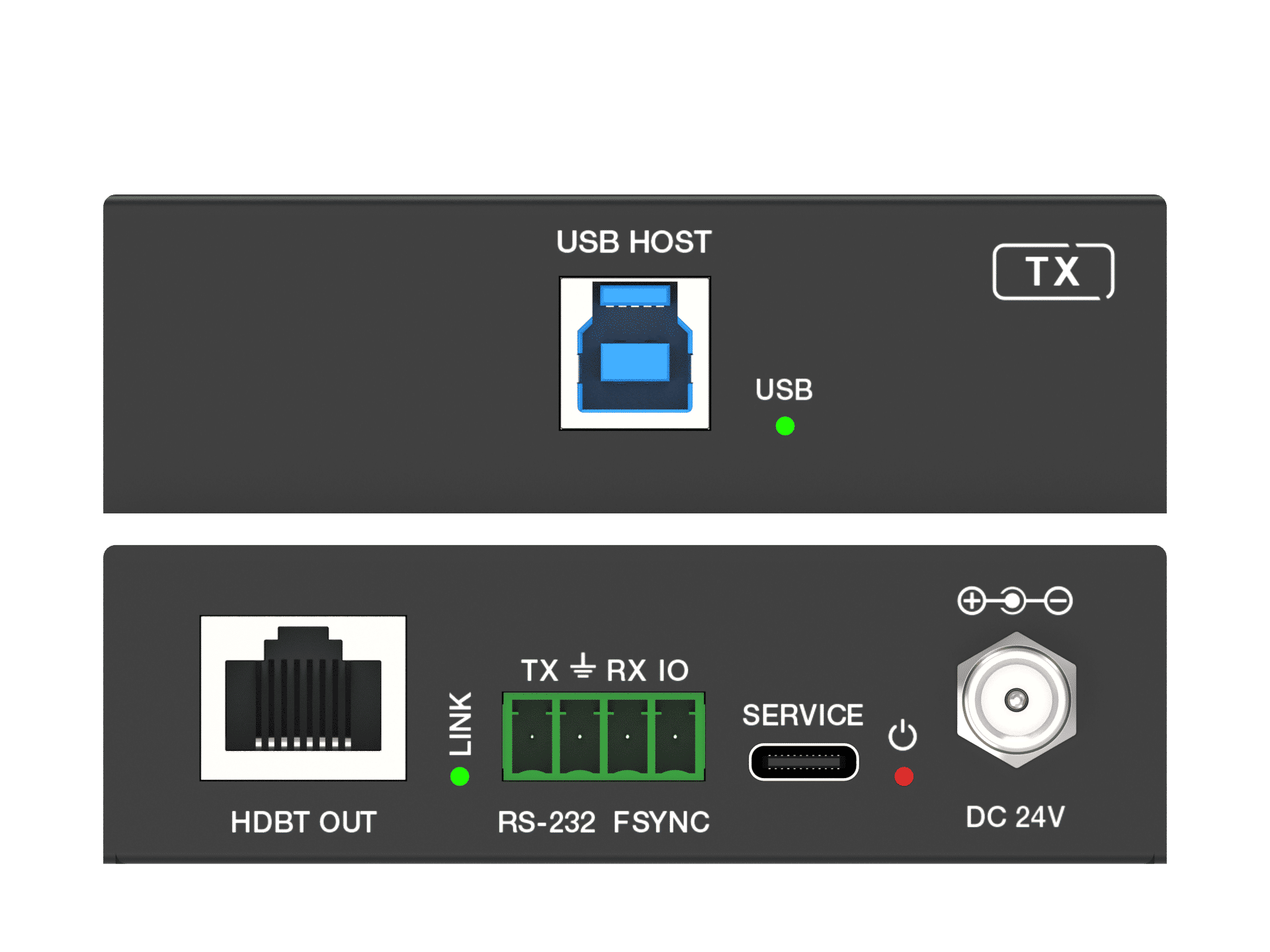

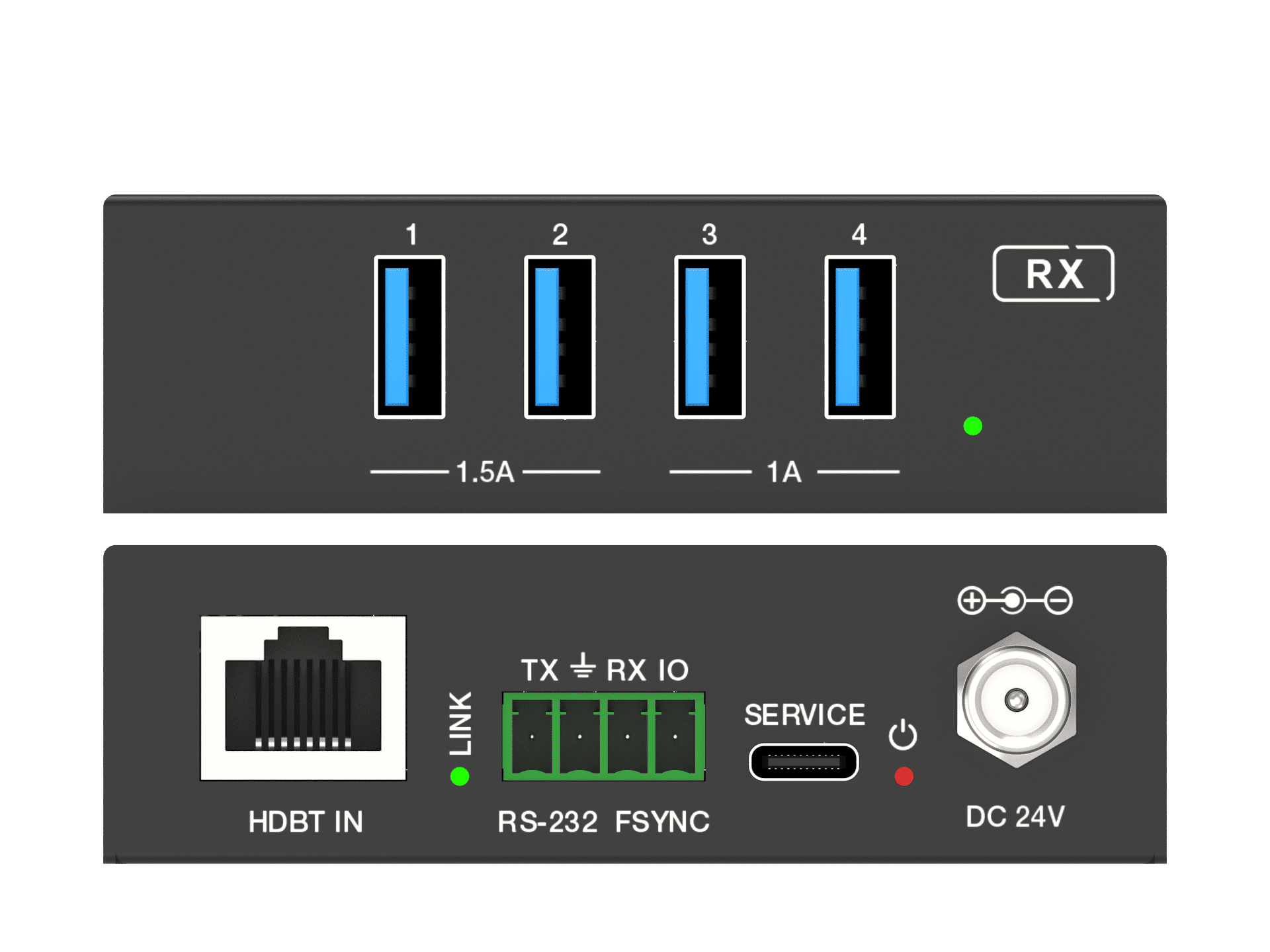

The transmitter features a USB-B host input, while the receiver provides four USB 3.0 Type-A outputs, supporting high-speed data transfer up to 5Gbps. With bi-directional 24V PoC (Power over Cable), only one power supply is required, simplifying installation and reducing cable clutter.
Key Features
- Extends USB 3.0 signals up to 100m over CAT6a (F/FTP)
- Supports data transfer rates up to 5Gbps
- Backward compatible with USB 2.0 and 1.1
- Four USB device ports on receiver
- USB 1 & 2: 5V/1.5A
- USB 3 & 4: 5V/1A
- Bi-directional 24V PoC (Power over Cable)
- RS-232 pass-through for control integration
- FSYNC GPIO pass-through (ideal for industrial camera synchronization)
- Plug & Play – No driver required
- Metal enclosure design for durability
Datasheet
Category | Specification |
Product Type | USB 3.0 Extender (Transmitter + Receiver) |
USB Standard | USB 3.0 (USB 3.2 Gen 1) |
Data Transfer Rate | Up to 5Gbps |
Transmission Distance | Up to 100m (328ft) over CAT6a (F/FTP) |
Input (Transmitter) | 1 × USB-B (Host) |
Output (Receiver) | 4 × USB-A (Device Ports) |
USB Power Output (RX) | USB 1 & 2: 5V/1.5A |
USB 3 & 4: 5V/1A | |
HDBT Port | 1 × RJ45 (TX), 1 × RJ45 (RX) |
Control Ports | RS-232 (3-pin Phoenix), FSYNC GPIO (3.5mm Phoenix) |
Firmware Port | USB-C (Service Port) |
Power Supply | DC 24V / 2A |
PoC (Power over Cable) | Bi-directional 24V PoC (Max 40W) |
ESD Protection | ±8kV (Air), ±4kV (Contact) |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 60°C |
Operating Humidity | 20%–80% RH (Non-condensing) |
Storage Humidity | 10%–90% RH (Non-condensing) |
Enclosure | Metal |
Color | Black |
Dimensions (Each Unit) | 85mm (W) × 100mm (D) × 25.5mm (H) |
Weight | TX: 253g / RX: 260g |
