Bring Collaboration Spaces to the Next Level

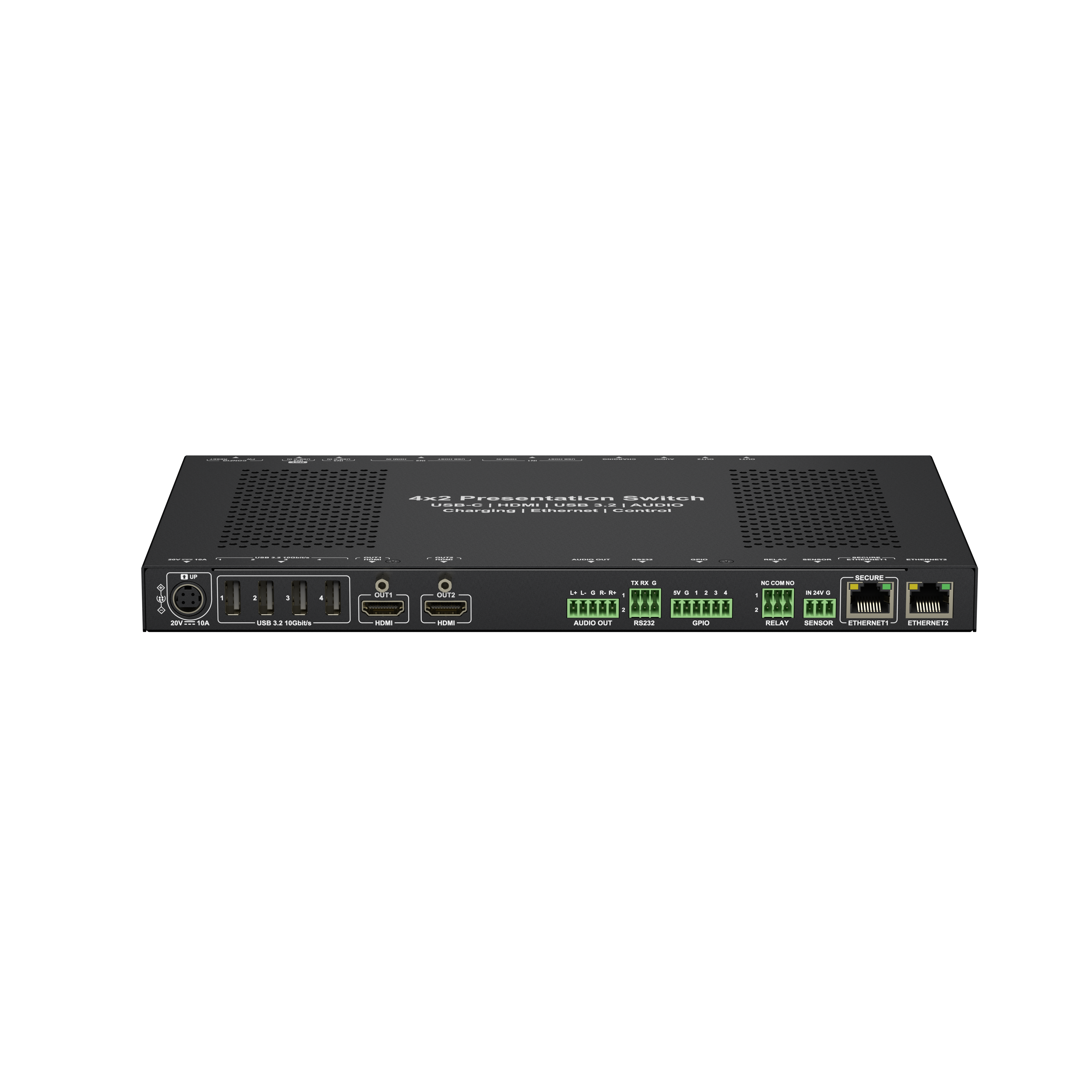

UNITY™ UC MATRIX TA-HUS42M is a professional 4×2 matrix conference presentation switcher designed for advanced meeting rooms and hybrid collaboration environments. By integrating video, USB, audio, control, and Ethernet switching into a single platform, it simplifies system design while delivering enterprise-grade performance and flexibility.

True 4K60 & 5K Ultrawide Performance

Supporting resolutions up to 5120×2160@30Hz and 5120×1440@60Hz, the UNITY UC MATRIX is built for modern ultrawide and super-wide display environments. This enables enhanced workspace layouts, improved data visualization, and optimized collaboration formats such as dual-screen conferencing and extended desktop workflows.

4×2 True Matrix Switching Architecture

Unlike traditional switchers, the MATRIX platform allows independent routing of any input to either output. This enables flexible dual-screen presentation scenarios, collaborative side-by-side content display, and advanced control room layouts without signal limitation.

High-Performance Video & USB — Synchronized or Independent

The system intelligently routes USB peripherals together with video, ensuring conferencing devices follow the selected host. Independent USB switching modes allow integrators to configure advanced workflows for complex meeting spaces.

Four USB 3.2 device ports support up to 10Gbps data rates for professional cameras, speakerphones, audio bars, and USB peripherals

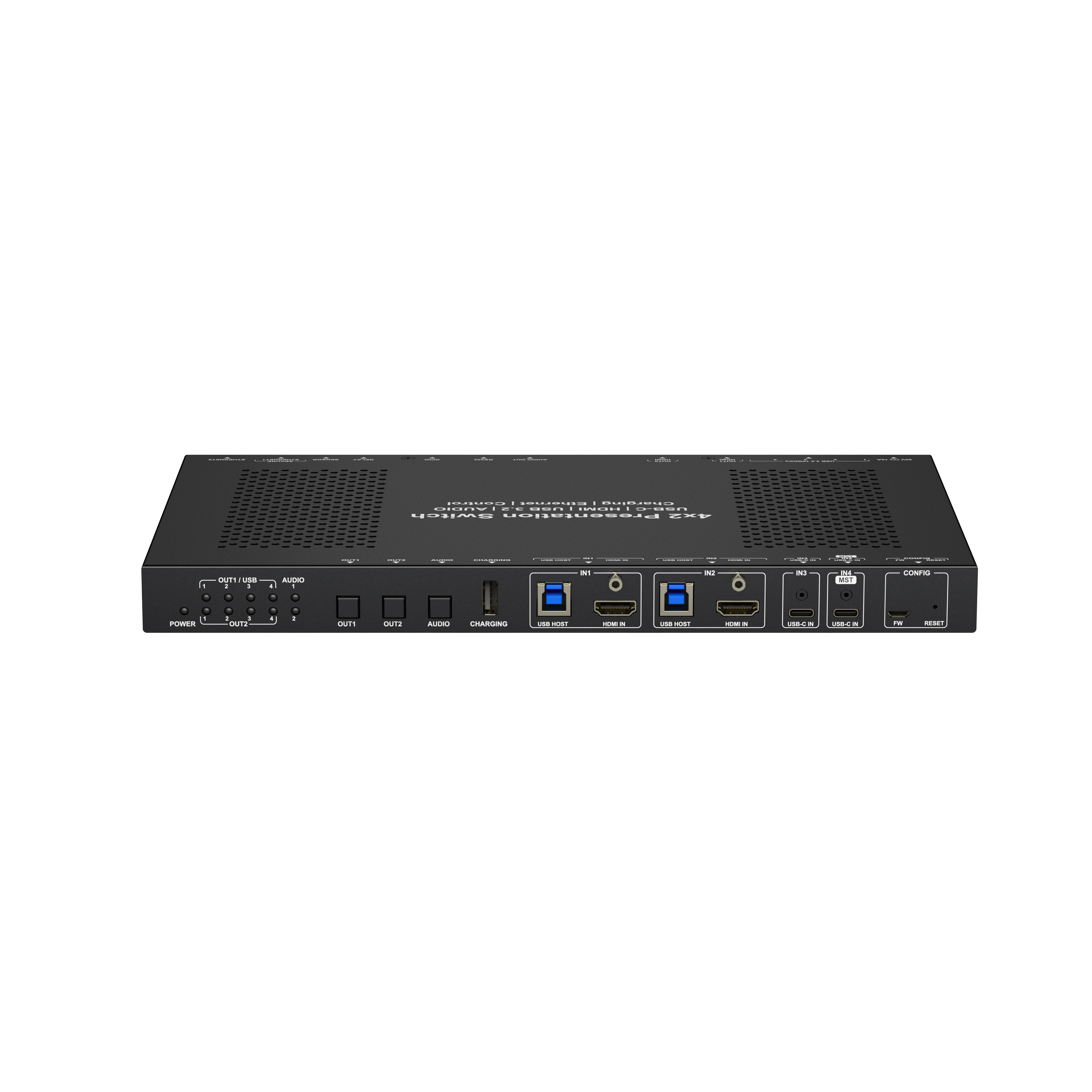

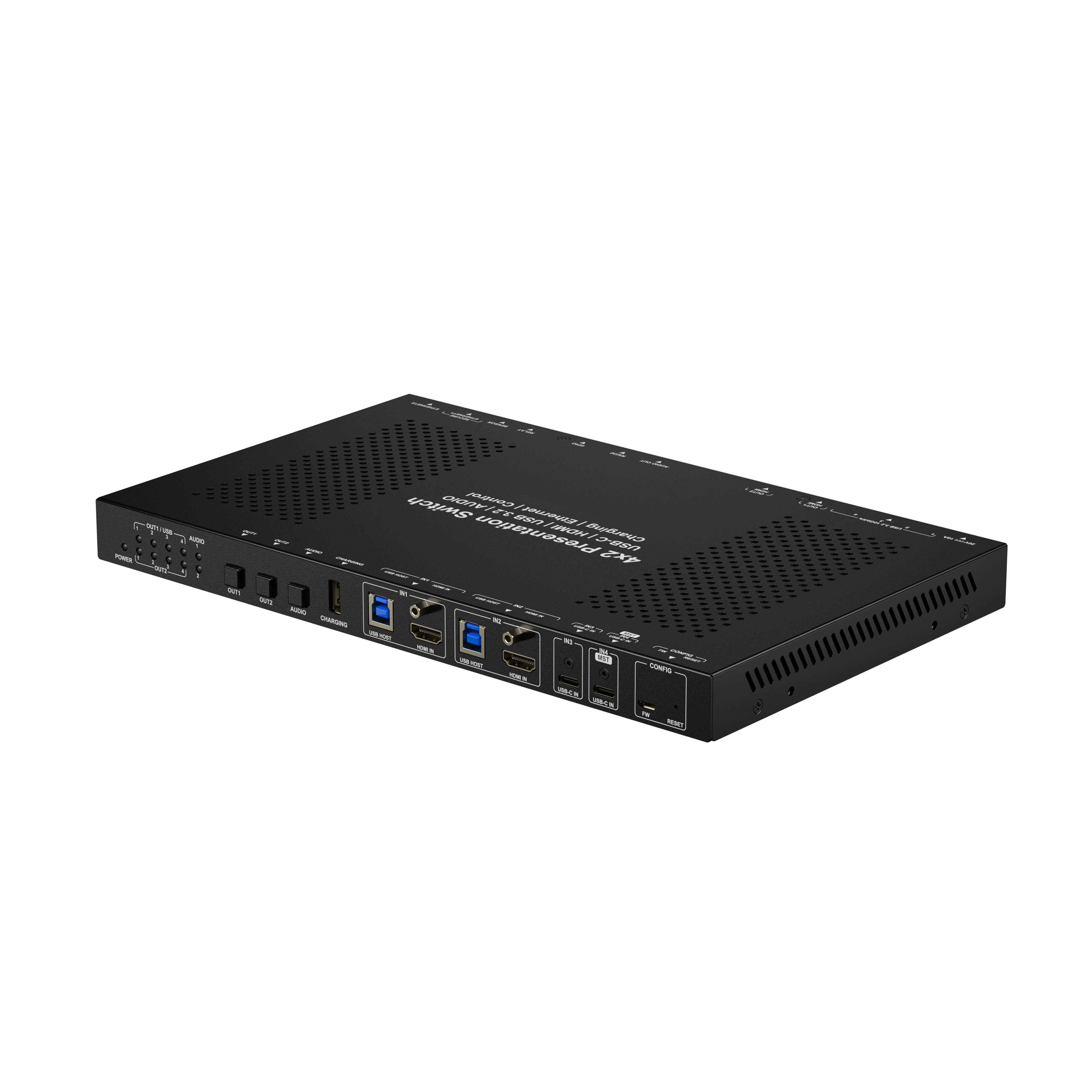

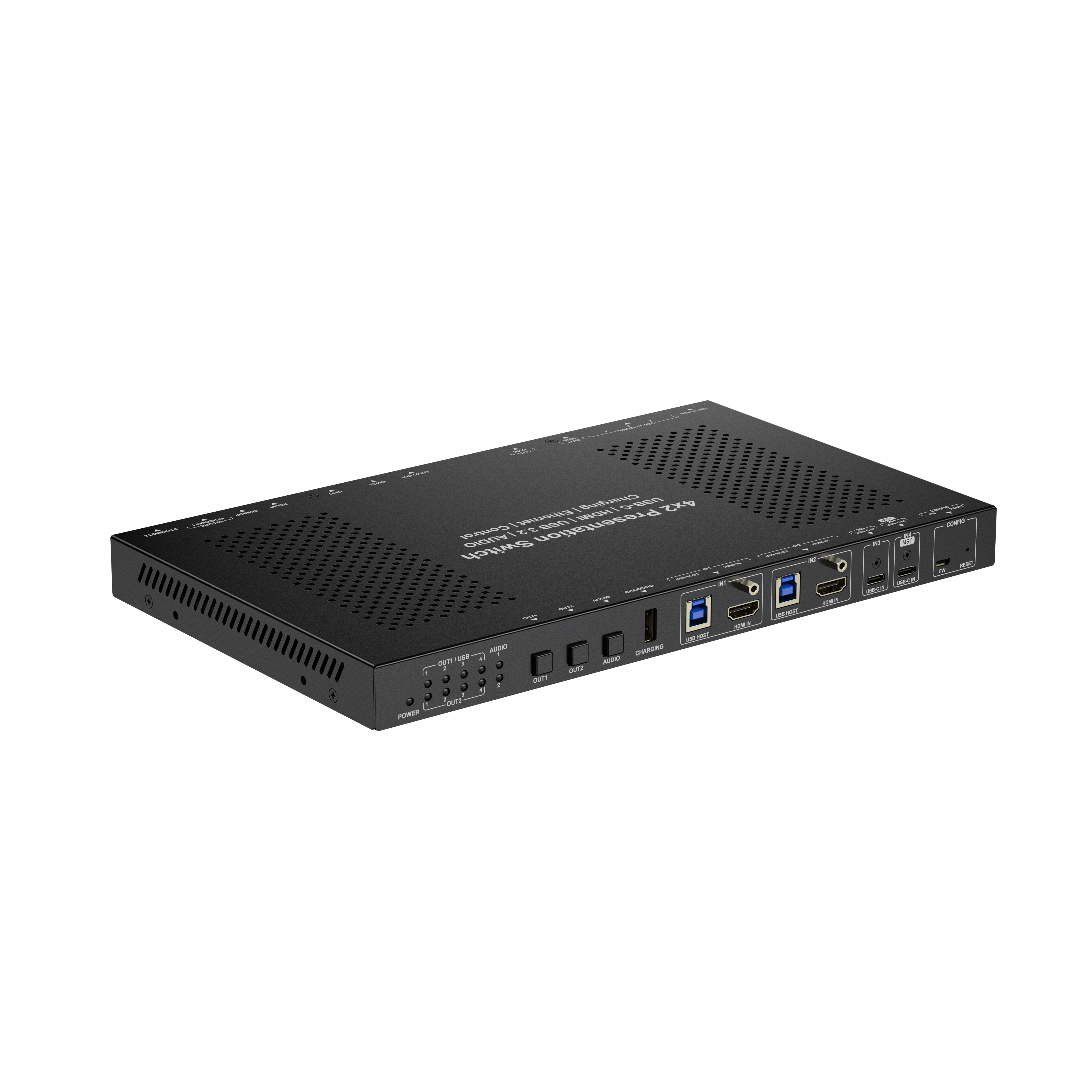

Dual Full-Featured USB-C Inputs with MST Support

Two USB-C inputs support video (DP Alt Mode), USB data up to 10Gbps, USB-to-Ethernet bridging, and up to 60W laptop charging. USB-C IN 4 supports MST (Multi-Stream Transport), enabling dual independent 4K outputs from a single USB-C source — ideal for dual-display conferencing environments.

Integrated USB-to-Ethernet Bridge

Each USB host interface supports 1Gbps Ethernet bridging, allowing connected laptops to access wired network infrastructure through the switcher. This reduces the need for additional docking hardware and simplifies BYOD connectivity.

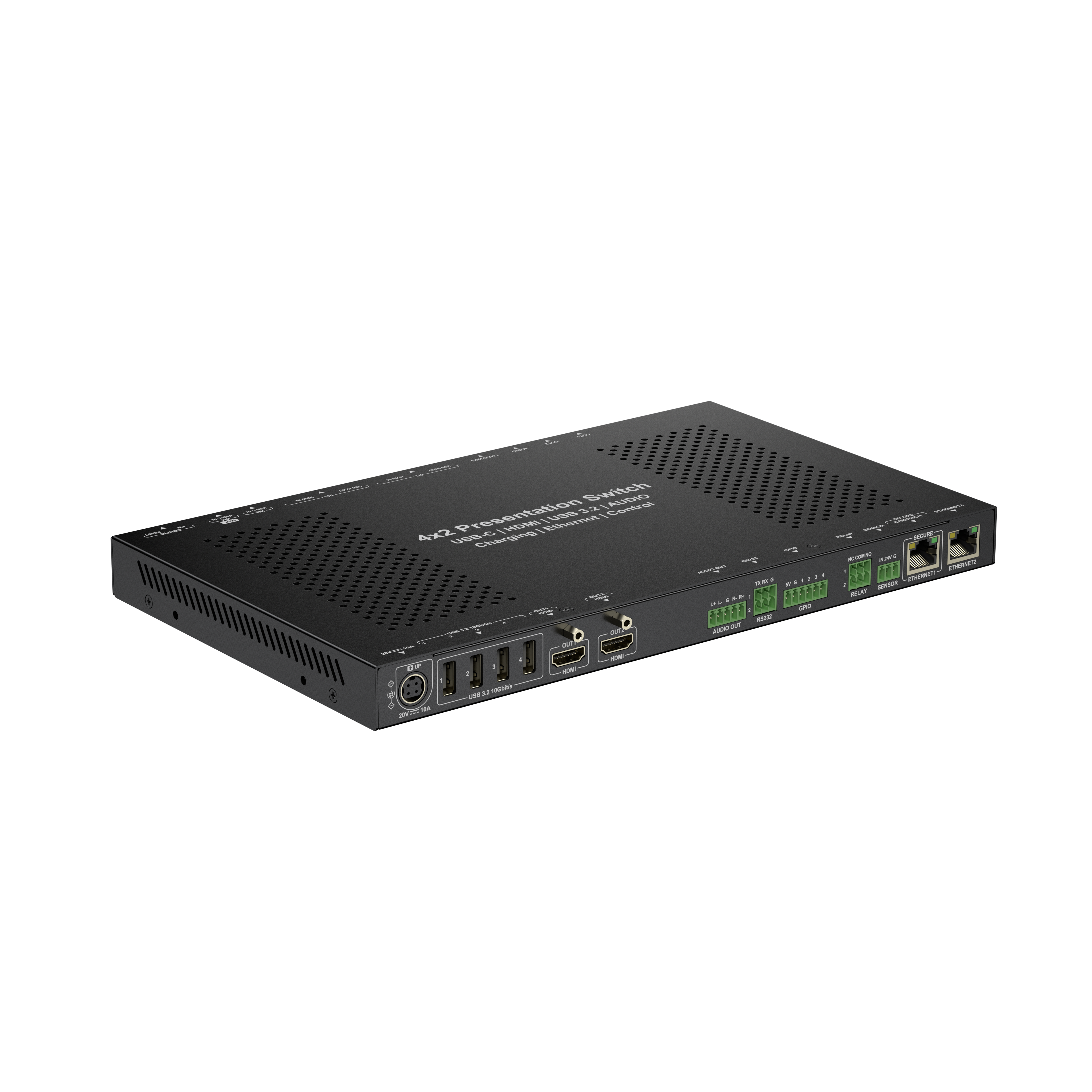

Advanced Network & VLAN Security

Dual RJ45 ports support VLAN segmentation, separating device control traffic from USB network traffic for enhanced enterprise security. Support for 802.1x authentication (EAP-TLS & EAP-MSCHAP V2) ensures compliance with corporate IT security policies.

Professional Audio Integration

The MATRIX supports HDMI and USB audio de-embedding with balanced audio output for integration into professional DSP and sound systems. Audio routing can be independently configured through Web UI or API for flexible system design.

Intelligent Auto-Switching Modes

Automatic switching supports LIFO and Priority modes, enabling seamless source selection based on signal detection. This ensures meetings begin instantly without manual intervention while still allowing integrator-defined input priority.

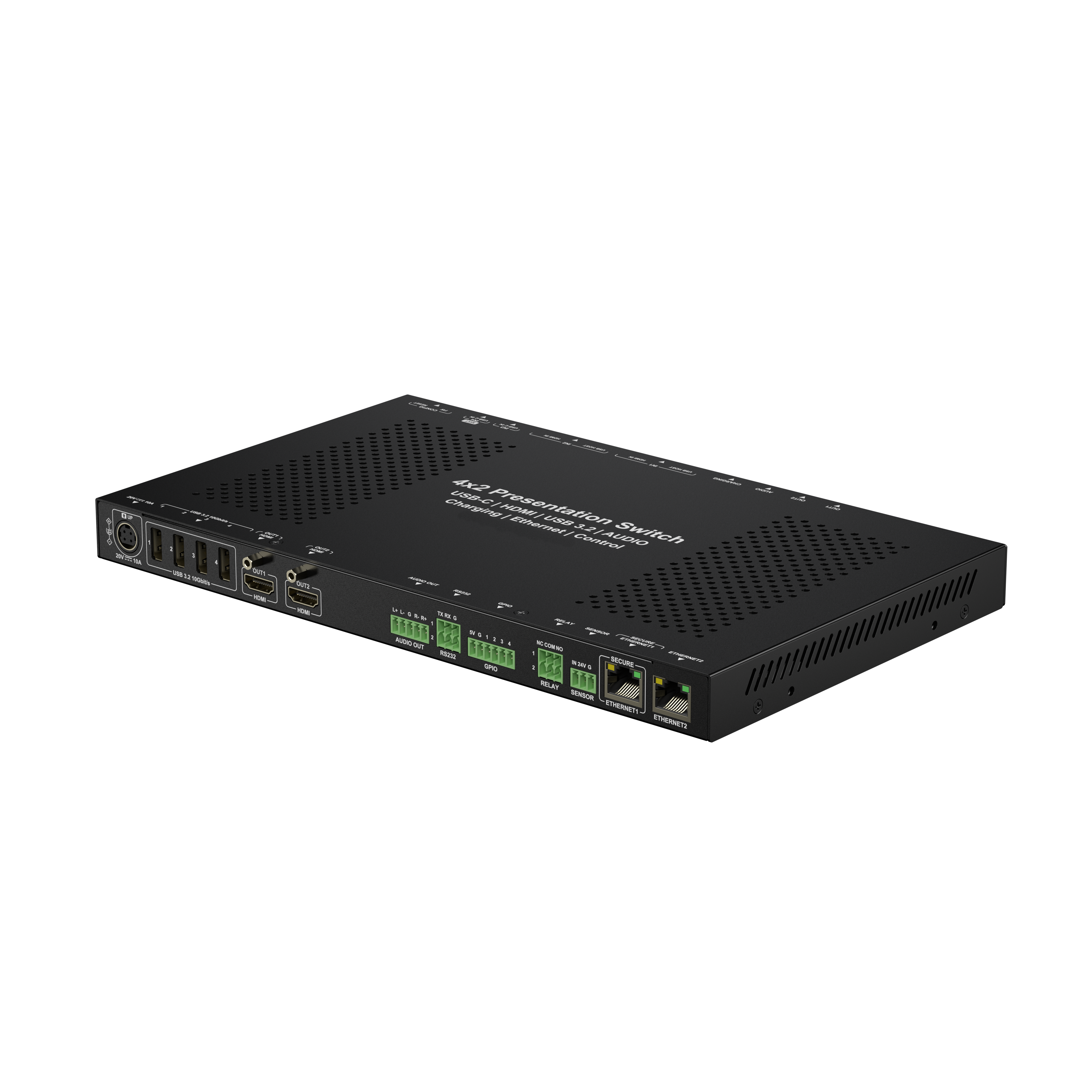

Enterprise-Grade Control & Automation

Comprehensive control options include:
• Web UI (HTTP/HTTPS)
• Telnet
• RS232 with TCP routing
• GPIO & Relay control
• CEC display control
• Sensor integration

These interfaces allow deep integration with third-party automation systems and centralized control platforms.

Silent & Installation-Friendly Design

The compact enclosure supports bracket mounting and is engineered for reliable operation in professional AV racks and conference furniture installations. Optimized power management ensures stable long-term performance.
