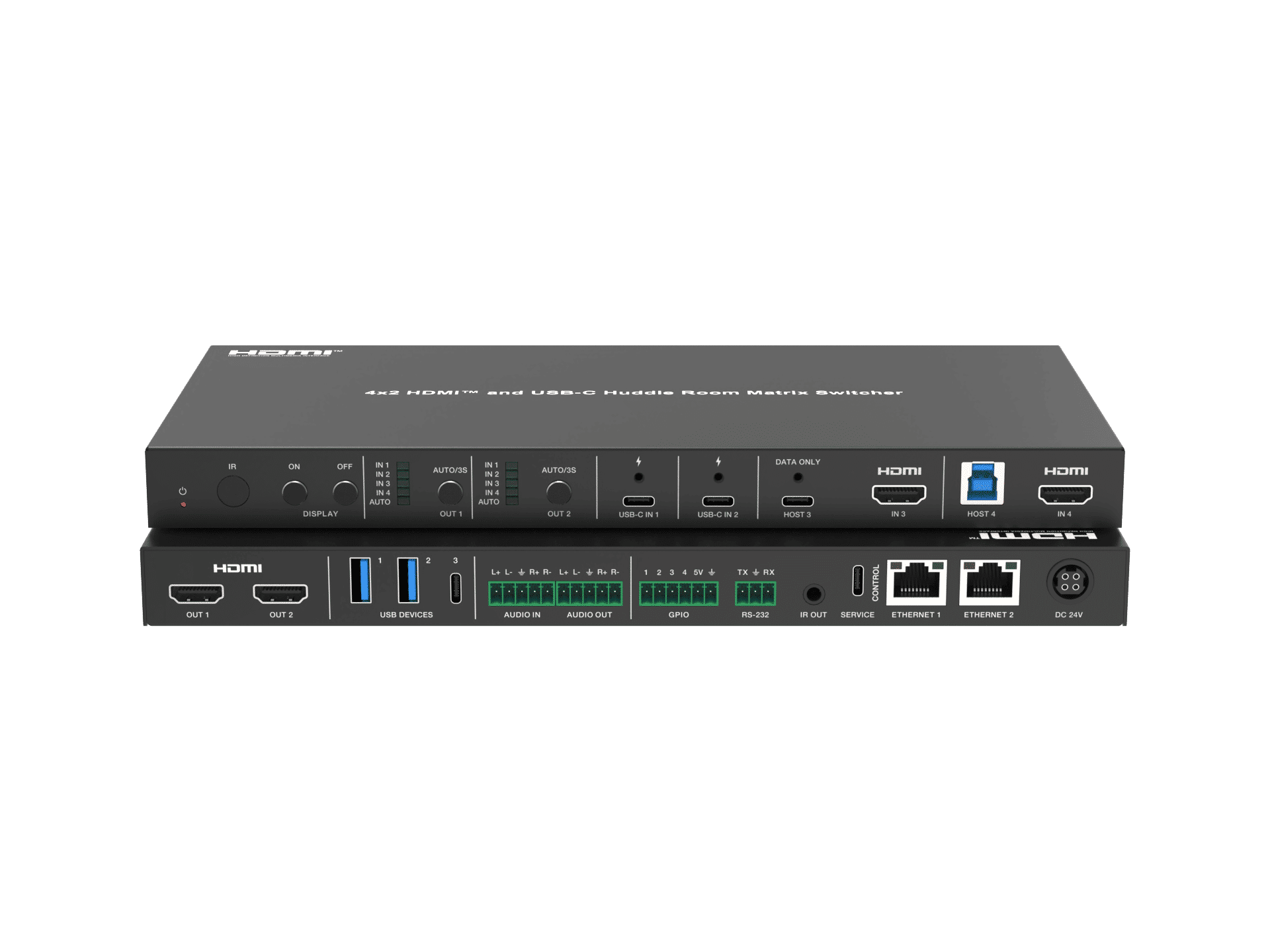

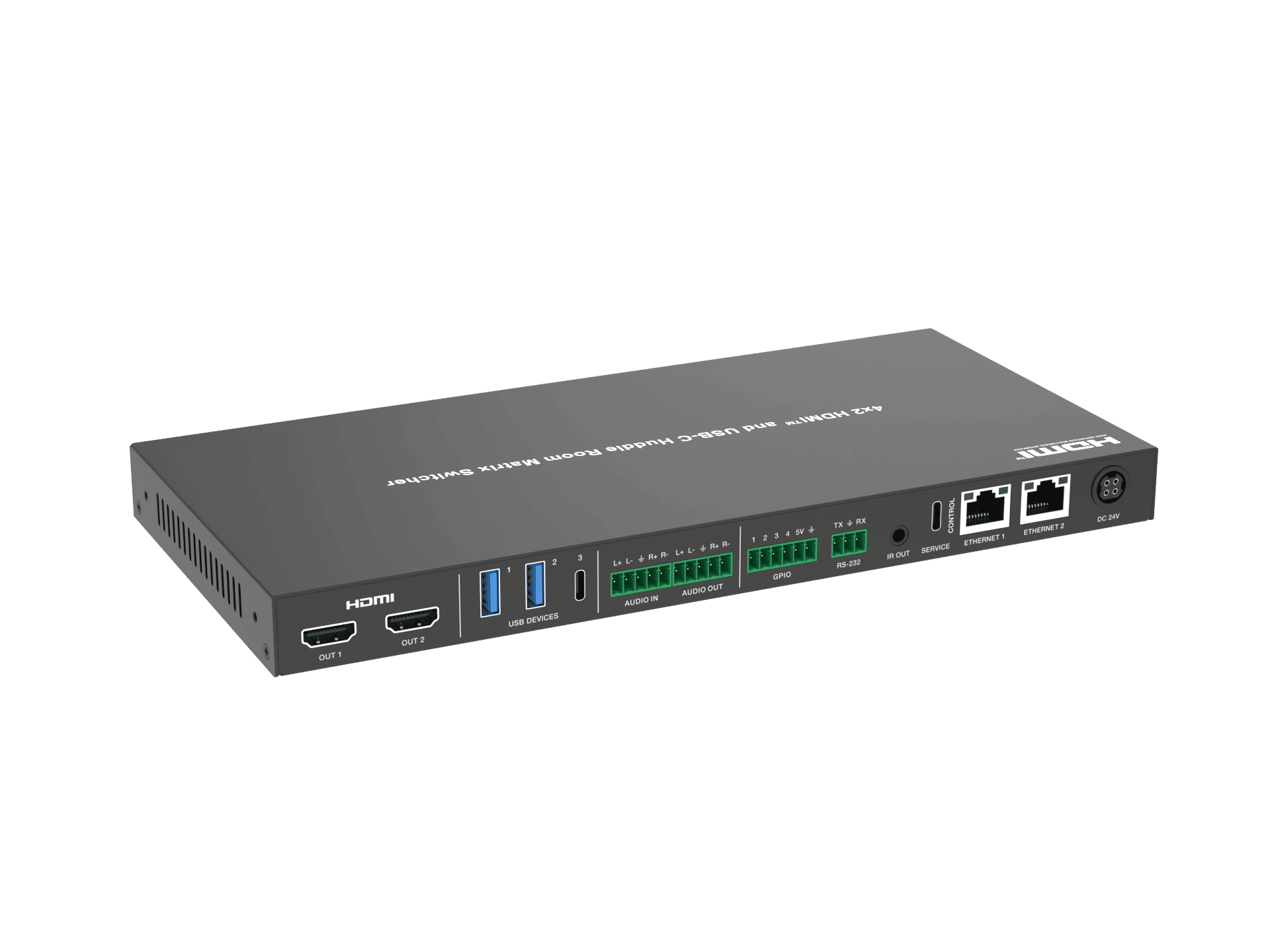

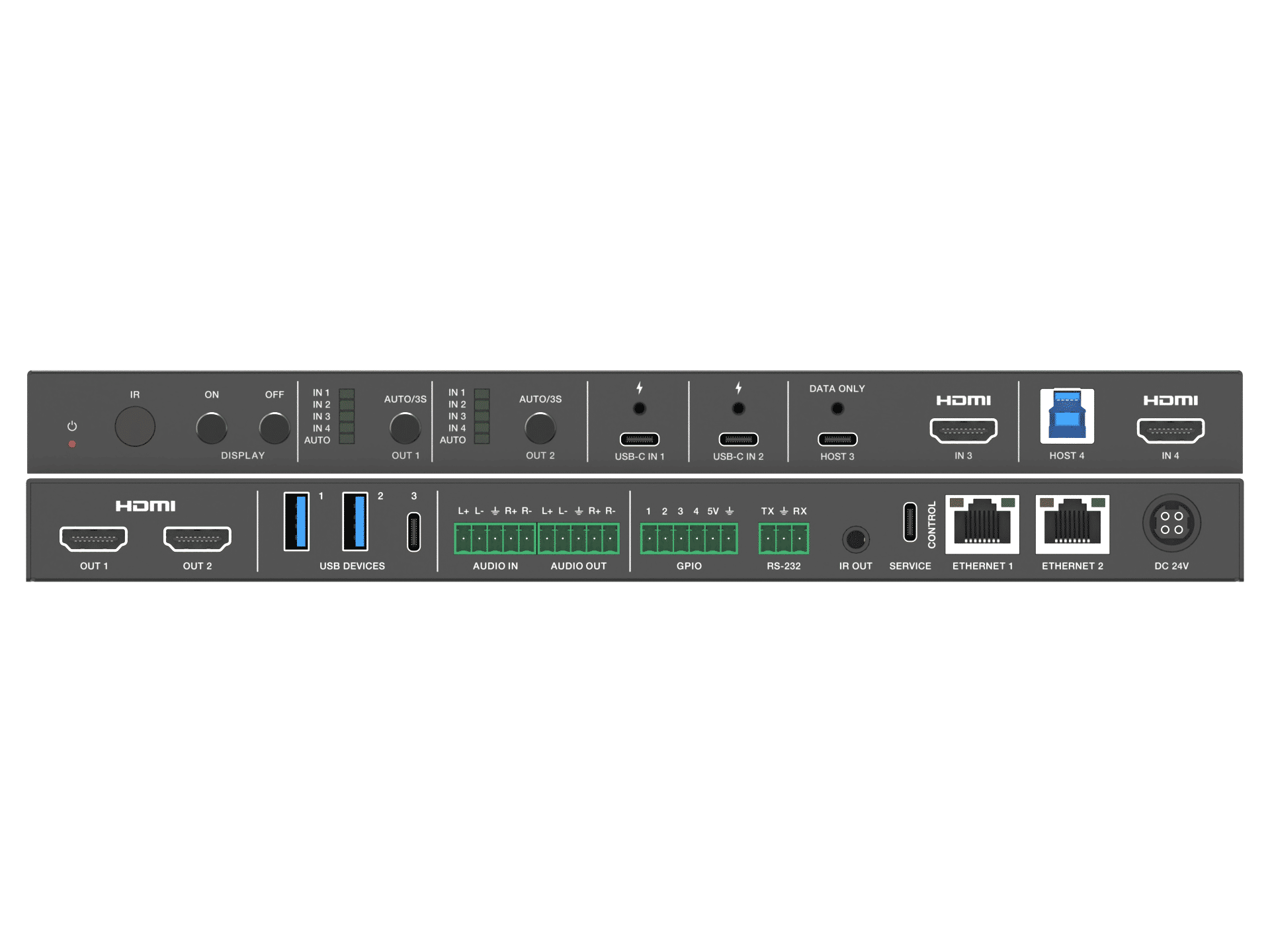

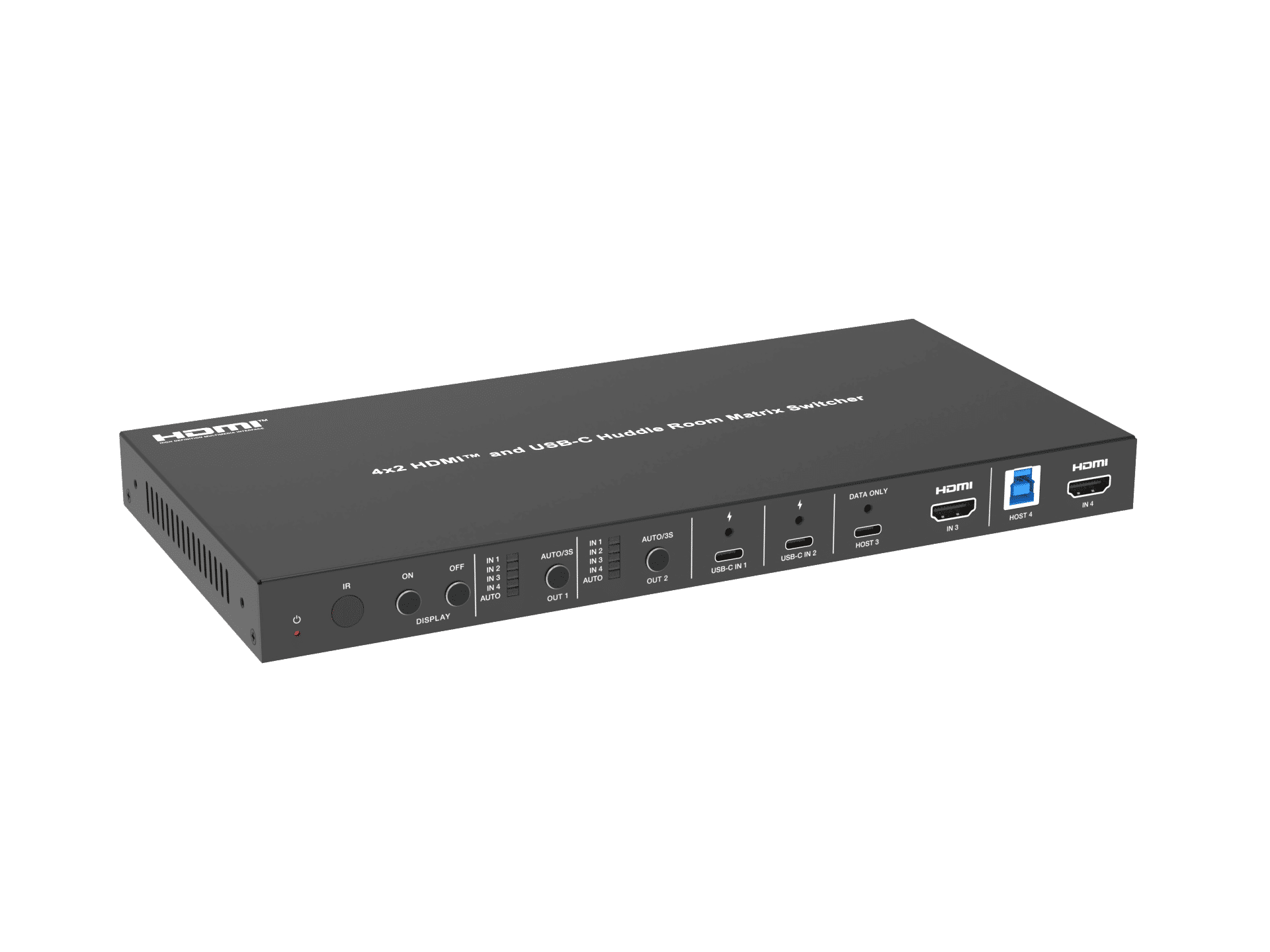

UNITY™ UC PRO TA-HUS42PRO 4*2 HUDDLE ROOM SWITCHER
4×2 4K60 Huddle Room Switcher with USB-C, HDMI & USB KVM
The UNITY™ UC TA-HUS42PRO is a powerful 4×2 huddle room presentation switcher designed for modern BYOD collaboration spaces. Featuring dual USB-C and HDMI inputs, dual HDMI outputs, integrated USB 3.2 hub, and advanced control capabilities, it delivers seamless switching, high-performance 4K60 video, and intelligent room automation in a compact form factor.
Built for professional meeting rooms and collaboration environments, TA-HUS42PRO simplifies connectivity while ensuring enterprise-grade performance and control.
Key Features – UNITY™ UC TA-HUS42PRO
- 4×2 Multi-Format Switcher
2× USB-C + 2× HDMI inputs with dual HDMI outputs - 4K@60Hz 4:4:4 Performance
18Gbps bandwidth with HDR10, HDR10+, Dolby Vision & HLG support - Full-Feature USB-C Connectivity
DP Alt Mode video, USB 3.2 (5Gbps), 1G Ethernet & up to 100W charging - Integrated USB 3.2 KVM Switching
Share cameras, microphones, and conferencing devices seamlessly - Auto & Manual Switching Modes
Signal detection, 5V detection & configurable fallback input - Dual 1G Ethernet with 802.1X & VLAN
Enterprise-grade secure network integration - Balanced / Unbalanced Audio I/O
Audio embedding & de-embedding with gain control - Advanced EDID & HDCP Management
22 EDID presets + user-defined EDID support - Comprehensive Control Options
Front panel, Web GUI, TCP/IP, RS-232, IR, GPIO & CEC - Auto Display Power Control
Programmable power-on/off timers for display automation - Welcome & No-Signal Screen Customization
User-defined startup image and idle screen - Compact 1U Half-Rack Design
Low-profile metal enclosure ideal for huddle rooms
Datasheet
Category | Specification |
Video Inputs | 2× HDMI 2.0b, 2× USB-C (DP 1.4a Alt Mode) |
Video Outputs | 2× HDMI 2.0b |
Max Resolution | Up to 4K@60Hz 4:4:4 |
Video Bandwidth | 18Gbps |
HDCP | HDCP 2.3 |
HDR Support | HDR, HDR10, HDR10+, Dolby Vision, HLG |
Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
Color Depth | 8 / 10 / 12-bit (8-bit at 4K60 4:4:4) |
USB & Connectivity | |
USB Standard | USB 3.2 Gen1 (5Gbps) |
USB Hosts | 1× USB-C, 1× USB-B |
USB Devices | 2× USB-A, 1× USB-C |
USB Switching Modes | Follow Video / Manual / Auto |
USB-C Charging | Up to 100W (50W per USB-C input) |
USB-C Ethernet | 1G Ethernet pass-through |
Audio | |
Analog Audio Input | 1× L/R (Balanced / Unbalanced) |
Analog Audio Output | 1× L/R (Balanced / Unbalanced) |
Audio Embedding | Analog to HDMI / USB |
Audio De-embedding | HDMI / USB to Analog |
Frequency Response | 20Hz – 20kHz |
Dynamic Range | >90dB |
Audio Delay | <1ms |
Network & Control | |
LAN Ports | 2× RJ45 (1G) |
Network Features | 802.1X Authentication, VLAN |
Control Interfaces | Front Panel, Web GUI, TCP/IP, RS-232, IR, GPIO, CEC |
Auto Switching | Signal Detection & 5V Detection |
EDID Management | 22 Presets + 2 User-Defined |
Internal Test Pattern | Multiple resolutions & patterns |
Display Control | Auto Power On/Off (0–1200 sec timer) |
Electrical & Mechanical | |
Power Supply | DC 24V / 7.5A |
Power Consumption | 41W (No USB-C charging) / 149W (With charging) |
Dimensions (W×D×H) | 270 × 130 × 23 mm |
Weight | 890g |
Enclosure | Metal, Black |
Operating Temperature | 0°C – 40°C |
Humidity | 20%–80% (non-condensing) |
Compliances | CE, ROHS, FCC, UL |
Compliances | IEC 61000-4-2 ESD Protection ±8kV (Air Discharge) ±4kV (Contact Discharge) |
