TA-MC41-ARM

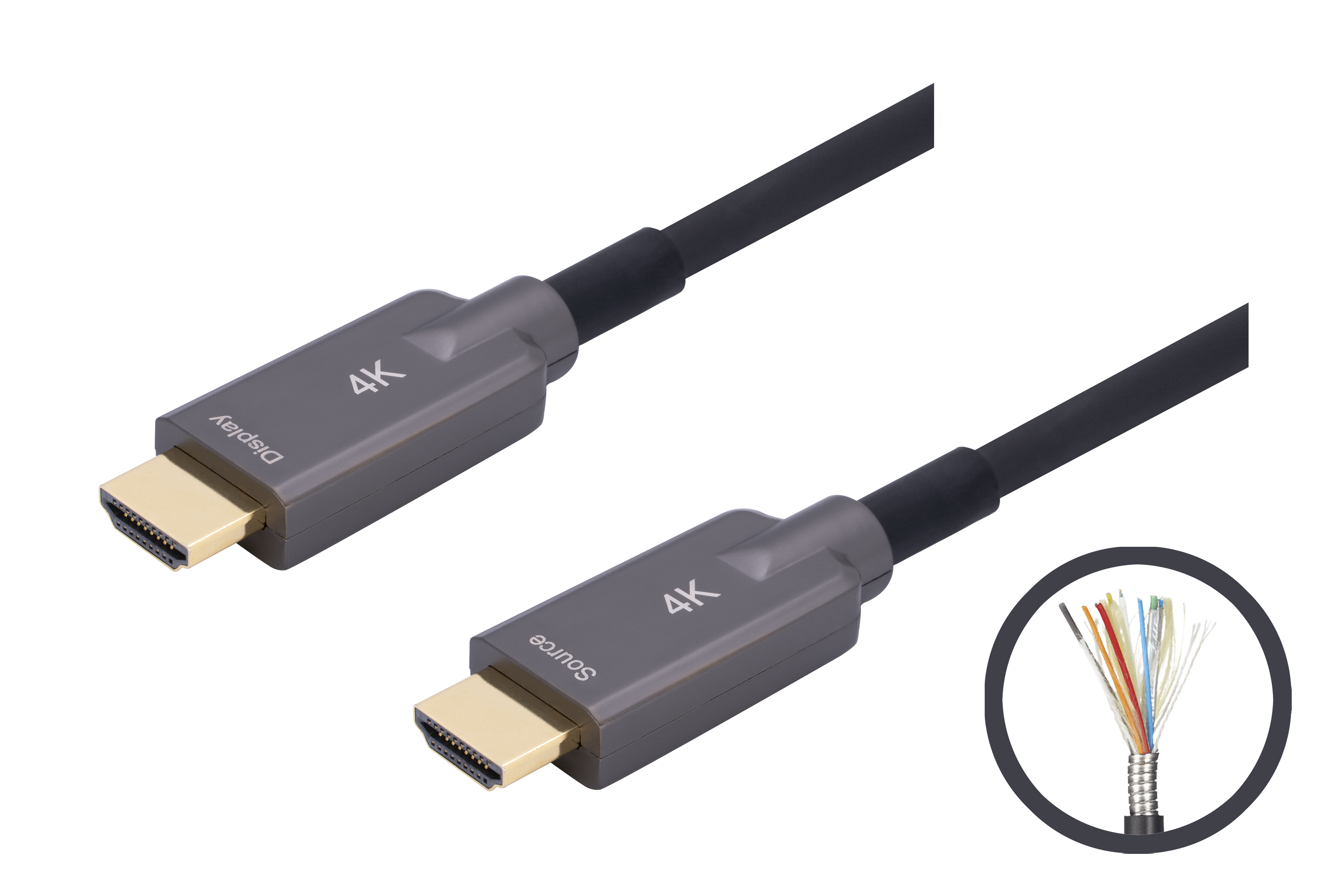

The Techaagam’s TA-MC41-ARM Heavy-Duty Armoured Super Flexible HDMI Male to Male Cable (AOC, HDMI 2.0, 4K) is a premium Active Optical Cable (AOC) engineered for demanding professional AV environments that require long-distance transmission, extreme durability, and high flexibility. This hybrid HDMI cable uses optical fiber for high-speed TMDS data and copper conductors for control and power, delivering stable, interference-free performance at HDMI 2.0 bandwidth levels. An internal stainless-steel armored layer protects the fiber core from crushing, pulling, rodent damage, and mechanical stress, while the super-flexible outer jacket ensures easy routing through conduits, racks, and raceways. Supporting 4K Ultra HD @ 60 Hz, deep color, and multi-channel audio, this cable is ideal for mission-critical AV installations, digital signage, control rooms, auditoriums, and broadcast environments.
Datasheet
Parameter | Specification |
Series | TA-MC41-ARM HDMI Heavy-Duty Armoured |
Cable Type | Active Optical HDMI Cable (Hybrid Fiber + Copper) |
HDMI Version | HDMI 2.0 |
Connector Type | HDMI Type-A Male to HDMI Type-A Male |
Direction | Unidirectional (Source → Display) |
Video Bandwidth | Up to 18 Gbps |
Resolution Support | 480p / 720p / 1080i / 1080p 4K (3840×2160) @ 60Hz 3D Full HD |
Color Depth | 24-bit / 30-bit / 36-bit (Deep Color Supported) |
Color Sampling | 4:4:4 / 4:2:2 / 4:2:0 |
HDR Support | HDR10 (device dependent) |
Audio Support | Dolby®, DTS®, LPCM multi-channel audio |
HDCP | HDCP 1.4 / 2.2 |
ARC / CEC | Yes |
Transmission Medium | Optical fiber (TMDS) + Copper (control & power) |

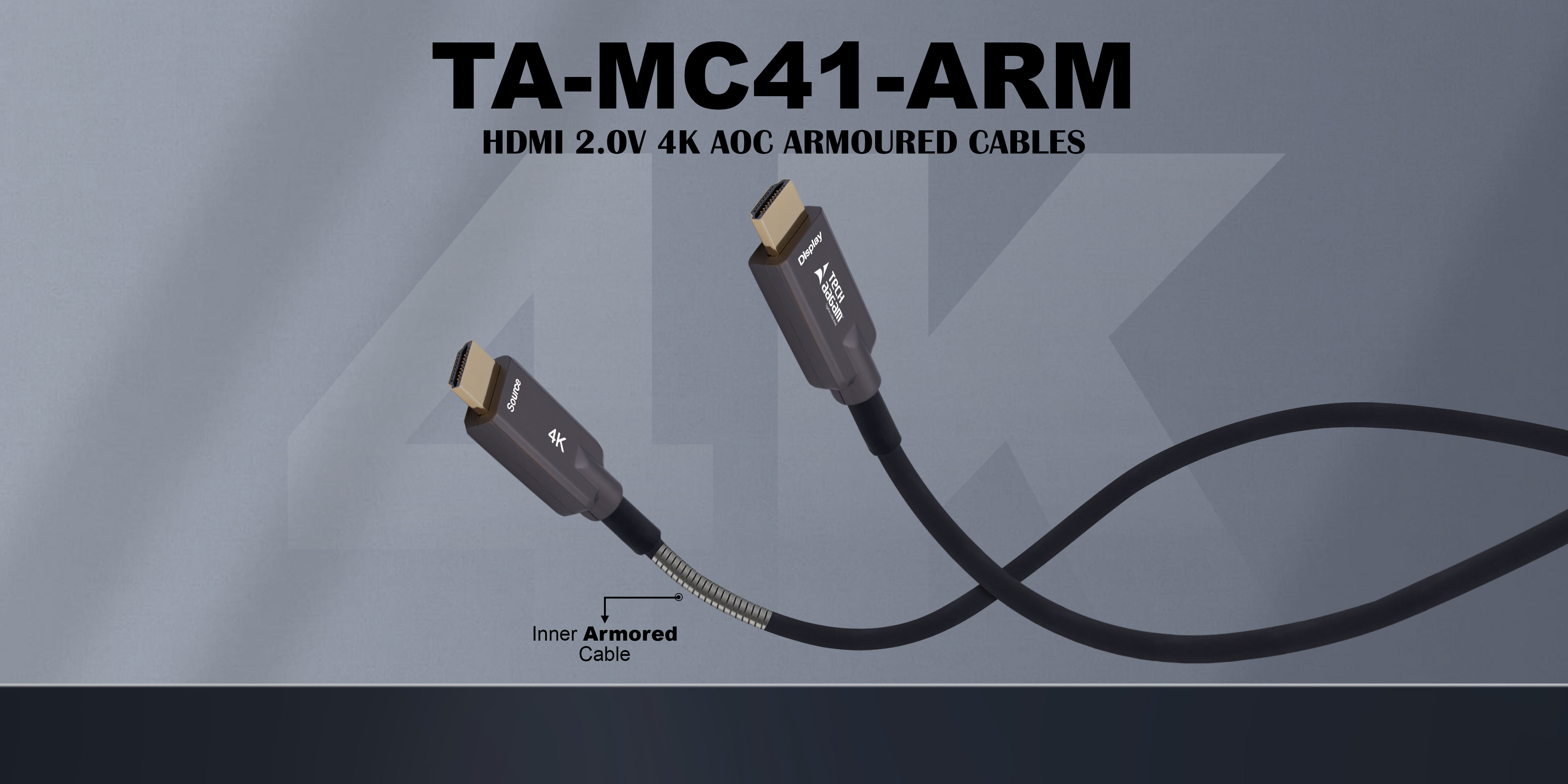

Internal Protection | Stainless-steel armored layer |
EMI Immunity | Yes (fiber transmission immune to EMI) |
Conductor Material | High-purity copper (for control & power lines) |
Shielding | Multi-layer shielding |
EDID | Bi-directional communication supported |
Cable Jacket | Heavy-duty super-flexible PVC / TPU |
Cable Color | Matte Black |
Tensile Strength | Up to 100–200 kg (model dependent) |
O/E Converter (TX) | 4-channel 850nm VCSEL array |
O/E Converter (RX) | 4-channel GaAs PD array |
Certification | HDMI premium certified cables |
Differential Impedance | 100Ω (typ.) |
Power Consumption | ≤250mW |
Power Supply | HDMI 5V (no external power) |
Outer Diameter | ≈5.8mm |
Tensile Strength | Long term: 400N Short term: 800N |
Crush Resistance | Long term: 1000N / 100mm Short term: 2000N / 100mm |
Bending Radius | Dynamic: 10D Static: 20D |
Available Lengths | 10m, 15m, 20m |
Operating Temperature | 0°C to +50°C |
Storage Temperature | -40°C to +80°C |
Relative Humidity | 10% – 80% RH |
flammability | UL, VW-1 |
Compliance | CE, RoHS |
