TA-MC40-ARM

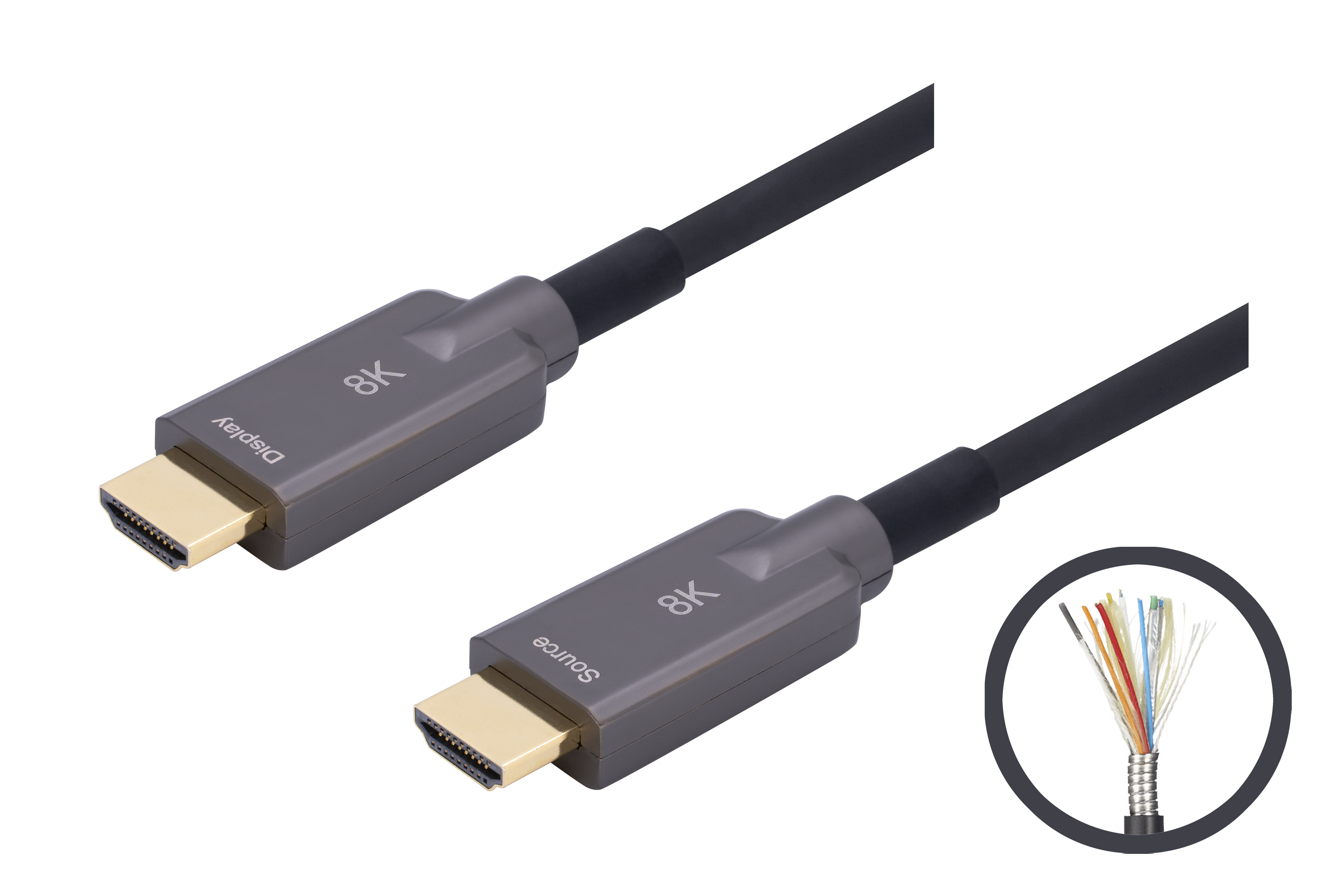

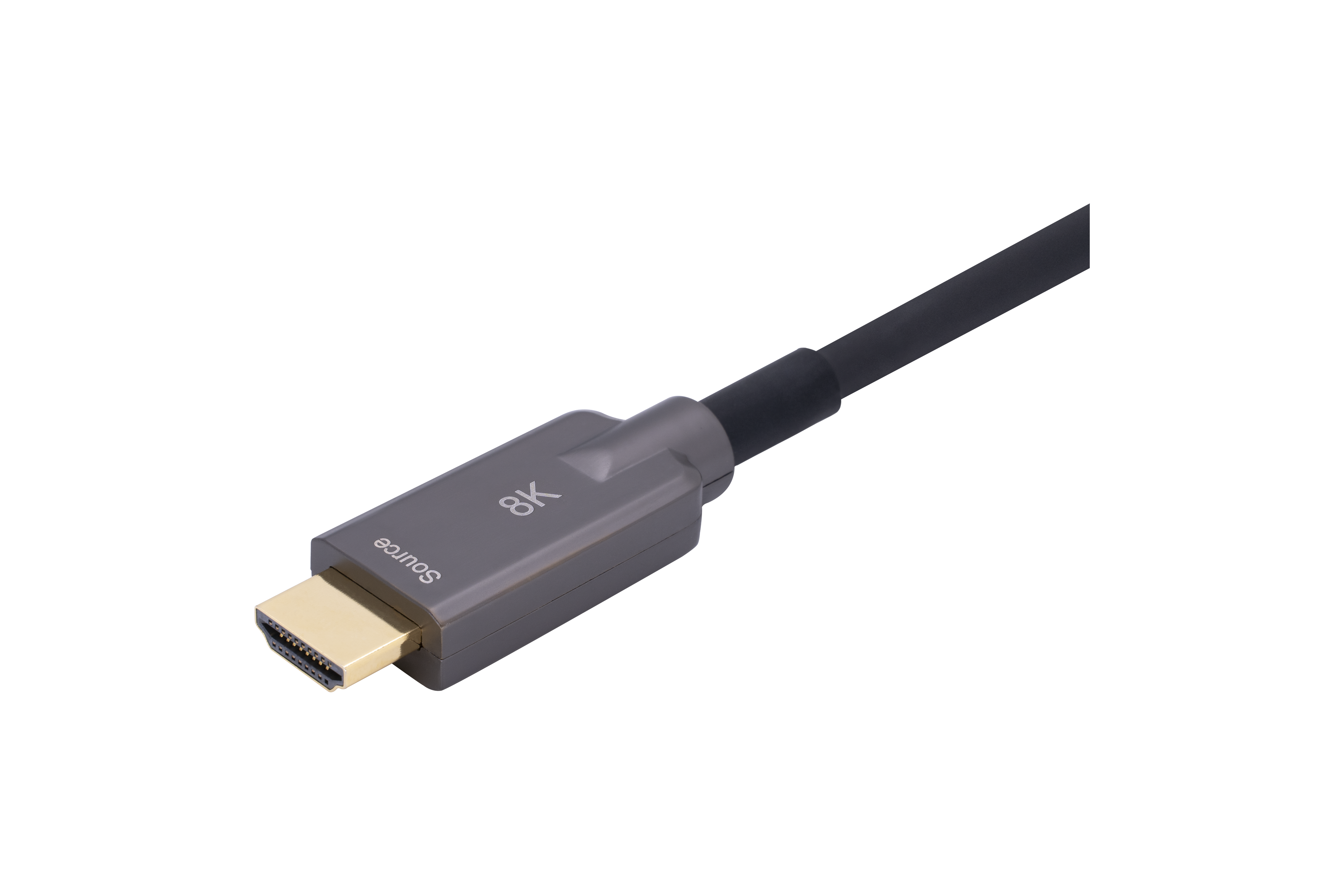

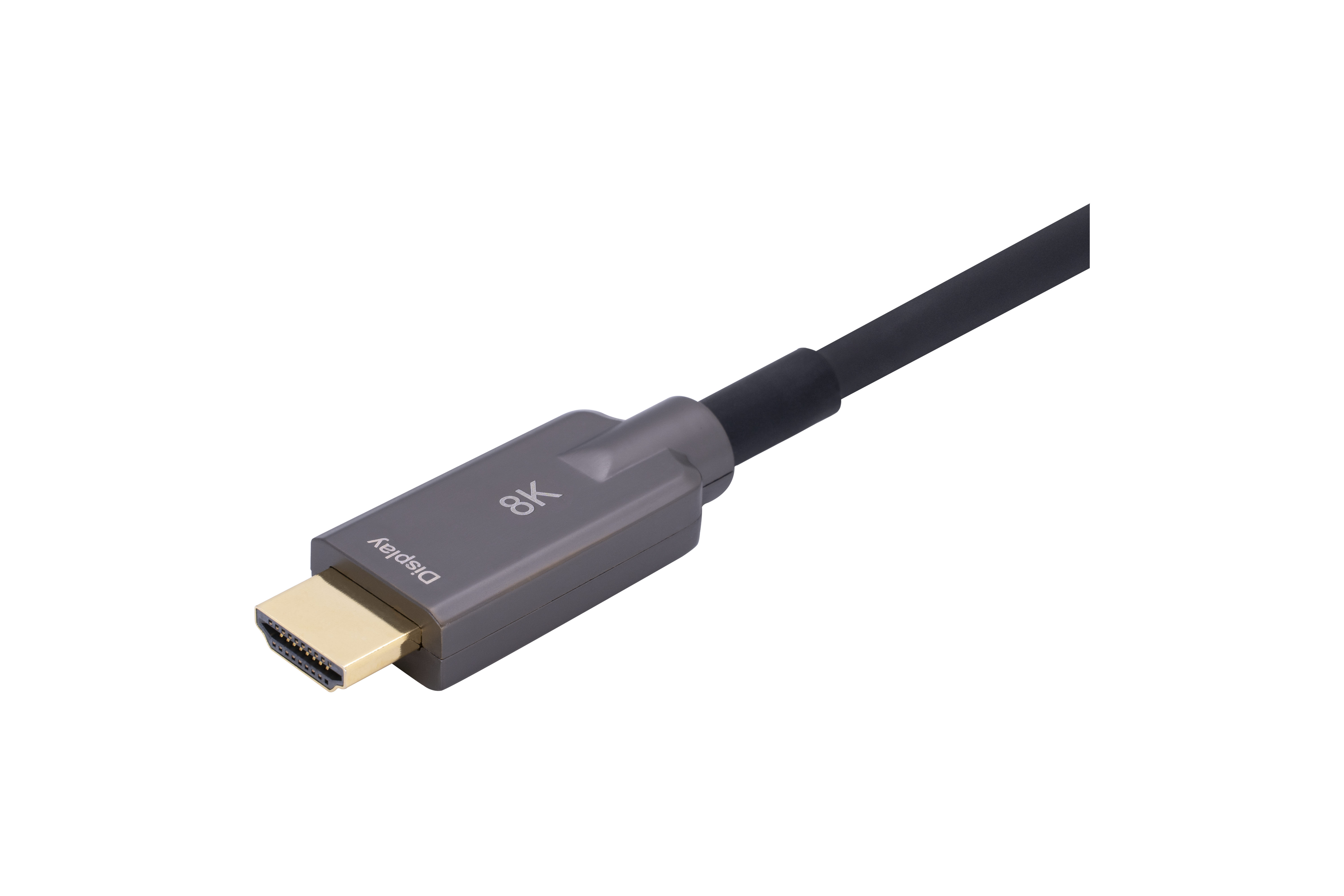

The Techaagam’s TA-MC40-ARM HDMI 2.1V 8K Armoured Cable is a premium ultra-high-speed HDMI interconnect engineered for demanding professional and residential AV installations that require maximum bandwidth, long-distance stability, and superior mechanical durability. Featuring a reinforced internal armoured layer combined with a high-flexibility outer jacket, this cable provides exceptional resistance to crushing, pulling, and mechanical stress while maintaining excellent flexibility for routing through conduits, racks, and concealed pathways. Supporting the full HDMI 2.1 specification with 48 Gbps bandwidth, this cable delivers uncompromised performance for 8K Ultra HD, high-frame-rate 4K, advanced gaming features, and immersive next-generation audio formats.
Datasheet
Parameter | Specification |
Series | TA-MC40-ARM HDMI Heavy-Duty Armoured |
Cable Type | Heavy-Duty Armoured HDMI Cable |
HDMI Version | HDMI 2.1 |
Connector Type | HDMI Type-A Male to HDMI Type-A Male |
Maximum Bandwidth | Up to 48 Gbps |
Resolution Support | 480p / 720p / 1080i / 1080p 4K (3840×2160) @ 60Hz 3D Full HD |
Color Depth | Up to 48-bit Deep Color |
Color Sampling | 4:4:4 / 4:2:2 / 4:2:0 |
HDR Support | HDR10, HDR10+, Dolby Vision®, HLG |
Audio Support | Dolby Atmos®, DTS:X®, LPCM multi-channel |
eARC Support | Yes |
EDID | Bi-directional communication supported |
HDCP | HDCP 1.4 / 2.2 |
Conductor Material | High-purity oxygen-free copper (OFC) |
Shielding | Multi-layer / triple shielding |
Internal Protection | Reinforced armoured layer |
EMI Protection | Yes |
Cable Jacket | Heavy-duty flexible PVC / TPU |
Cable Color | Matte Black |
Tensile Strength | Long term: 400N Short term: 800N |
Crush Resistance | Long term: 1000N / 100mm Short term: 2000N / 100mm |
Available Lengths | 10m, 15m, 20m |
Power Supply | HDMI 5V (no external power) |
Differential Impedance | 100Ω (typ.) |
O/E Converter (TX) | 4-channel 850nm VCSEL array |
O/E Converter (RX) | 4-channel GaAs PD array |
Power Consumption | ≤250mW |
Outer Diameter | ≈5.8mm |
Bending Radius | Dynamic: 10D Static: 20D |
Operating Temperature | 0°C to +50°C |
Storage Temperature | –40°C to +70°C |
Relative Humidity | 10% – 80% RH |
flammability | UL, VW-1 |
Compliance | CE, RoHS |
