TA-MC45

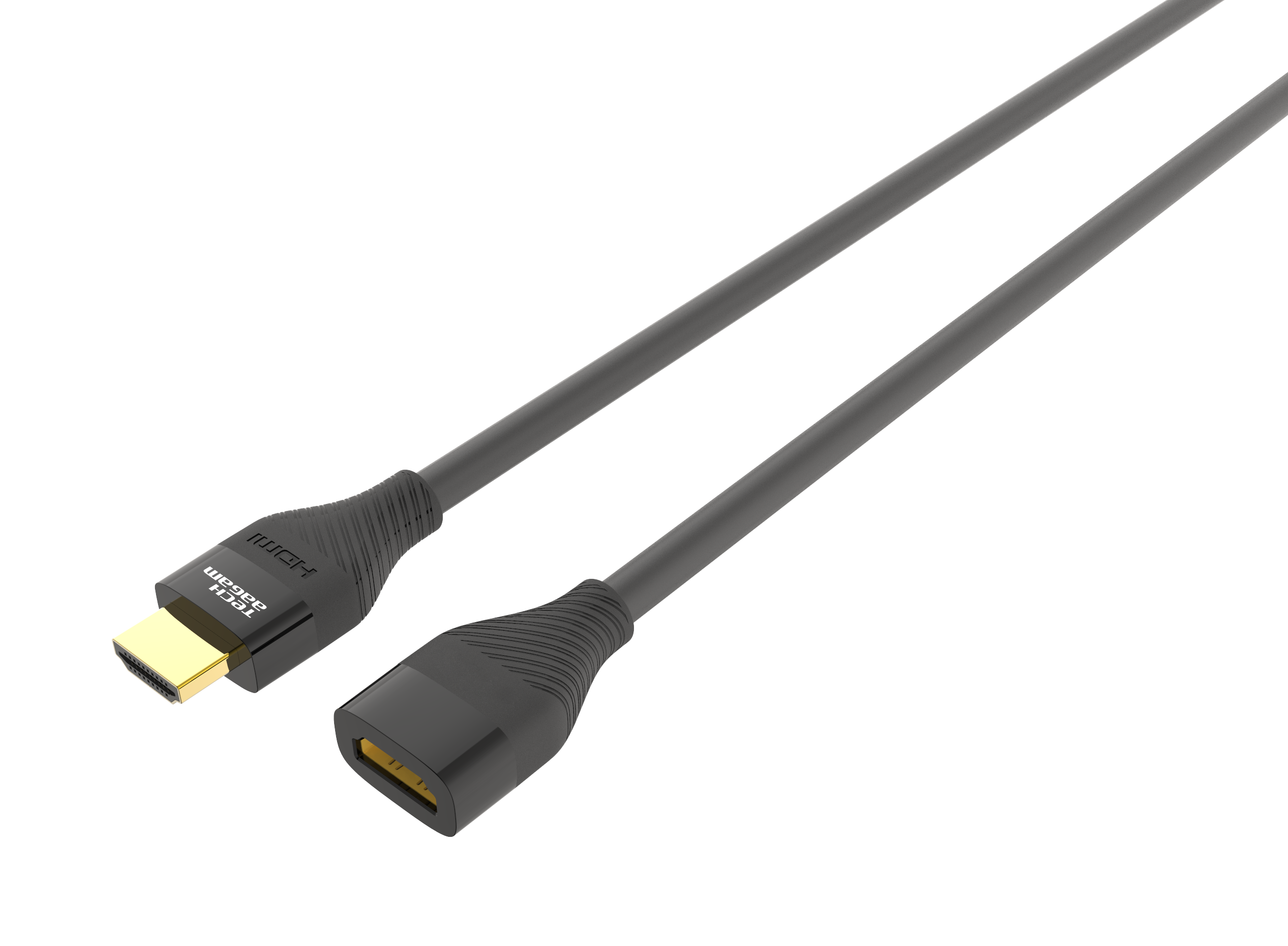

The Techaagam’s TA-MC45 HDMI Male to HDMI Female Panel Mount Cable is designed for fixed and structured AV installations where a secure and accessible HDMI connection is required on panels, racks, wall plates, or enclosures. Featuring a rugged panel-mount female connector and a standard HDMI male connector, this cable enables clean, professional front-panel HDMI access without exposing internal connections. Ideal for AV racks, control panels, digital signage, conference rooms, kiosks, and custom integration projects, this cable ensures reliable high-definition signal transmission with durable mechanical mounting.
Datasheet
Parameter | Specification |
Series | TA-MC45 – HDMI Male to HDMI Female Panel Mount Cable |
HDMI Version | HDMI 2.0 (Typical) |
Connector Type – Input | HDMI Type-A Male |
Connector Type – Output | HDMI Type-A Female (Panel Mount) |
Maximum Bandwidth | Up to 18 Gbps |
Maximum Resolution | Up to 4K × 2K @ 60 Hz |
Color Depth | 24-bit / 30-bit / 36-bit |
HDR Support | HDR10 (device dependent) |
Audio Support | Dolby®, DTS®, LPCM multi-channel audio |
HDCP Support | HDCP 1.4 / HDCP 2.2 |
ARC / CEC | Supported |
Conductor Material | High-purity copper |
Shielding | Multi-layer shielding to reduce EMI |
Connector Plating | Gold-plated |
Cable Jacket | PVC |
Color | Black |
Applications | Meeting rooms, AV racks, Digital signage |
Cable Length | 1.8m, 3m, 5m |
Compliance | CE, RoHS |
flammability | UL, VW-1 |
Operating | 0° C to +50 °C 0 |
Humidity | 0 % to 80 % RH |
