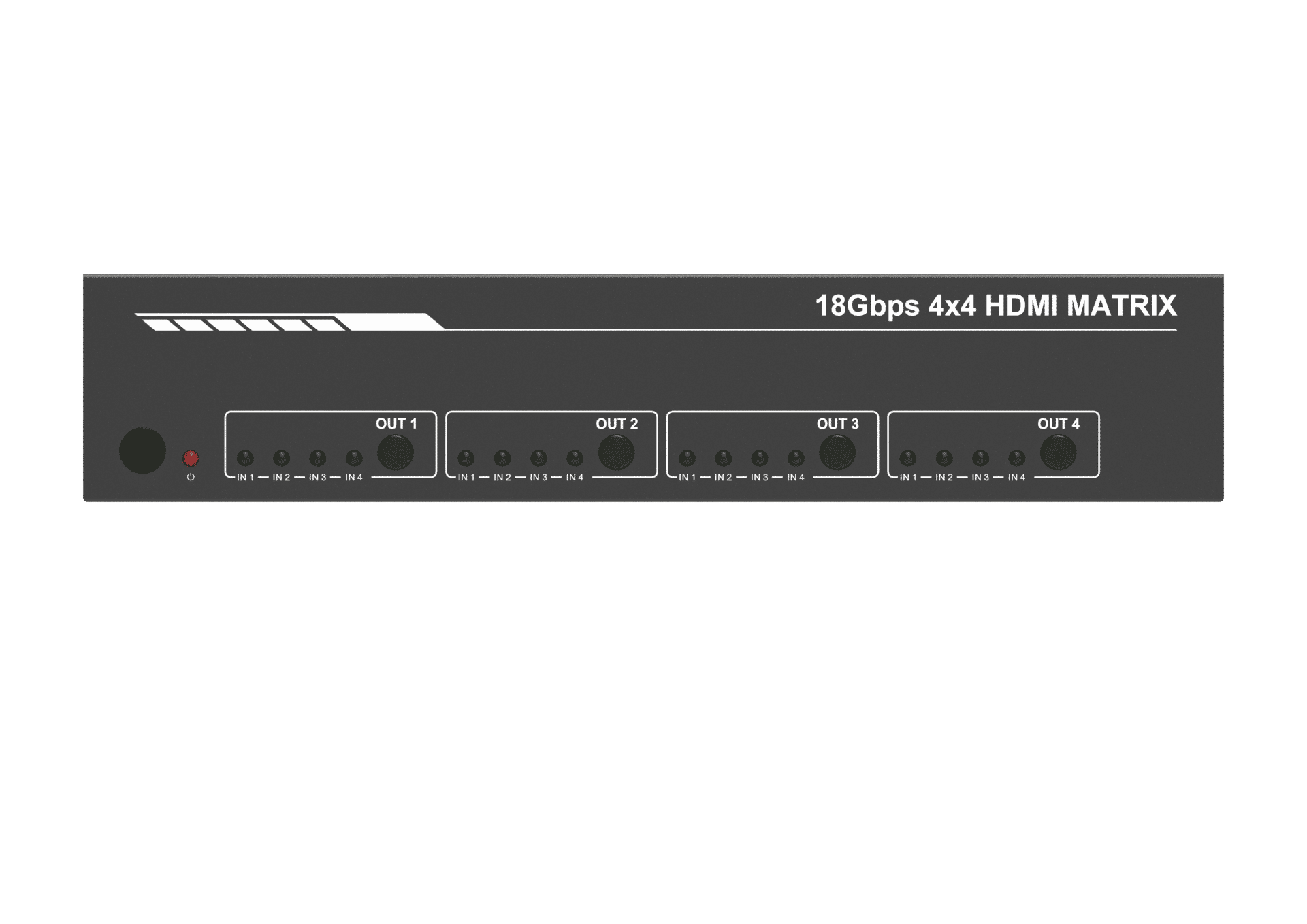

TA-MX44H150-4K60
The TA-MX44H150-4K60 delivers powerful and flexible HDMI matrix switching for demanding AV environments. With four HDMI inputs and four HDMI outputs mirrored to four HDBaseT outputs, this matrix enables any source to be routed to any display with seamless high-resolution performance.
Supporting full 18Gbps HDMI 2.0 bandwidth and resolutions up to 4K@60Hz 4:4:4, the matrix preserves image quality with support for HDR10, HDR10+, Dolby Vision, and HLG. HDBaseT outputs can extend signals up to 150 meters over a single Cat5e/6/7 cable for 1080p content, or up to 120 meters for 4K signals.
The TA-MX44H150-4K60 also features independent 4K to 1080p downscaling on every output, making it easy to connect mixed-resolution displays in the same installation. Integrated audio de-embedding allows audio to be extracted via balanced analog and coaxial outputs for connection to external amplifiers and audio systems.

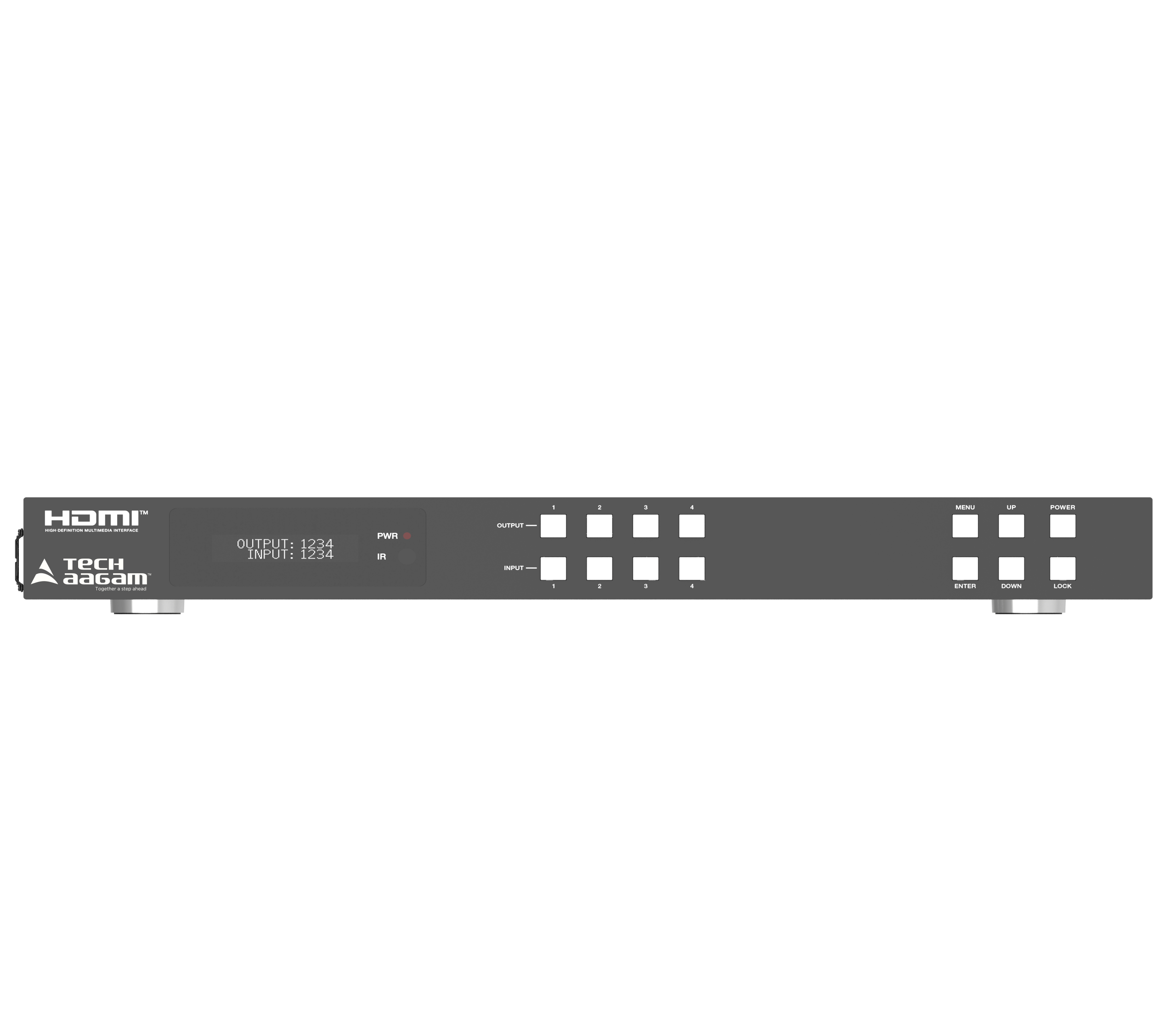

Designed for professional AV control, the matrix supports front-panel buttons with OLED display, IR remote, RS-232, TCP/IP, and Web GUI control. Advanced EDID management, CEC control, bi-directional IR routing, and PoC-powered HDBaseT receivers make installation fast, flexible, and reliable.
Key Features
- 4 HDMI inputs with 4 HDMI outputs and 4 mirrored HDBaseT outputs
- Supports HDMI 2.0b and HDCP 2.2
- 18Gbps bandwidth with 4K@60Hz 4:4:4 video support
- Extends HDMI signals up to 150m over Cat5e/6/7 cable
- Supports HDR10, HDR10+, Dolby Vision, and HLG
- Independent 4K to 1080p downscaler on each output
- Bi-directional IR pass-through and IR matrix control
- Audio de-embedding via balanced analog and coaxial outputs
- Supports Dolby TrueHD, DTS-HD Master Audio, and LPCM 7.1
- Built-in Web GUI, RS-232, LAN, IR remote, and front-panel control
- Advanced EDID management and CEC control

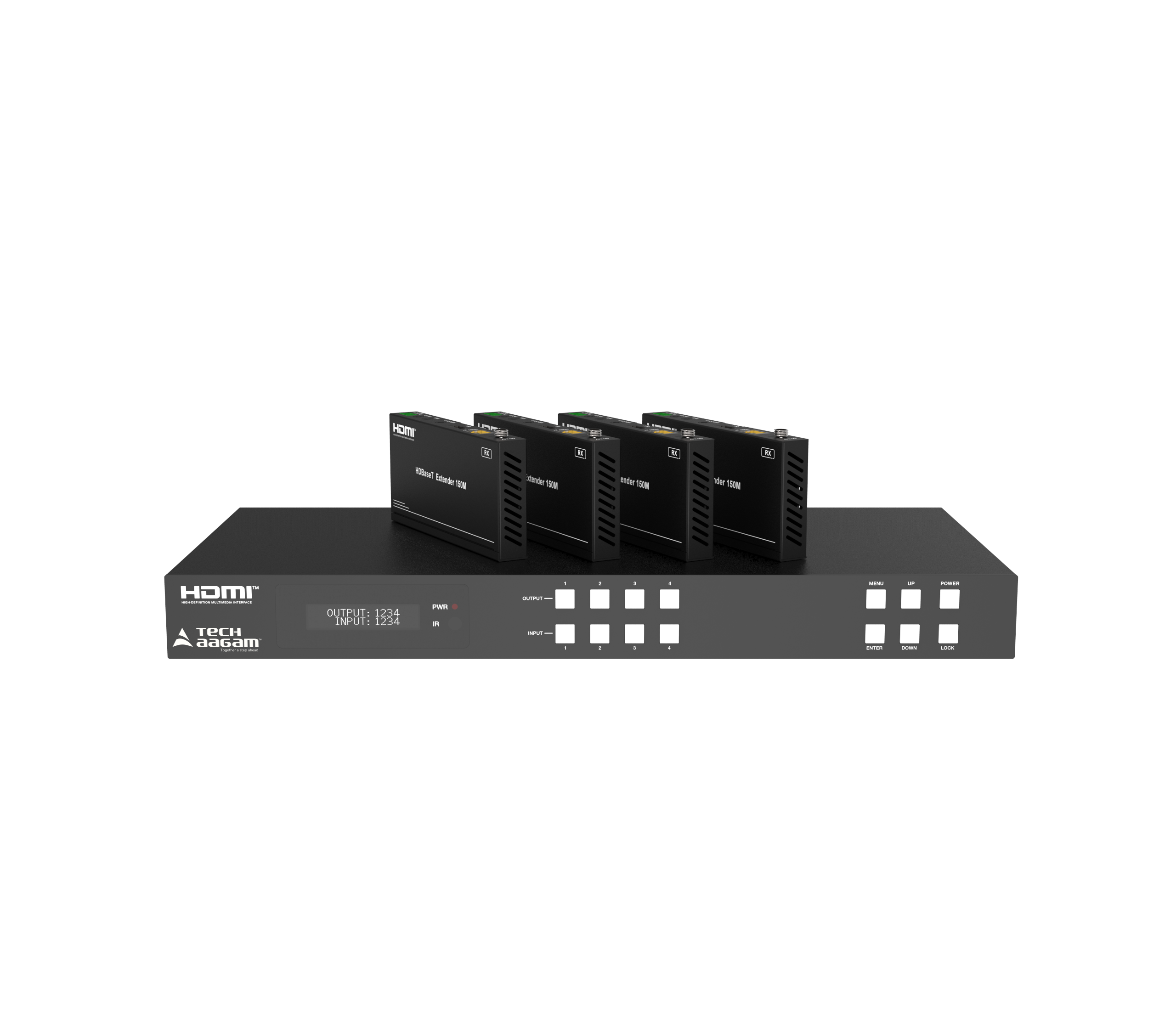

- 24V PoC support for HDBaseT receivers
- 1U rack-mountable metal chassis with OLED front display
