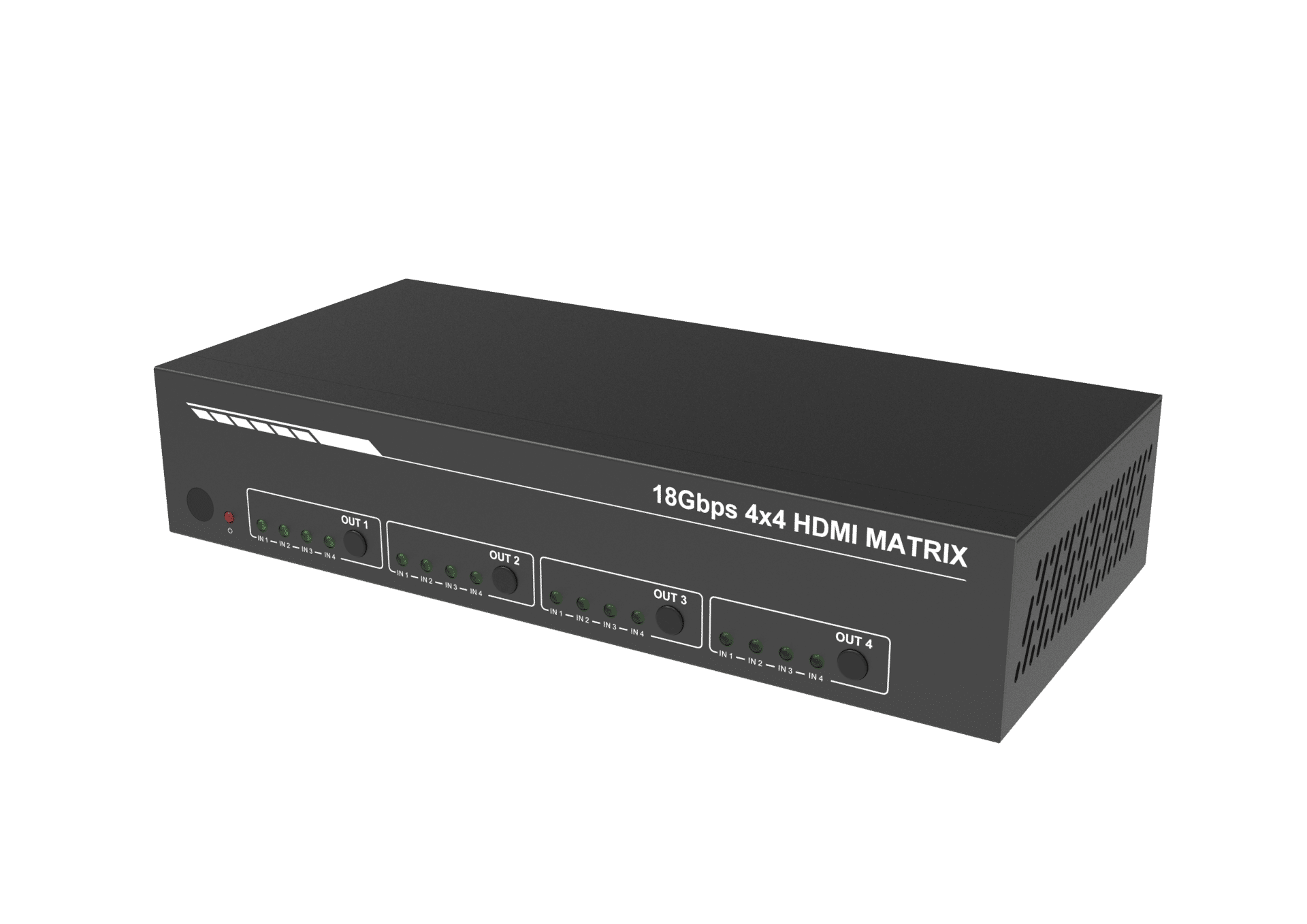

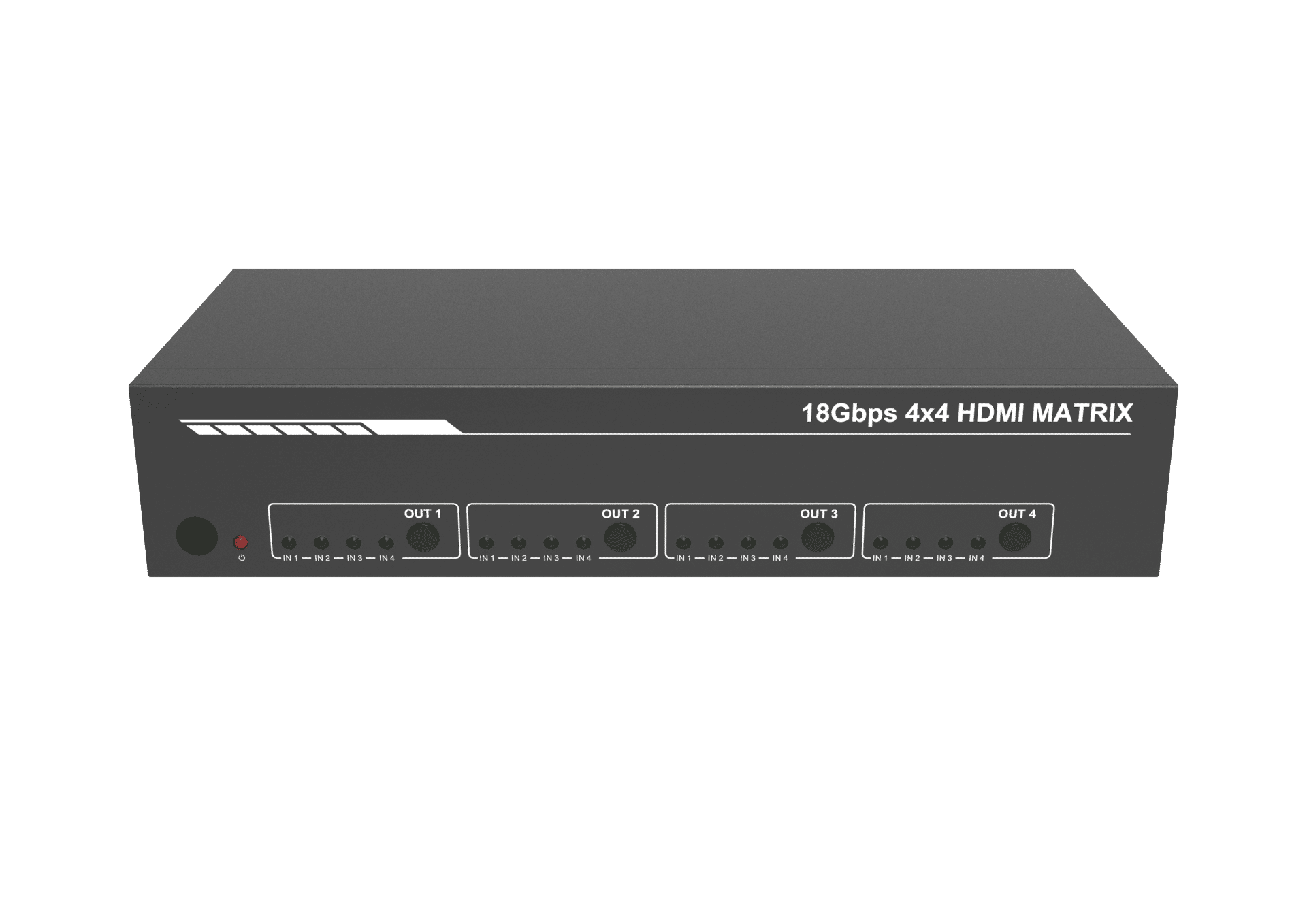

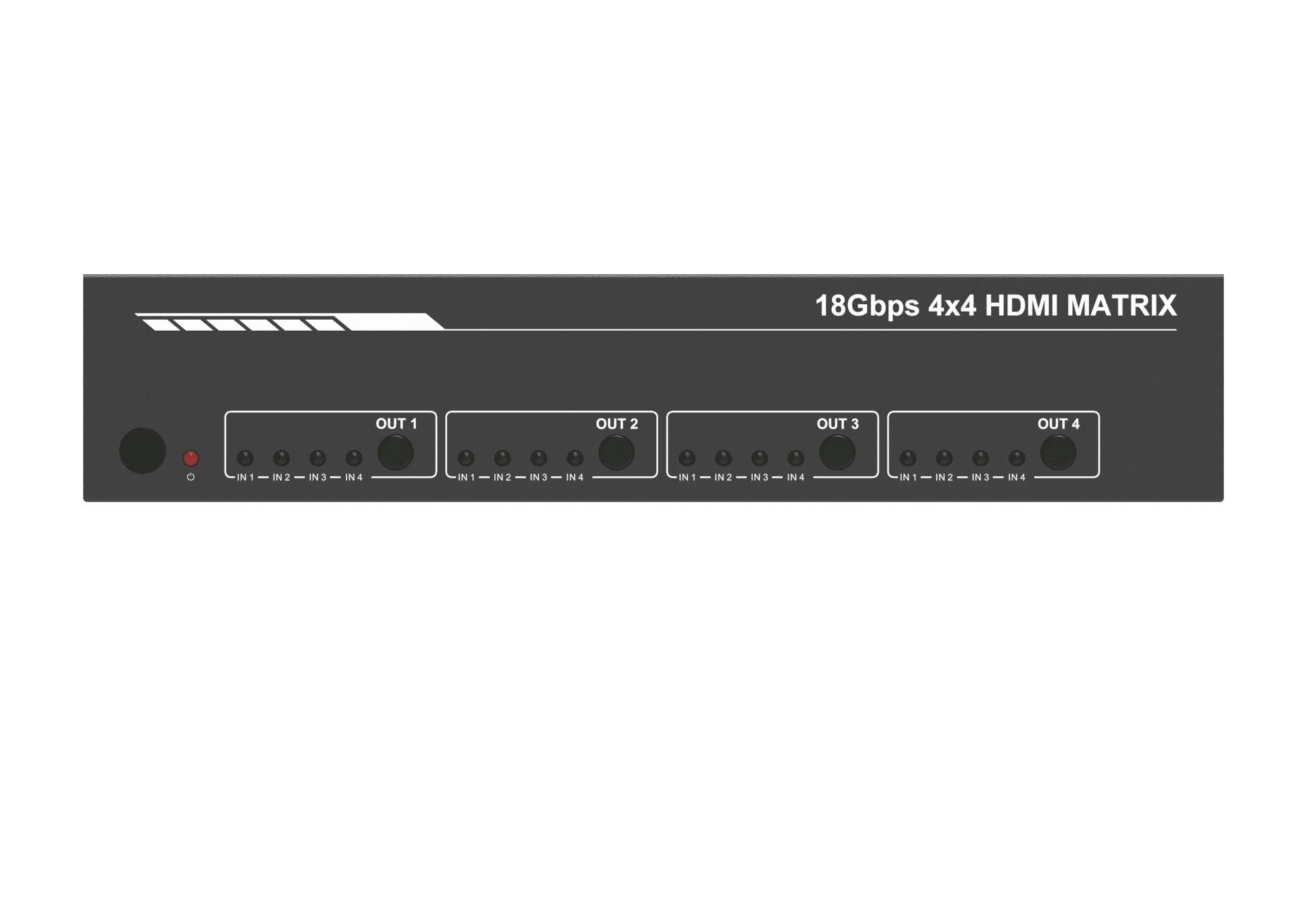

TA-MX44H-4K60-18G-ARC
The TA-MX44H-4K60-18G-ARC is a high-performance 4×4 HDMI matrix switcher designed for professional AV distribution in meeting rooms, control rooms, hospitality, and residential installations. It enables seamless routing of up to four HDMI sources to four independent displays, supporting ultra-high-definition resolutions up to 4K@60Hz (4:4:4) with full 18Gbps bandwidth.
With advanced features like independent output scaling, ARC (Audio Return Channel), and audio de-embedding, this matrix ensures maximum flexibility for modern AV systems. Integrated Web GUI, RS232, IR, and front panel control provide effortless system management and integration with third-party control systems.
- 4×4 HDMI Matrix Switching – Route any of 4 sources to any of 4 displays
- 4K60 Ultra HD Support – Up to 4K@60Hz 4:4:4, HDR formats supported
- 18Gbps Bandwidth – Full HDMI 2.0 performance
- Independent Output Scaling – Downscale 4K → 1080p per output
- ARC Support – Return audio from display to audio system
- Audio De-Embedding – Stereo (L/R) & Coaxial outputs
- Advanced EDID Management – Ensures optimal compatibility
- Multiple Control Options – Front panel, IR, RS232, TCP/IP (Web GUI)
- Compact & Reliable Design – Ideal for professional installations
Datasheet
Parameter | Specification |
Video Specifications | |
HDMI Standard | HDMI 2.0 |
HDCP Compliance | HDCP 2.2 / 1.4 |
Max Resolution | Up to 4K@60Hz (4:4:4) |
Bandwidth | 18 Gbps |
Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
Color Depth | Up to 12-bit (4K30), 8-bit (4K60 4:4:4) |
HDR Support | HDR10, HDR10+, Dolby Vision, HLG |
3D Support | Yes |
Scaling | Per output (4K → 1080p / Auto / Bypass) |
Audio Specifications | |
HDMI Audio Formats | PCM 2.0 / 5.1 / 7.1, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-HD |
Analog Audio Output | Stereo L/R (3.5mm) |
Digital Audio Output | Coaxial (RCA) |
ARC (Audio Return Channel) | Supported (via coaxial output) |
Audio De-embedding | Yes |
Input & Output | |
HDMI Inputs | 4 × HDMI Type-A |
HDMI Outputs | 4 × HDMI Type-A |
Analog Audio Outputs | 4 × L/R (3.5mm) |
Digital Audio Outputs | 4 × Coaxial (RCA) |
Control & Connectivity | |
Control Methods | Front Panel, IR Remote, RS232, TCP/IP (Web GUI) |
Ethernet | 1 × RJ45 |
RS232 | 1 × 3-pin Phoenix |
IR | R Receiver + IR EXT port |
EDID Management | Advanced EDID support |
Presets | Up to 4 presets |
Performance & Features | |
Switching | Matrix (any input to any output) |
Output Scaling | Independent per output |
CEC Control | Supported |
ARC Function | Yes |
Cable Recommendation | Premium High Speed HDMI |
Electrical & Environmental | |
Power Supply | DC 12V / 2.5A |
Power Consumption | 10W (Max), 1.56W (Standby) |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 60°C |
Humidity | 20% – 90% (non-condensing) |
ESD Protection | ±8kV air / ±4kV contact |
Mechanical | |
Dimensions (W×D×H) | 220 × 105 × 44 mm |
Weight | 792 g |
Enclosure | Metal |
Color | Black |
Compliances | CE, FCC, ROHS |

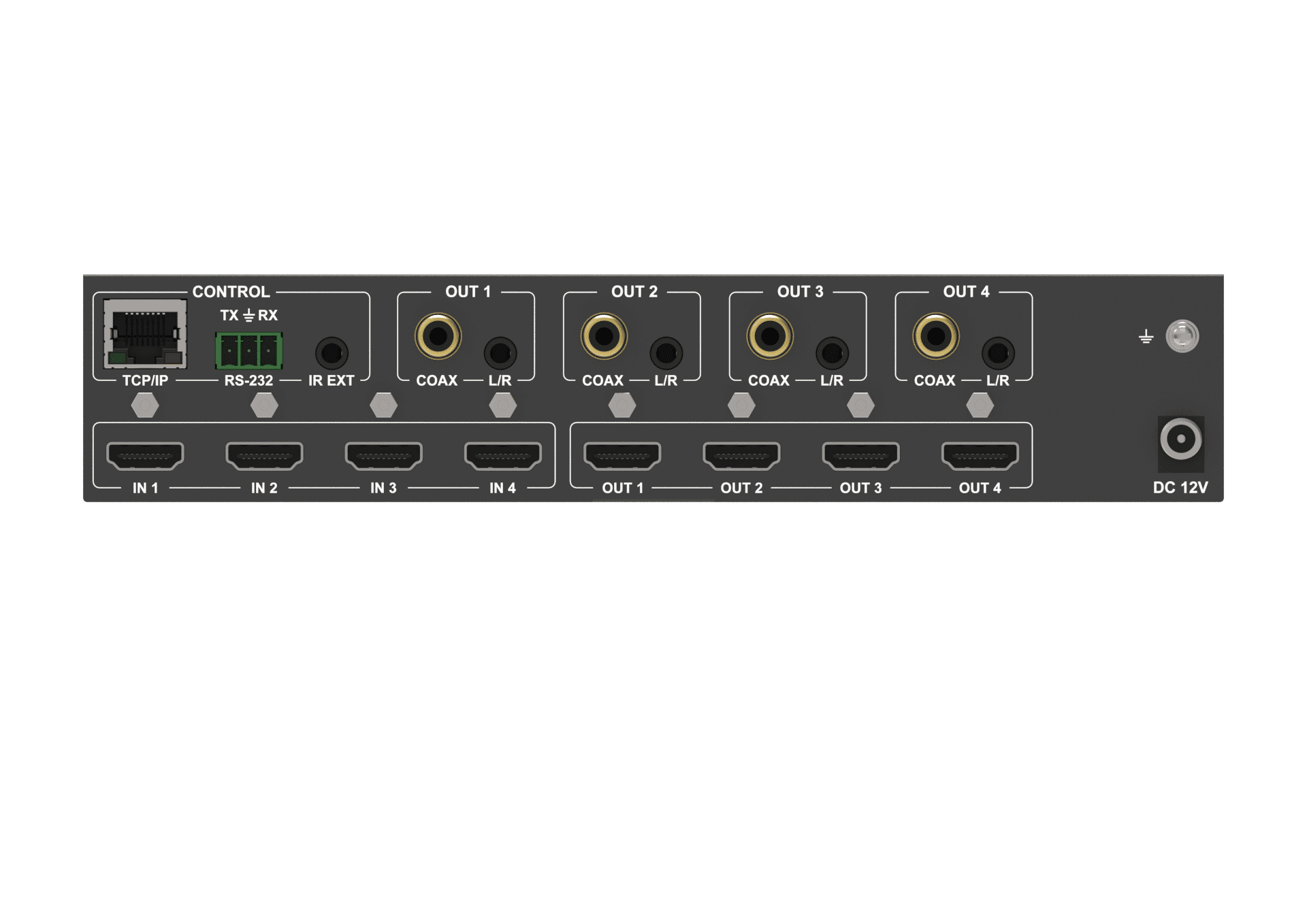

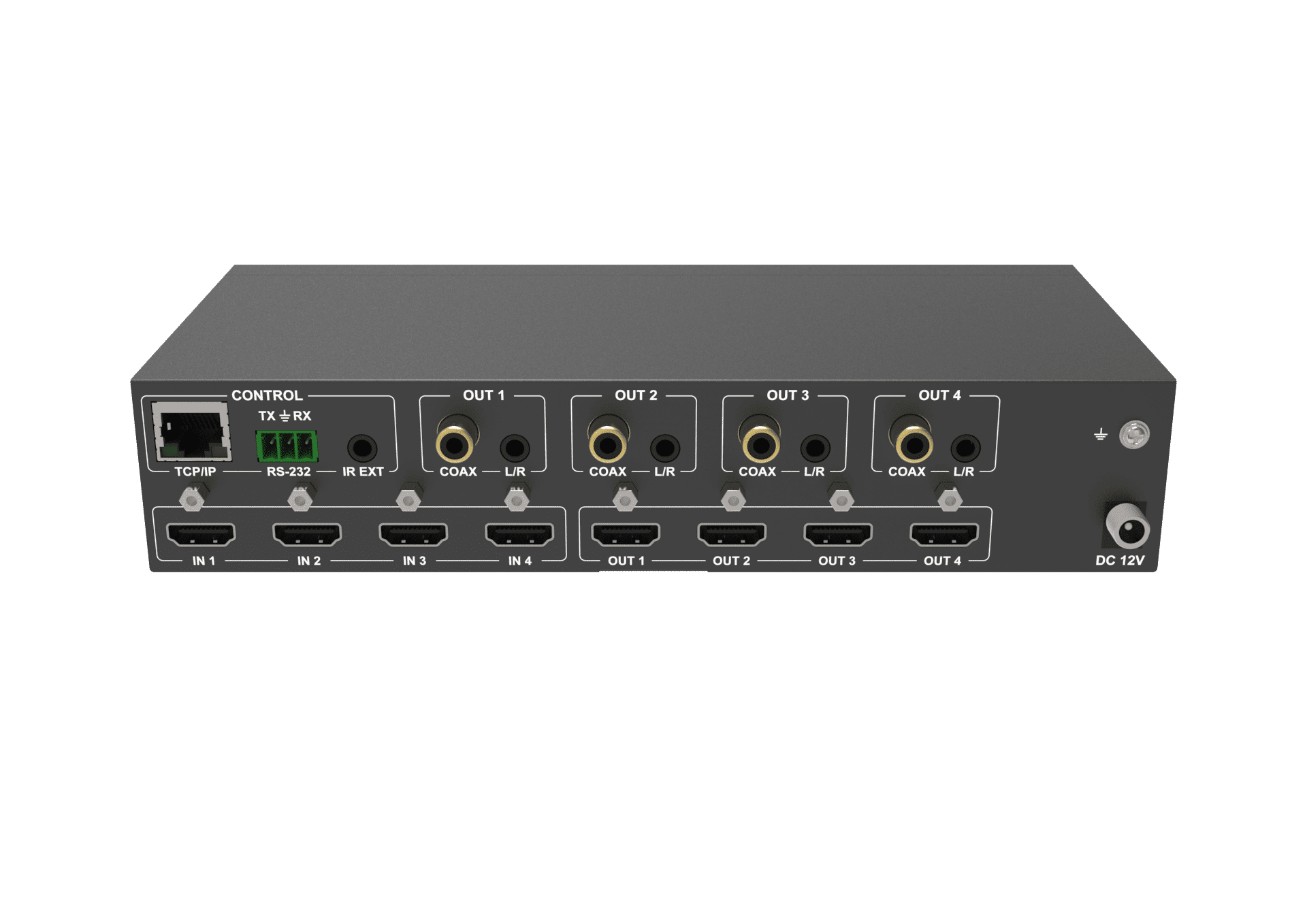

Diagram
