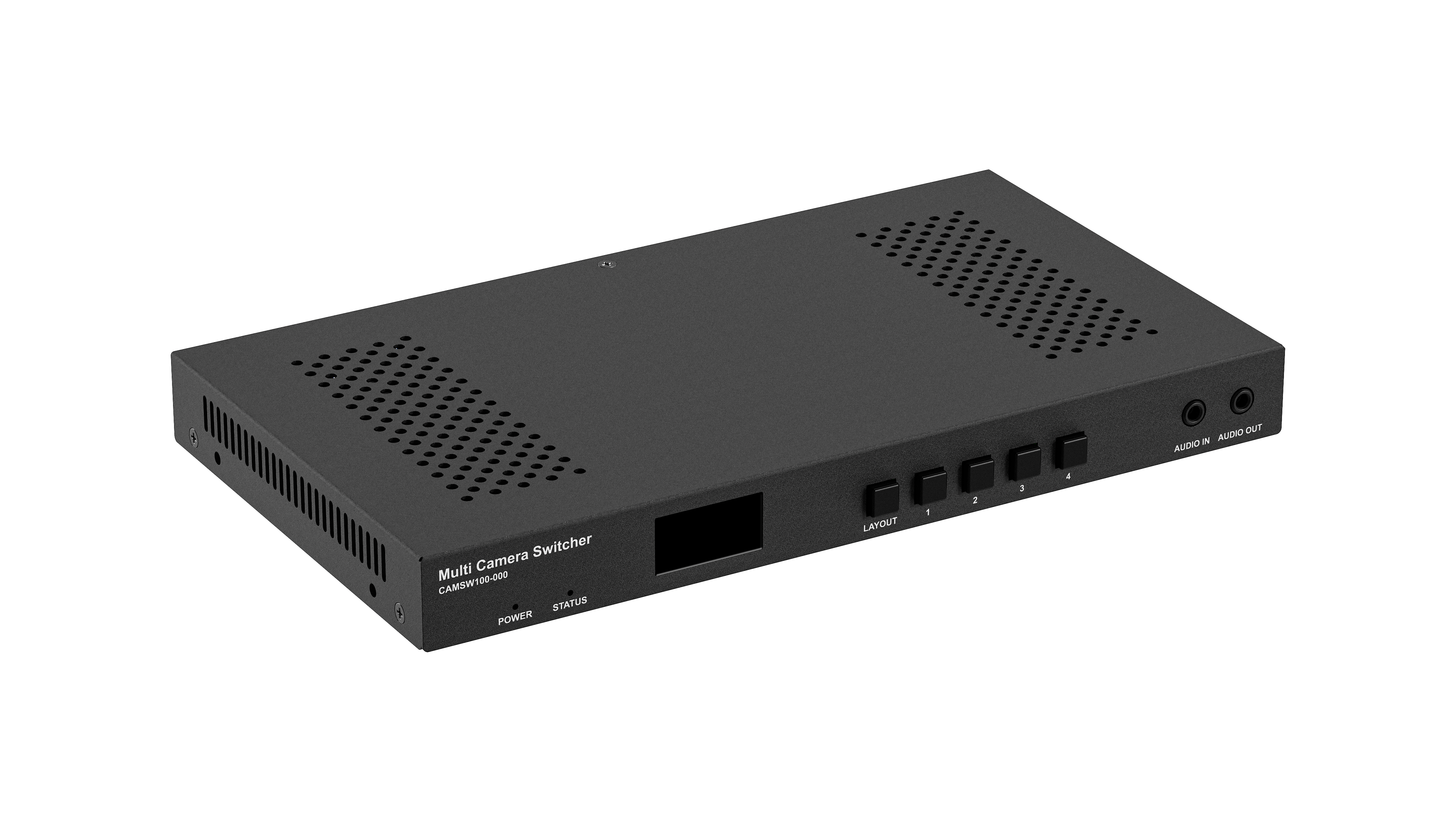

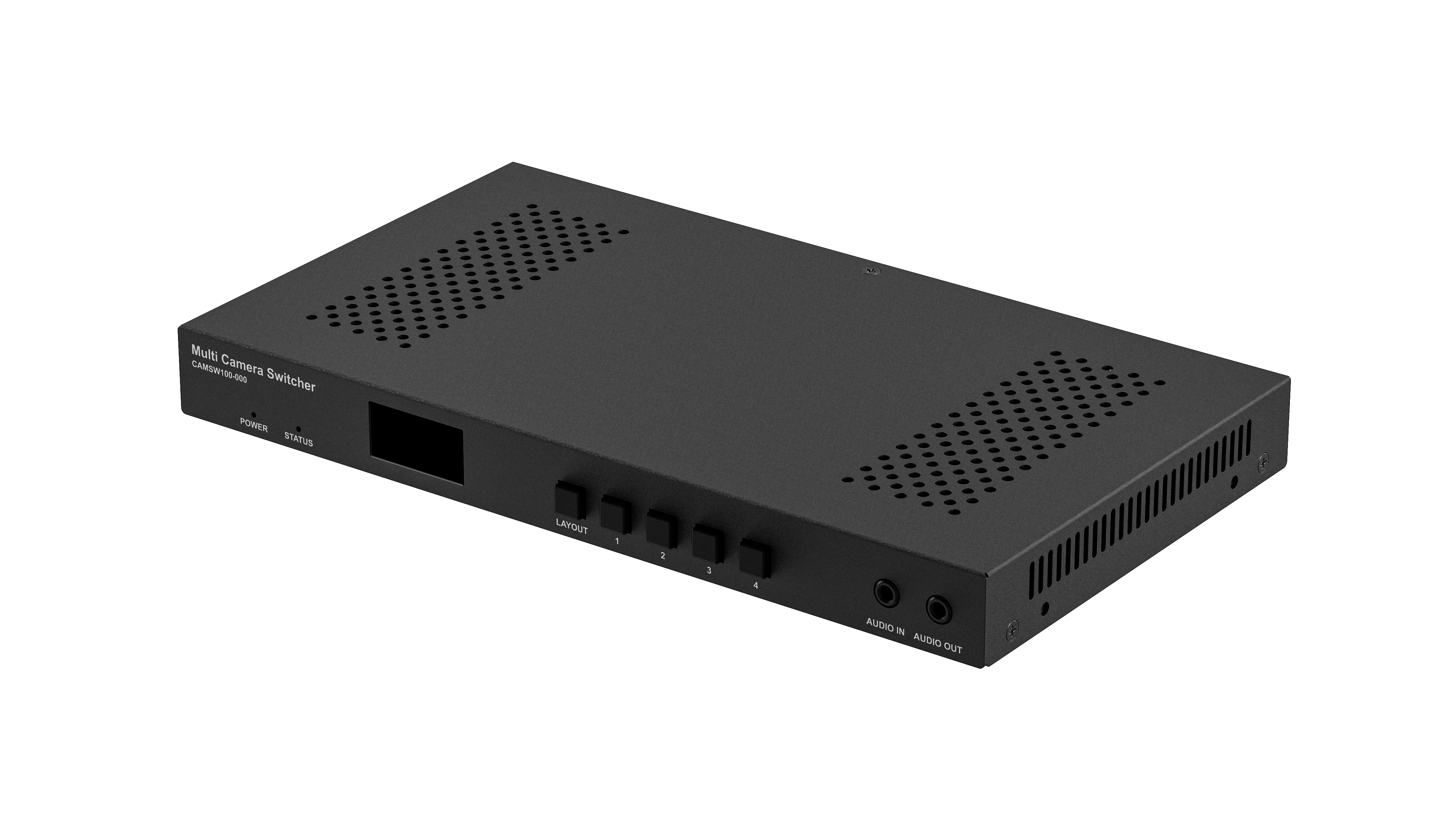

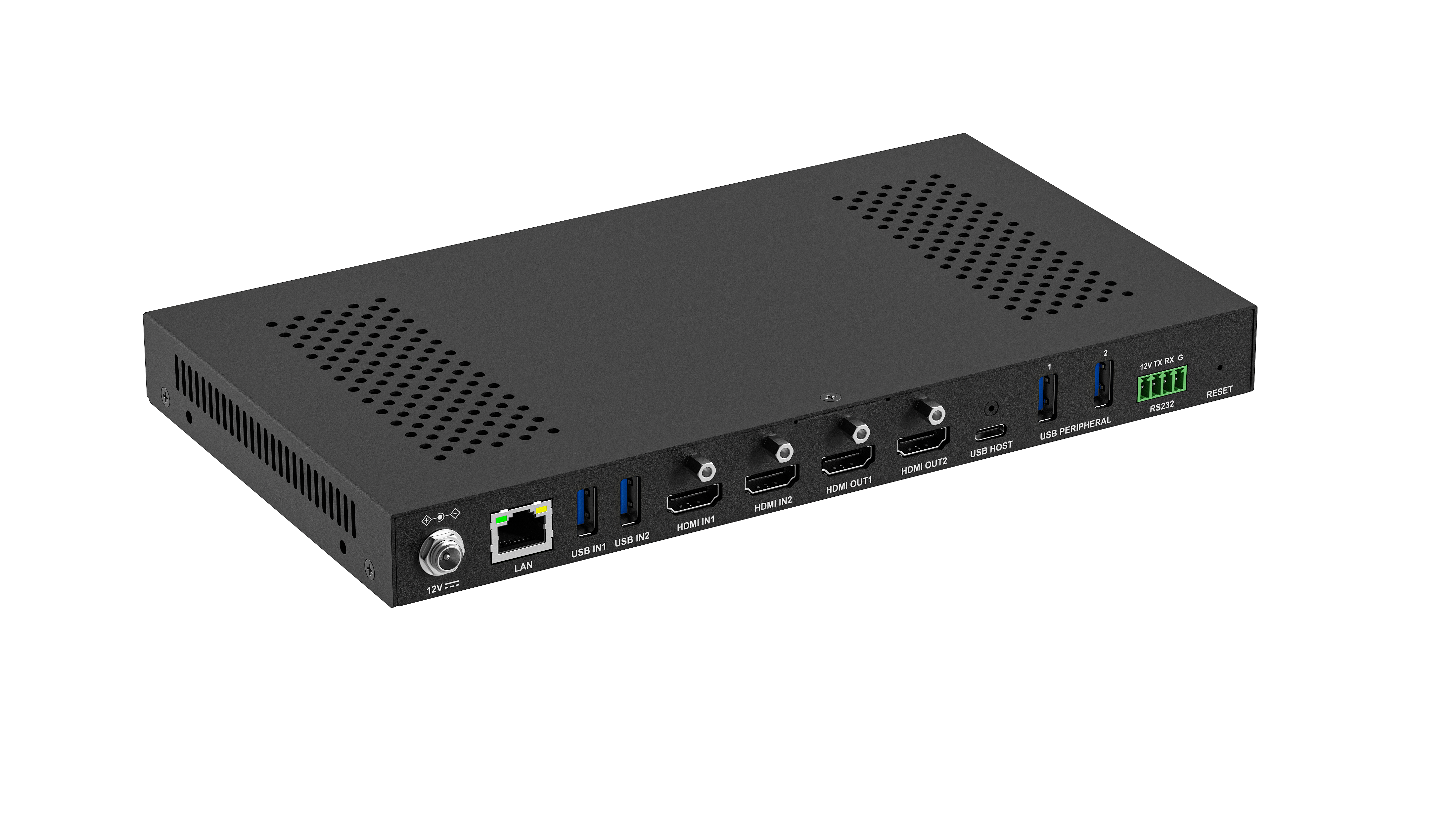

UNITY™ UC STUDIO TA-MCS42-4KNDI
TA-MCS42-4KNDI is a professional 4-input multi-camera switcher designed for hybrid meetings, live streaming, recording, and conferencing environments. It seamlessly combines HDMI, USB camera, and NDI® network sources into a single high-quality USB and HDMI output, enabling effortless integration with UC platforms and production workflows.
Supporting up to four wired sources (2× HDMI + 2× USB cameras) and four NDI network inputs, the system provides flexible multi-view layouts, fast seamless switching, and integrated audio processing — all within a compact, installation-friendly chassis.
Designed for Modern UC & Streaming Workflows
Whether used for conference rooms, lecture capture, content creation, or corporate live streaming, UNITY™ UC STUDIO simplifies multi-camera production by converting professional video sources into a single USB UVC stream compatible with Windows and macOS systems.
It functions as a powerful bridge between HDMI cameras and USB-based UC platforms such as Teams, Zoom, and other conferencing applications.
Feature Highlights
Multi-Camera Production Hub
Combine up to four video sources including HDMI cameras, USB cameras, and NDI streams into a single production workflow for conferencing and streaming.
Native NDI® Integration
Supports up to four NDI inputs and mirrored NDI output, enabling flexible IP-based video production without additional converters.
USB UVC Output for UC Platforms
Outputs mixed video as a standard USB camera feed compatible with conferencing platforms on Windows and macOS.
Flexible Multi-View Layouts
Choose from preset layouts such as Single View, Picture-in-Picture, Side-by-Side, Pyramid, and Quad View for dynamic presentations.
Seamless Source Switching
Fast switching ensures smooth transitions between cameras and content without visual interruptions.
Dual HDMI Outputs
Provides a primary HDMI output up to 4K60 and a mirrored HDMI output for monitoring or confidence display.
USB + HDMI + NDI Workflow Integration
Bridges traditional AV cameras with modern IP workflows, allowing hybrid production environments without complexity.
Built-In Audio Matrix
Integrated analog audio input/output with internal routing and mixing enables synchronized audio-video workflows.
Plug-and-Play Operation
Works instantly with popular conferencing and streaming software without additional drivers.
Web GUI & API Control
Full system configuration and automation through browser-based interface, LAN API, or RS-232 integration.
BYOD & Camera Compatibility
Supports both USB cameras and HDMI video sources, allowing flexible camera selection and laptop content integration.
Compact Integration Design
All-in-one switching, streaming, and USB conversion reduces equipment count and simplifies installations.
Ideal Applications
- Hybrid meeting rooms
- Lecture capture systems
- Live streaming studios
- Corporate training environments
- Content creation setups
- Small and medium conference rooms
Why UNITY™ UC STUDIO?
UNITY™ UC STUDIO TA-MCS42-4KNDI brings together multi-camera switching, USB conversion, and NDI networking into a single streamlined platform — eliminating the need for separate capture cards, converters, and external processors.
It simplifies installation while delivering professional-grade video production performance for modern collaboration spaces.
A unified multi-camera switching platform that bridges AV, USB, and IP video workflows for modern collaboration and streaming environments.
Datasheet
Category | Specification |
Product Type | Multi-Camera Switcher with USB, HDMI & NDI |
Video Inputs (Physical) | 2 × HDMI (up to 4K@30) |
2 × USB 3.0 Type-A (USB cameras up to 4K@30) | |
Video Inputs (Network) | Up to 4 × NDI inputs (H.264/H.265, up to 4K@30) |
Video Outputs | 1 × HDMI OUT1 (up to 4K@60) |
1 × HDMI OUT2 (Mirror of USB output, up to 4K@30) | |
1 × USB HOST Type-C (UVC/UAC, mirror of HDMI OUT2, up to 4K@30) | |
1 × NDI Output (mirror of USB HOST & HDMI OUT2) | |
Multiview Modes | Single, PIP, Side-by-Side, Pyramid, Quad |
Switching | Fast seamless switching |
Audio Input | 1 × Analog stereo (3.5mm TRS) |
Audio Output | 1 × Analog stereo (3.5mm TRS) |
Audio Processing | Built-in audio matrix with routing & mixing |
USB Protocols | UVC, UAC, USB HID |
USB Camera Support | Up to 3840×2160@30 (single), 1080p60 dual |
NDI Bitrate | Up to 16 Mbps |
HDCP Support | HDCP 1.4 & HDCP 2.2 |
CEC Support | HDMI output supports CEC control |

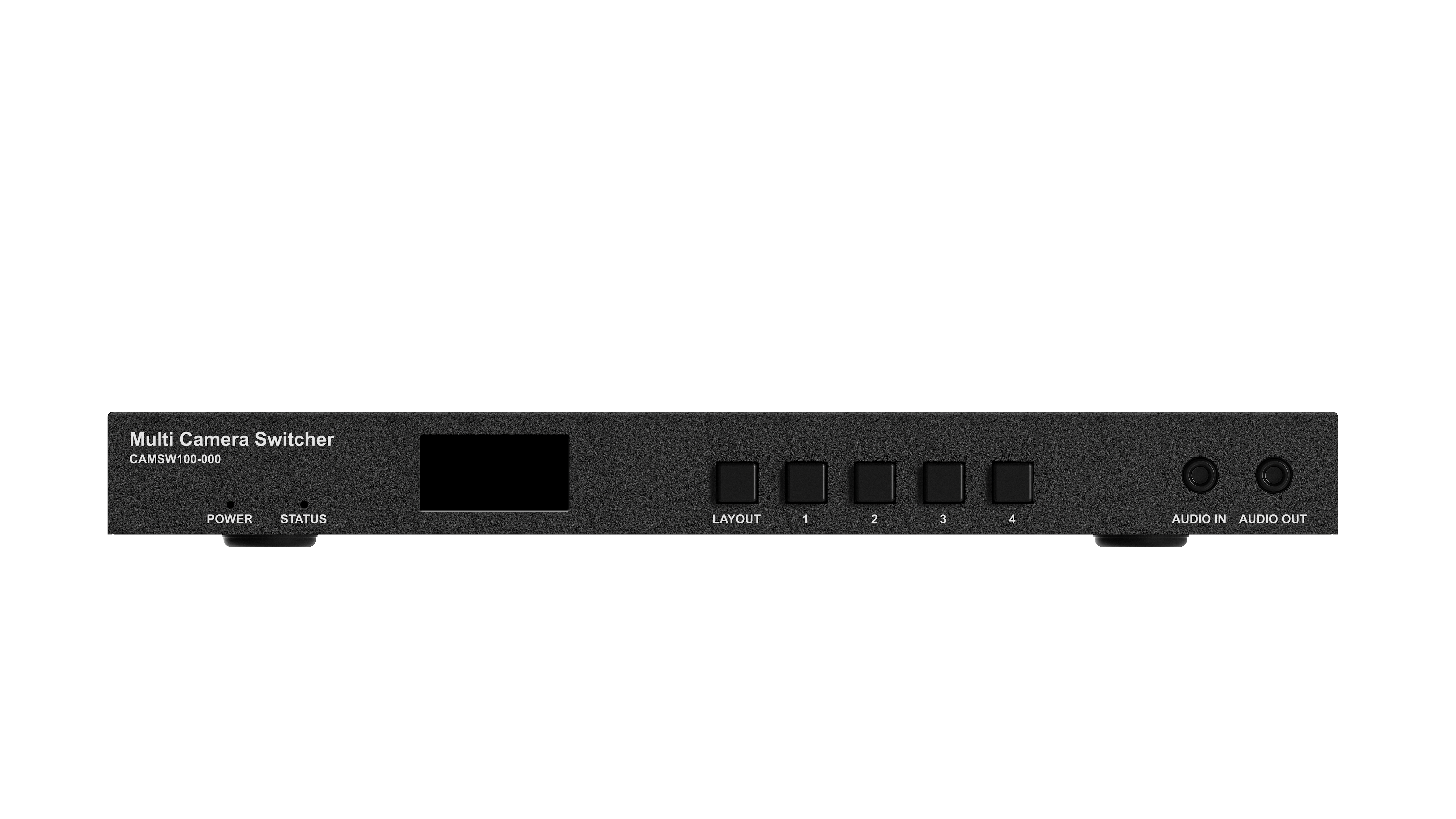

Control Methods | Front panel buttons, Web GUI, API via LAN, RS-232 |

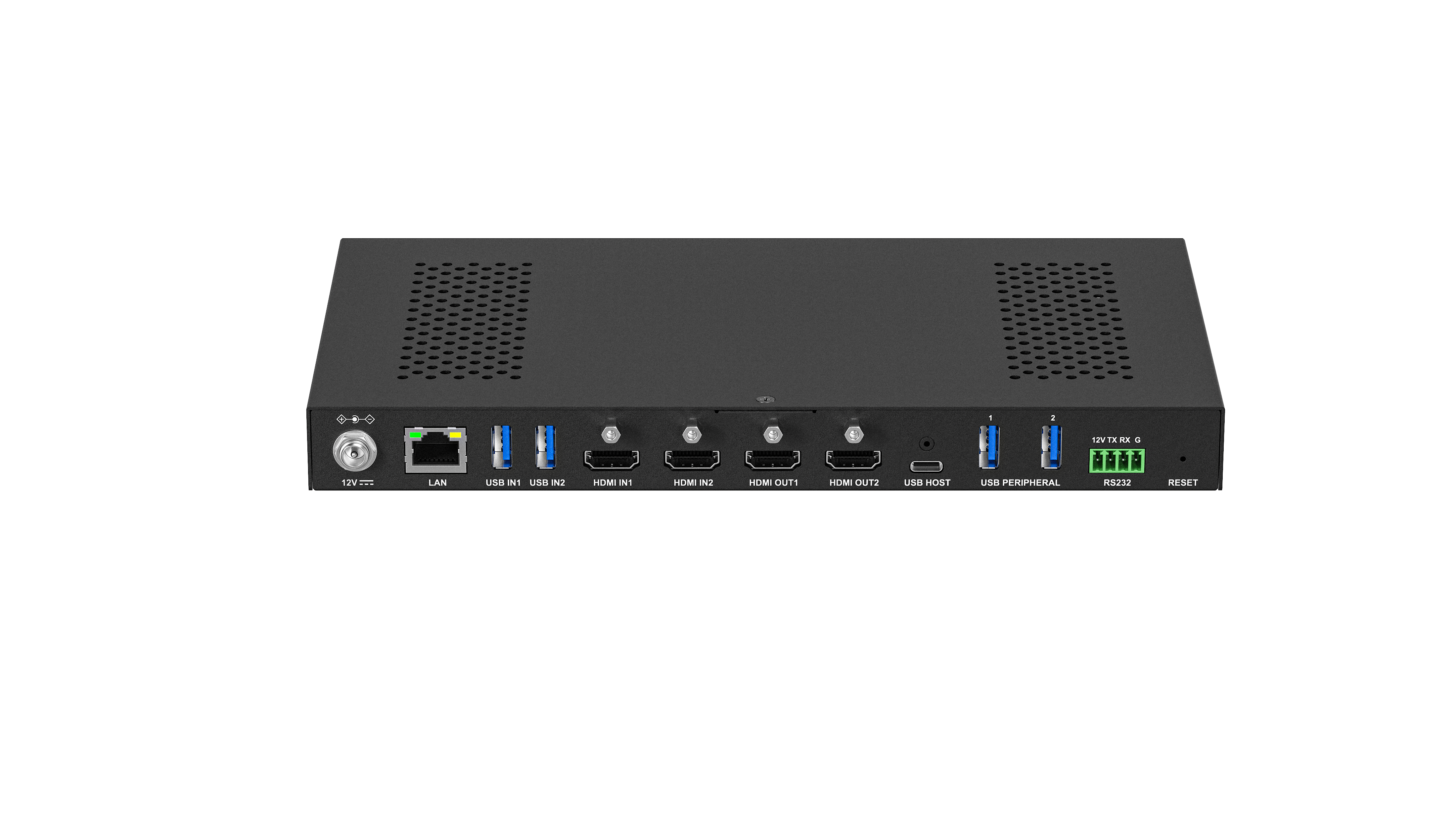

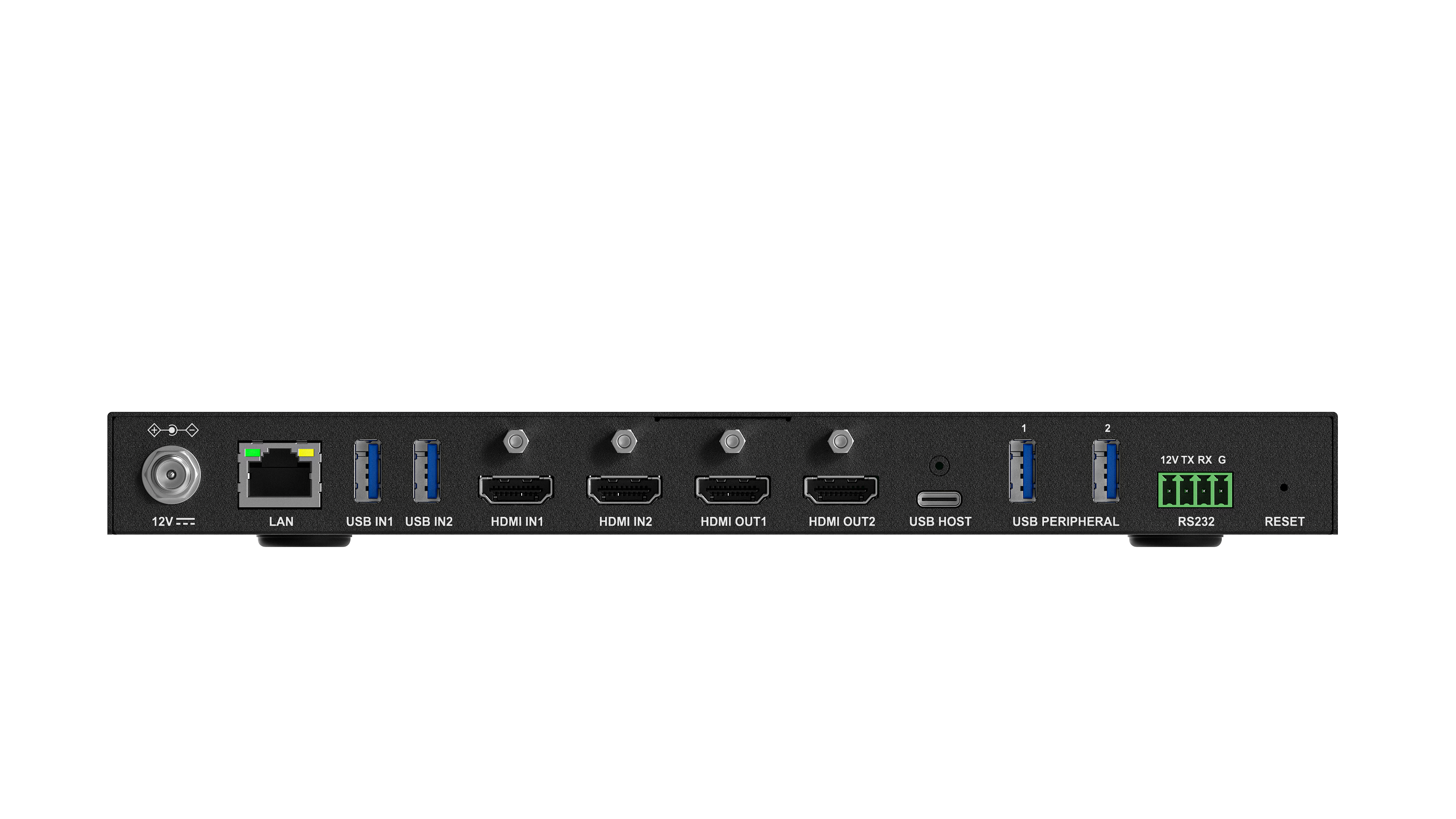

Network | 1 × RJ45 (Gigabit Ethernet for NDI & control) |
USB Peripheral Ports | 2 × USB 3.0 Type-A |
Operating Systems | Windows 10 or above, macOS 10.15 or above |
EDID Management | Configurable via Web UI/API |
Firmware Upgrade | Web UI |
Power Supply | DC 20V / 3A |
Dimensions | 250 mm × 25 mm × 140 mm (W × H × D) |
Construction | Sheet steel enclosure |
Installation | Under-table mounting supported |
Compliance | CE, ROHS, FCC, WEEE |
Diagram
