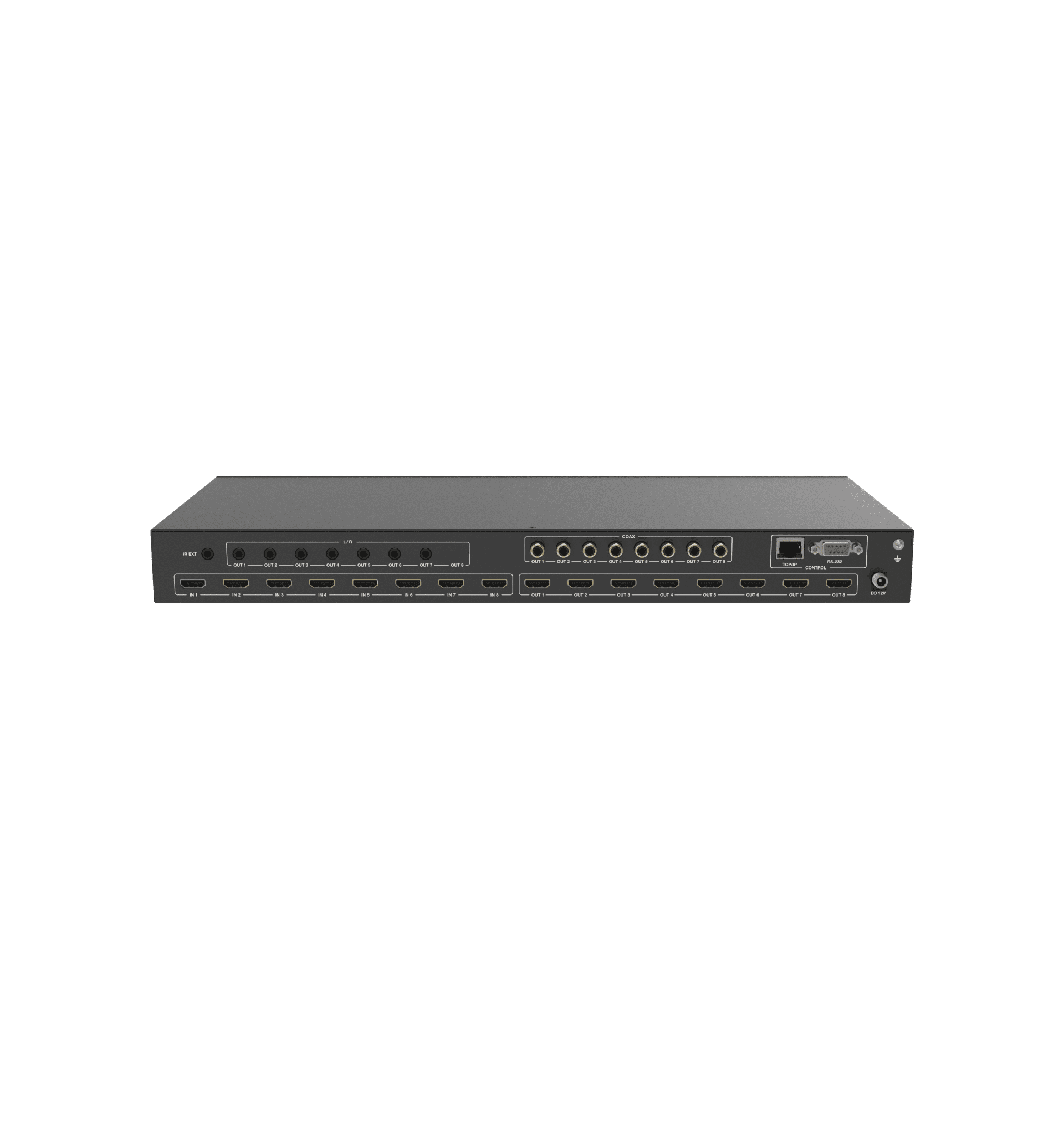

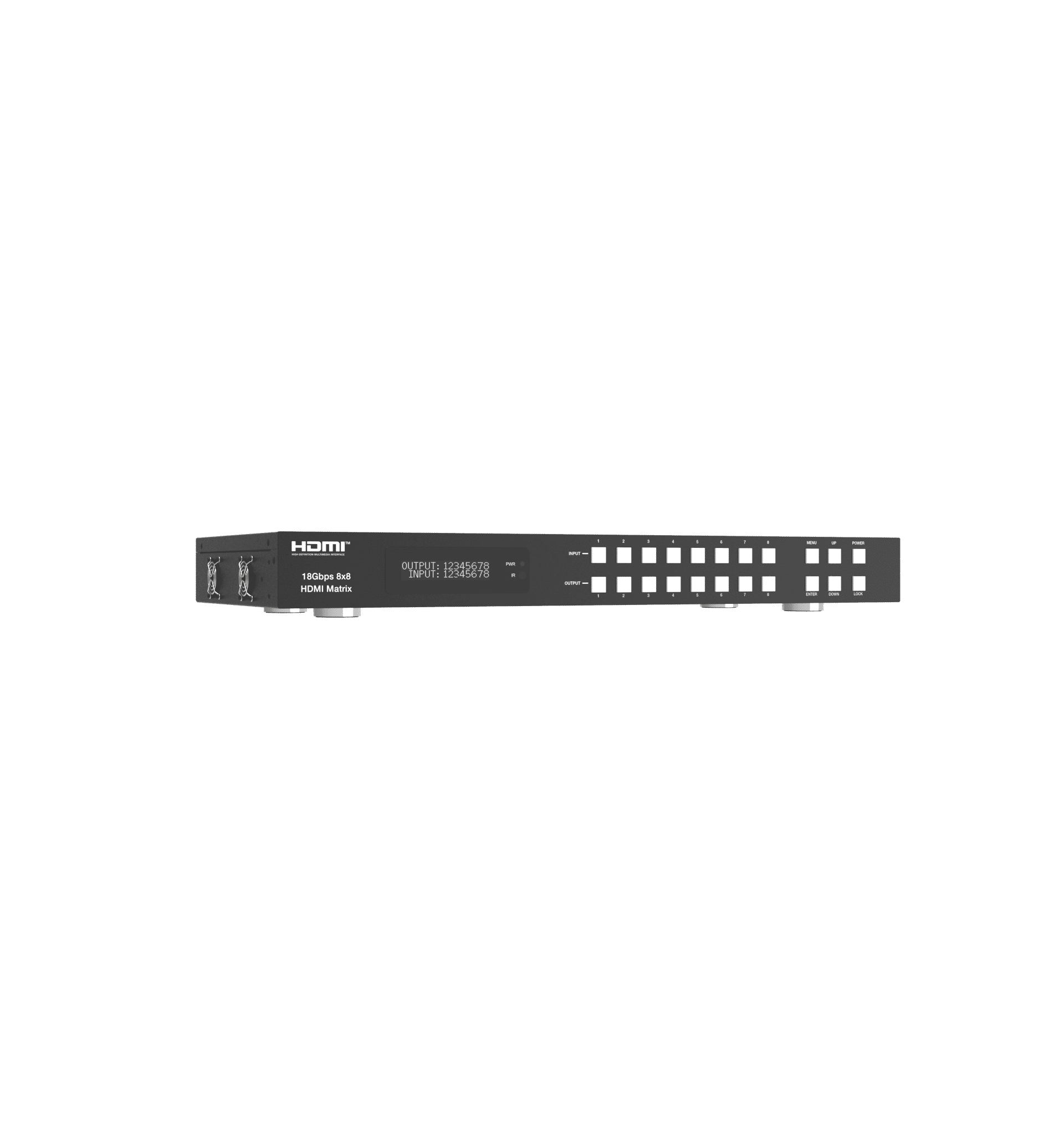

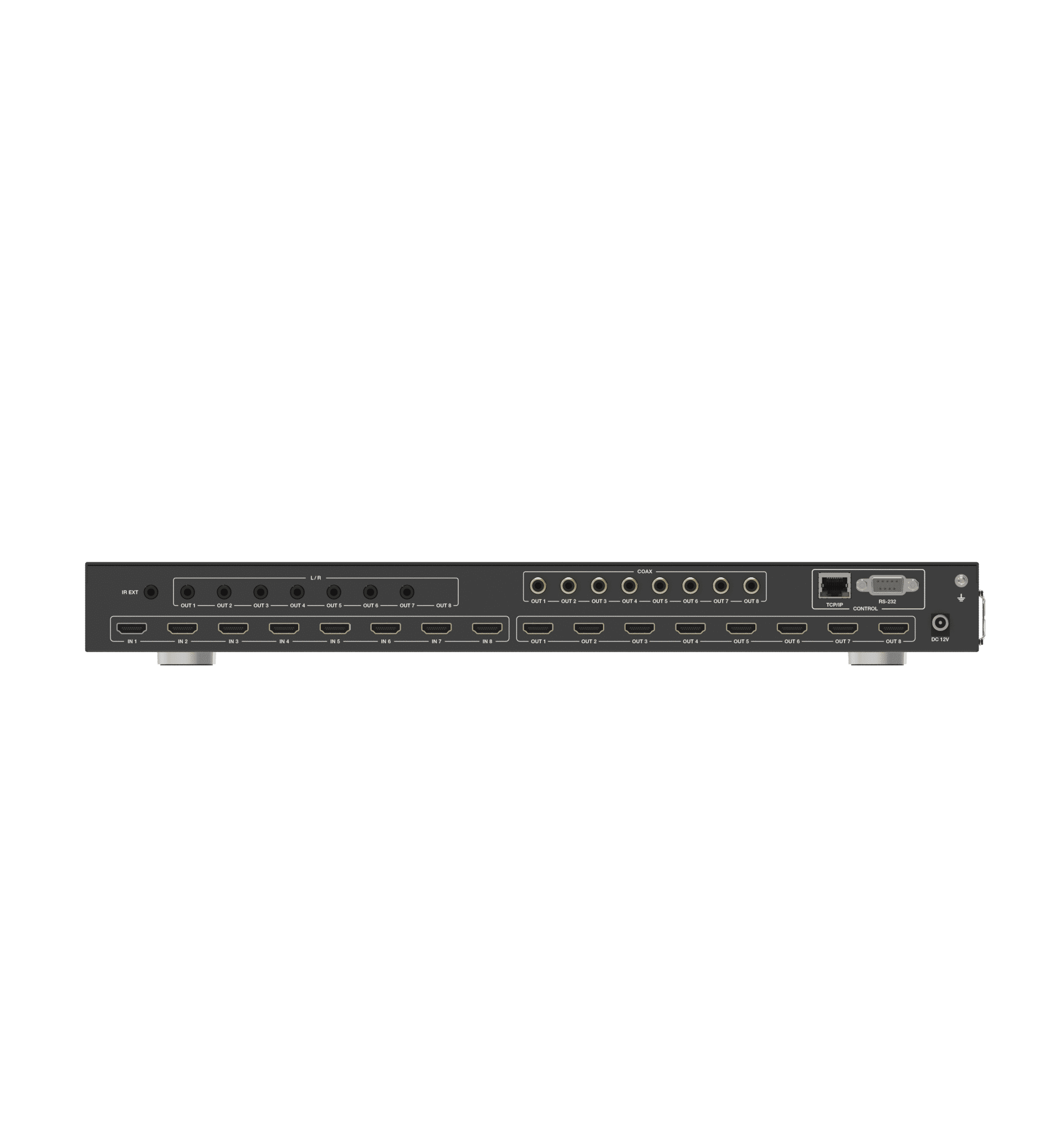

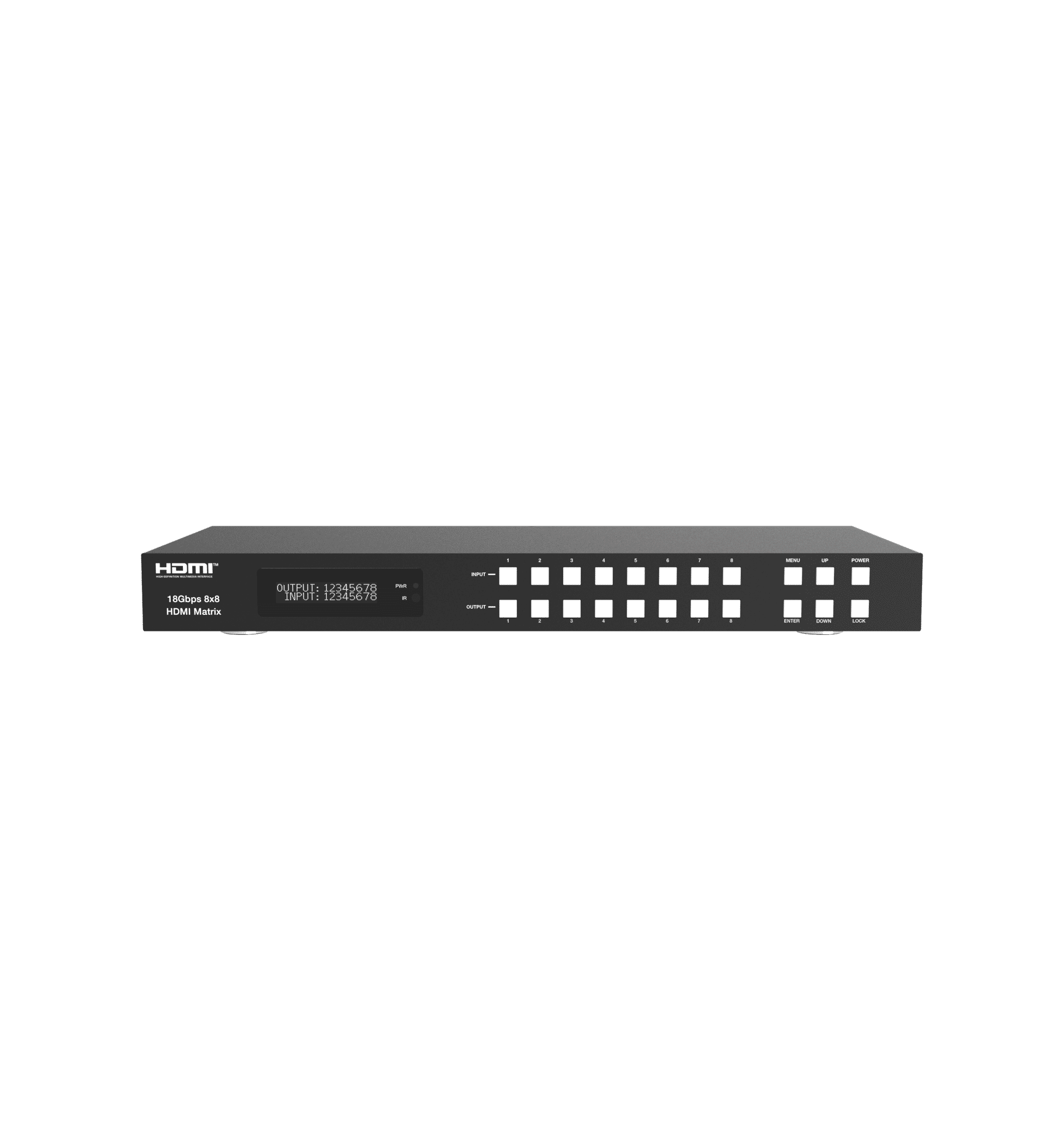

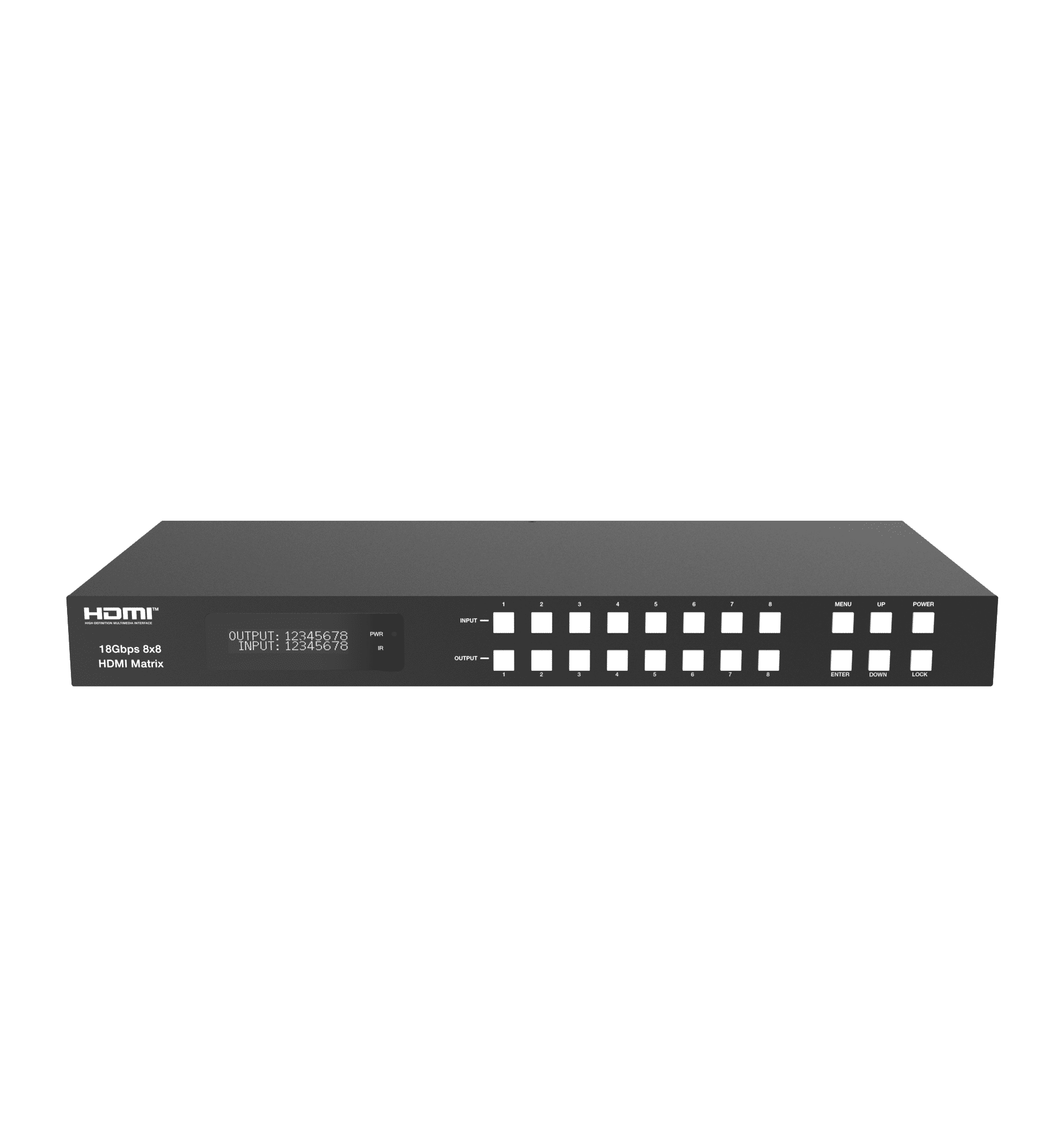

TA-MX88-4K60-18G-ARC
18Gbps 8x8 HDMI Matrix with ARC, Downscaler & Audio De-Embedding
The TA-MX88-4K60-18G-ARC is a professional 8×8 HDMI matrix designed for high-performance Pro-AV installations. It routes eight HDMI sources to eight independent displays while delivering full 18Gbps bandwidth, 4K@60Hz 4:4:4 video, HDR formats, and advanced audio management.
Engineered for corporate boardrooms, training centers, hospitality environments, control rooms, and residential AV systems, this matrix ensures seamless switching, reliable signal integrity, and flexible system integration.
Key Highlights
- 8×8 HDMI Matrix Switching – Route any input to any output independently
- Full 18Gbps Bandwidth – Supports 4K@60Hz 4:4:4 on all HDMI ports
- HDR Ready – HDR10, HDR10+, Dolby Vision, HLG
- HDCP 2.2 / 1.4 Compliant
- Independent 4K → 1080p Downscaler on each output
- ARC (Audio Return Channel) extraction from display devices
- Audio De-Embedding – Analog L/R & Coaxial digital outputs per channel
- HD Audio Support – Dolby TrueHD, DTS-HD MA, Dolby Atmos, DTS:X
- Smart EDID Management (Preset, Copy & User modes)
- Multi-Control Options – Front panel, IR remote, RS-232, LAN, Web GUI
- 1U Rack-Mount Design with OLED front display
Datasheet
Category | Specification |
Model Name | TA-MX88-4K60-18G-ARC |
Function | 8×8 HDMI Matrix Switch with ARC, Downscaler & Audio De-Embed |
HDMI Version | HDMI 2.0b |
HDCP Support | HDCP 2.2 / 1.4 |
Maximum Bandwidth | 18 Gbps per HDMI port |
Maximum Resolution | 4K2K@60Hz (4:4:4) |
HDR Support | HDR10, HDR10+, Dolby Vision, HLG |
Color Depth | Up to 12-bit Deep Color |
Chroma Subsampling | 4:4:4 |
Input Ports | 8 × HDMI |
Output Ports | 8 × HDMI |
Signal Type | TMDS |
Downscaler | Independent 4K → 1080p per output |
Audio Formats Supported | LPCM 2-ch, 5.1, 7.1, Dolby TrueHD, DTS-HD MA, Atmos, DTS:X |
Audio Return Channel (ARC) | Yes (per display) |
Audio De-Embed Outputs | 8 × Analog L/R (3.5 mm), 8 × Coaxial S/PDIF |
EDID Management | Smart EDID: Preset / Copy / User |
Control Interfaces | Front Panel, IR Remote, RS-232, TCP/IP (Web GUI) |
IR Remote Included | Yes |
Ethernet Control | Yes (Web GUI & Telnet) |
RS-232 Protocol | Supported (DB9) |
Display | Front OLED Status Display |
Signal Equalization | Automatic EQ & Reclocking |
Cables Supported | Up to 4K HDMI cables (18 Gbps rated) |
Power Supply | 100-240 V AC → 12 V DC / 5 A Adapter |
Power Consumption | ~25 W (typical) |
Operating Temperature | 0 °C ~ 40 °C |
Storage Temperature | -20 °C ~ 60 °C |
Operating Humidity | 10% ~ 90% RH (non-condensing) |
Dimensions (WxDxH) | 440 × 200 × 44.5 mm (1U rack) |
Weight | ~2.8 kg |
Mounting | 1U Rack Mountable |
Certifications | CE, FCC, RoHS |
Included Accessories | IR Remote, RS-232 Cable, Power Adapter, Rack Ears |
