USB3.2 Gen2 Hybrid Type-C Full Featured AOC Cable
Techaagam’s USB type-C full-featured active optical cable (AOC) uses optical fiber as the high-speed signal transmission medium, it can perfectly transmit USB 2.0, USB 3.1 Gen1, and 2-lane DP 1.4 data (DATA-10GBPS, AUDIO/VIDEO(4K), PD(60W)) excellent signal quality to 15m max. It is softer, slimmer, lighter, and with perfect EMI/EMC features.
- TA-CP187 USB 3.2 Gen1 DP 2-lane 5G Type-C AOC SPEC.1

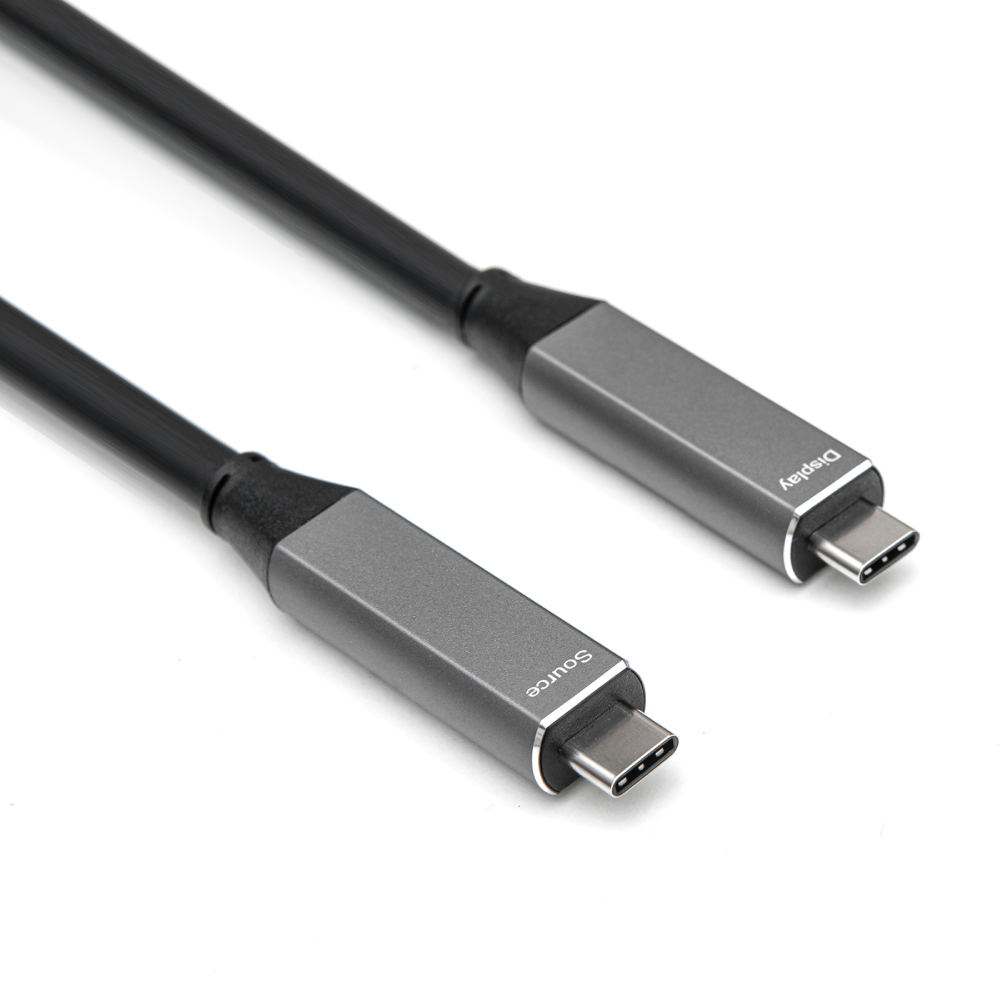

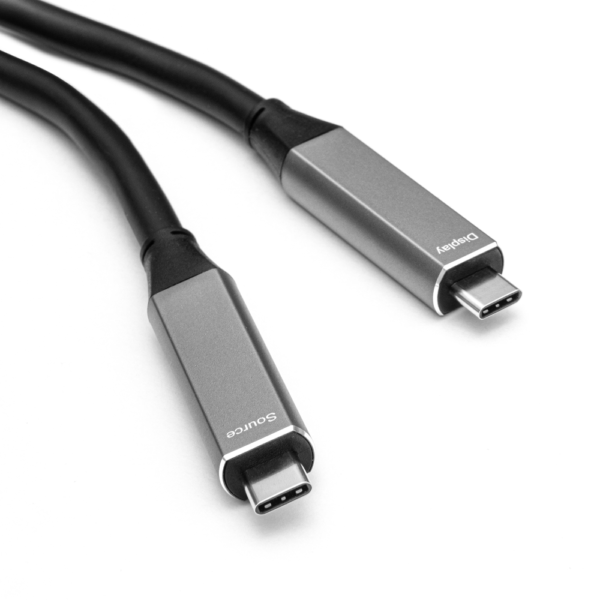

- TA-CP187 USB C FULL FEATURED CABLE DP2 LANE
- Description
Description
Key Features
◆ Support USB 3.2 Gen1 at 5Gbps
◆ Support USB 2.0/1.1 high-speed and full-speed
◆ Support 2-lane DP 1.4 at 4K@60Hz and 18Gbps
◆ Plug and play without driver dependent
◆ High reliability
◆ Thinner, lighter and softer than conventional copper cable
◆ Highly resistant to EMI and RFI
◆ Support PD 60W (20V/3A)
◆ Support max length up to 15m
Applications
◆ Digital Signage
◆ LED signboards in streets and stadiums
◆ Medical Imaging Equipment
◆ Airplane On-board Video System
◆ Home Theater
◆ Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer
◆ TV Broadcast Station
◆ Conference Room Video Equipment
◆ Security systems
Absolute Maximum Rating
| Parameter | Symbol | Min | Max | Unit |
| Power Supply Voltage | VCC | 3.0 | 5.5 | V |
| Operating Temperature | Top | 0 | 50 | °C |
| Storage Temperature | Ts | -40 | 70 | °C |
| Relative Humidity | Hs | 10 | 80 | %RH |
Specifications
| Item | Description |
| Cable Length | up to 15m |
| Interface | USB type-C plug – USB type-C plug |
| Bandwidth | U3:5Gbps; U2： 480Mbps； DP1.4 8.1Gbps X 2 |
| Power Delivery | PD3.0, 20V 3A |
| Power Supply | By Vconn(3.0 V to 5.5V) |
| Power Consumption (TYP.) | 1200mW (5V input) |
| Cable Outer Diameter | 6.5mm |
| Jacket Outer Material | PVC |
| Cable Filler | Kevlar |
| Cable Weight | See packing details sheet |
| Cable Color | Black |
| Bend Radius | 10OD |
| Tensile Strength | 200N |
