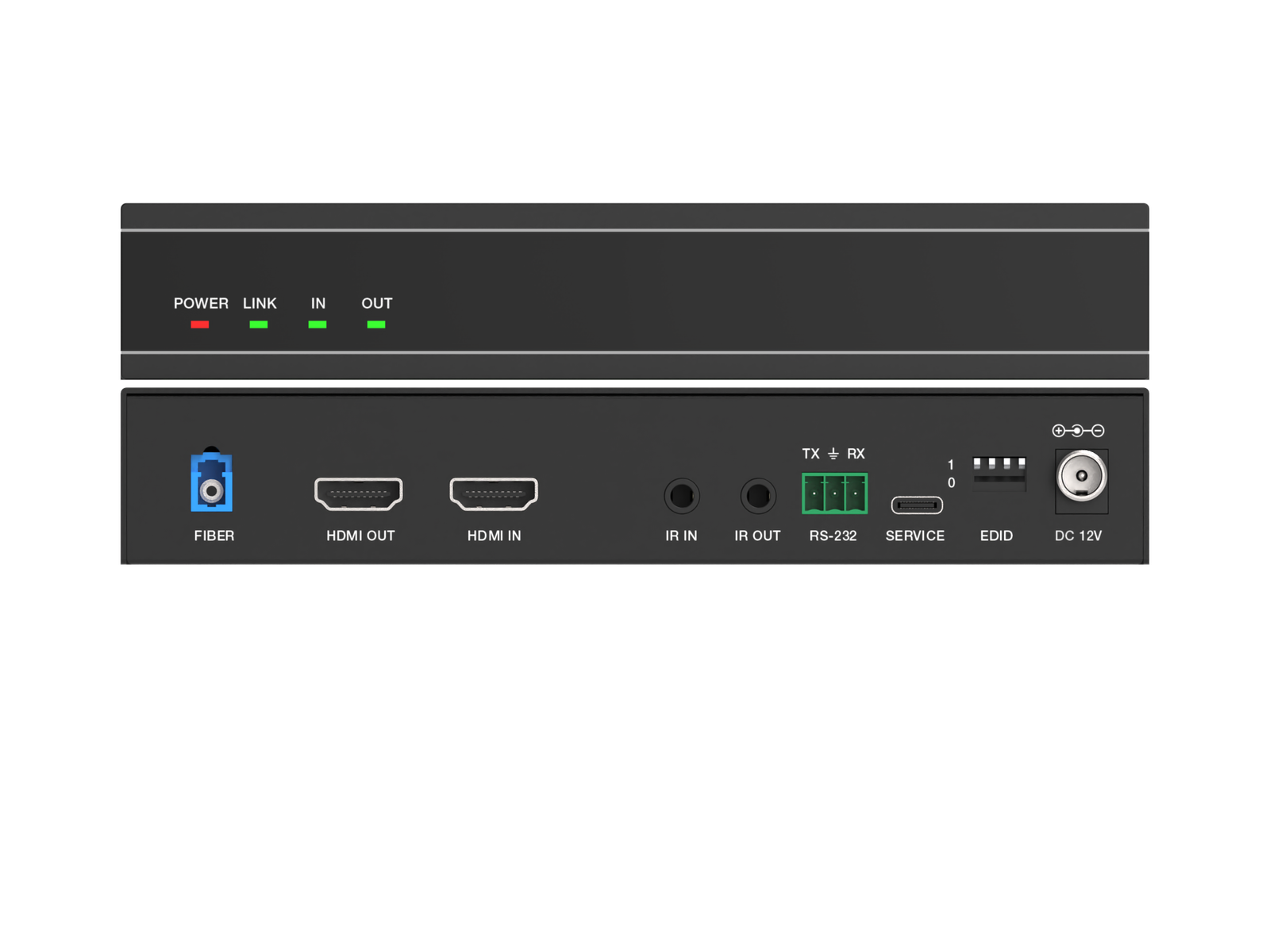

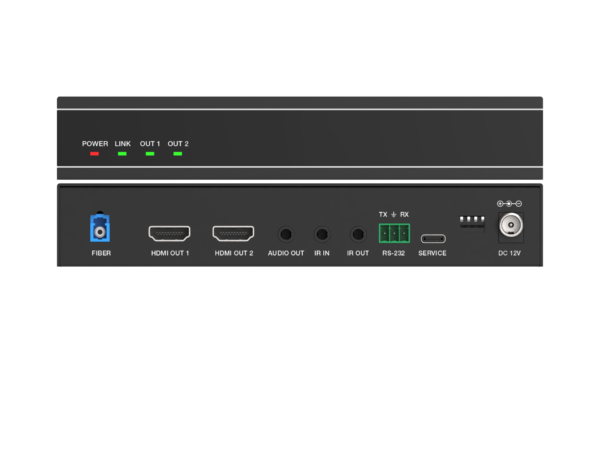

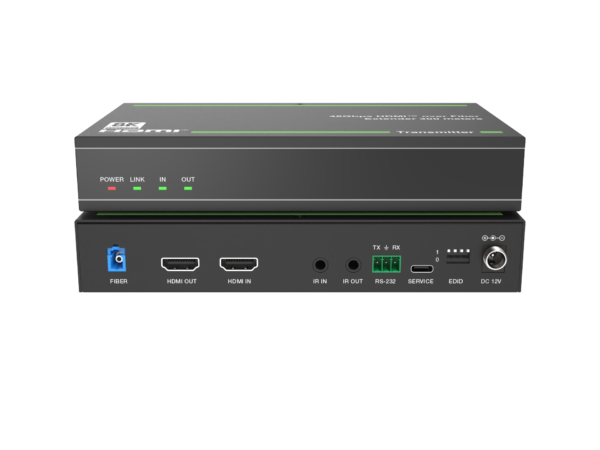

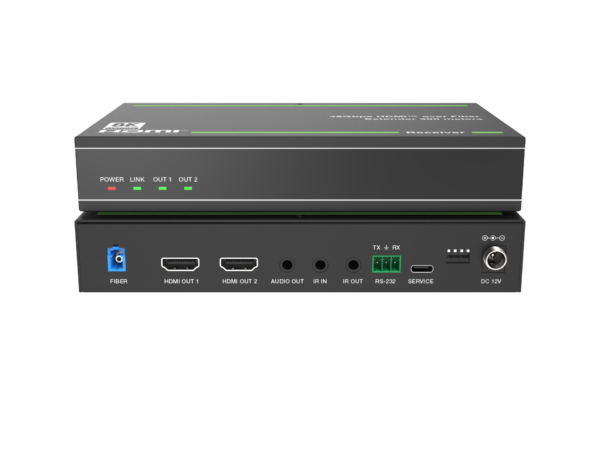

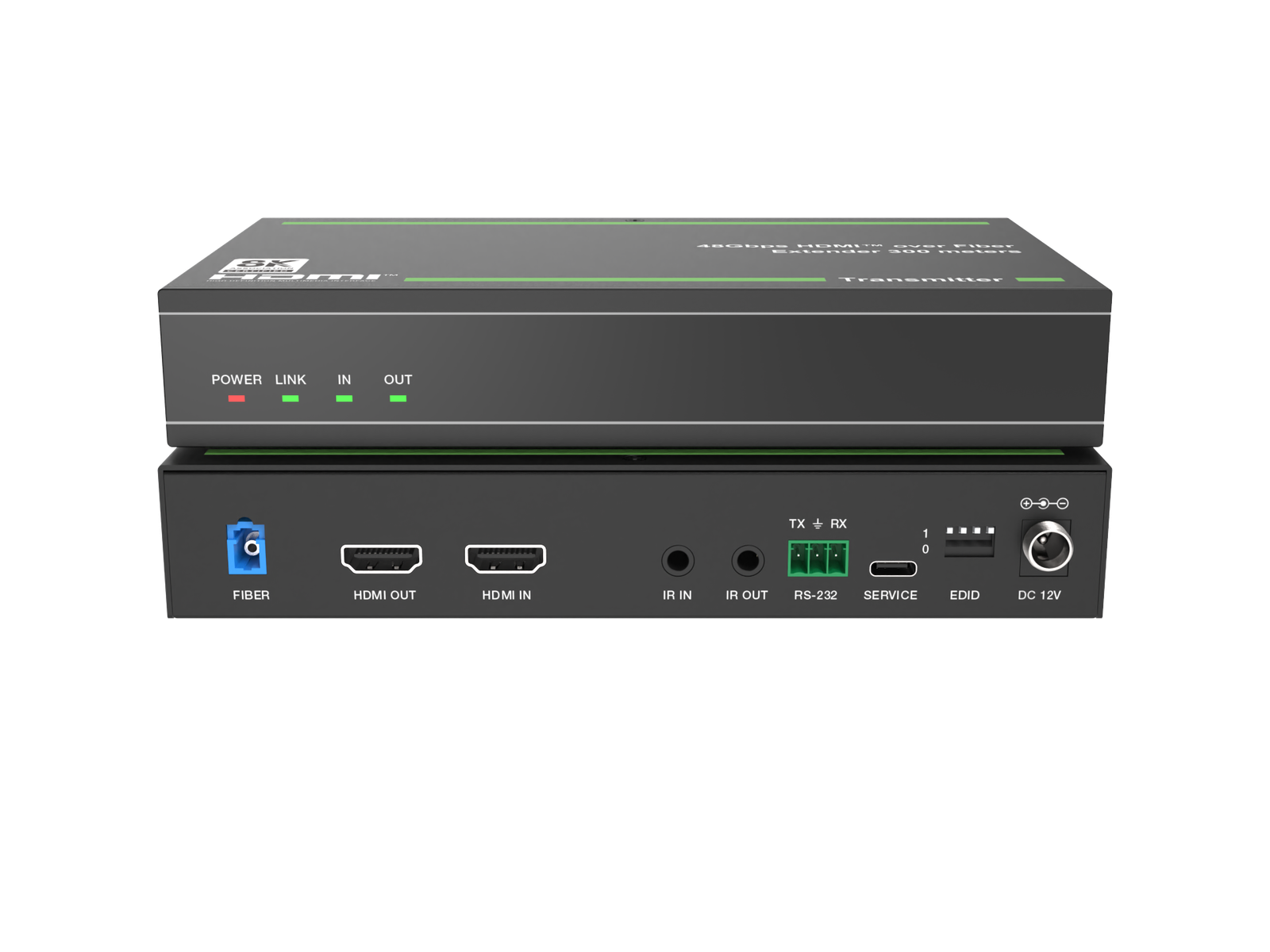

TA-EFC300H 48Gbps HDMI 2.1 Extender over Fiber 300 meters
TA-EFC300H 48Gbps HDMI 2.1 Extender over Fiber 300 meters - Image 2
TA-EFC300H 48Gbps HDMI 2.1 Extender over Fiber 300 meters - Image 3
TA-EFC300H 48Gbps HDMI 2.1 Extender over Fiber 300 meters - Image 4
TA-EFC300H 48Gbps HDMI 2.1 Extender over Fiber 300 meters - Image 5

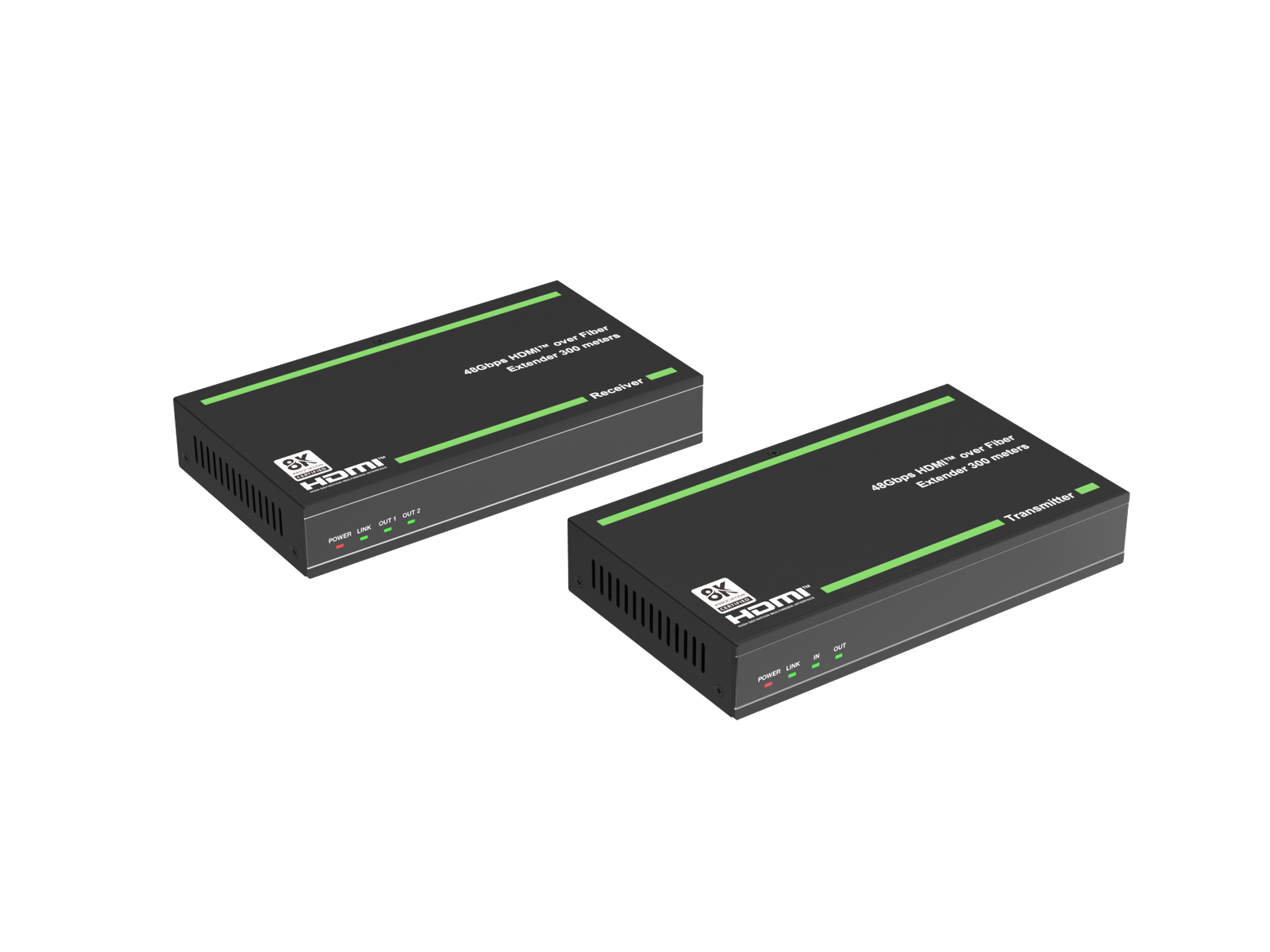

TA-EFC300H 48Gbps HDMI 2.1 Extender over Fiber 300 meters

☆ Extends HDMI 2.1 signal up to 300m.
☆ Supports video resolution up to 8K@60Hz.
☆ Compatible with 4K@120Hz 4:4:4 video.
☆ Utilizes OM4 fiber optic cables.
☆ Features Auto Low Latency functionality.
☆ Includes Variable Refresh Rate support.
☆ Comes with 16 EDID presets available.
☆ Suitable for video conferencing applications.
☆ Ideal for multimedia teaching scenarios.
☆ Perfect for demonstration and presentation use.

Category:

Description

Features

☆ Compliant with HDCP 2.3 ☆ Support video bandwidth up to 48Gbps FRL and 18Gbps TMDS ☆ Video resolution up to 8K@60 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit, as      specified in HDMI 2.1 ☆ Transmission distance can be up to 300m/984ft over an OM4 fiber optic cable ☆ Multi-mode fiber grade OM2/3/4 compliant ☆ Support EDID learning function on Transmitter ☆ Support analog audio de-embedding on Receiver ☆ VRR, ALLM, QMS, QFT, SBTM are supported ☆ HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through are supported ☆ HDMI audio formats support Dolby Atmos, Dolby TrueHD, Dolby Digital Plus      and DTS-HD Master Audio ☆ Bi-directional IR & RS-232 pass-through

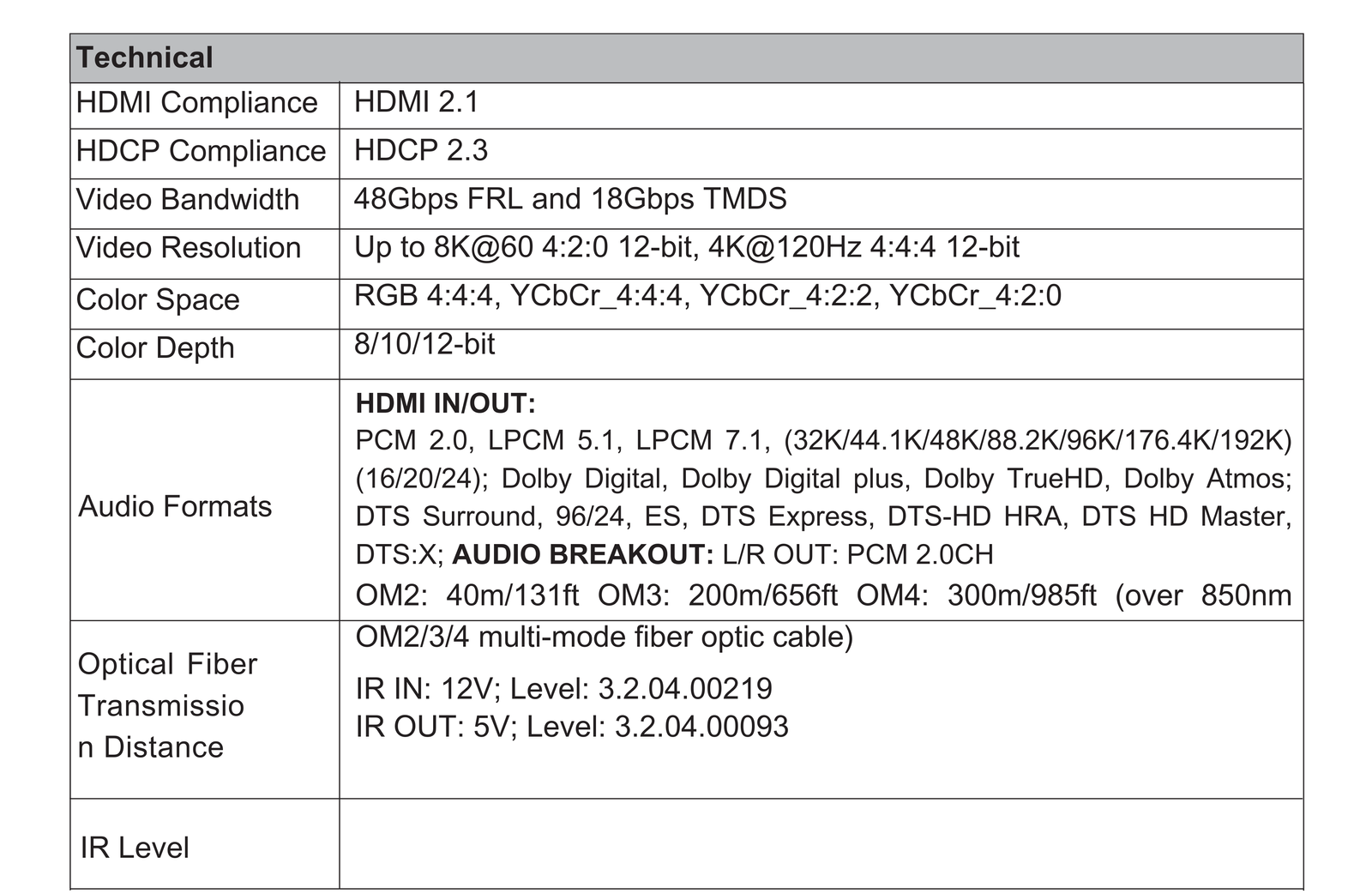

Data sheet

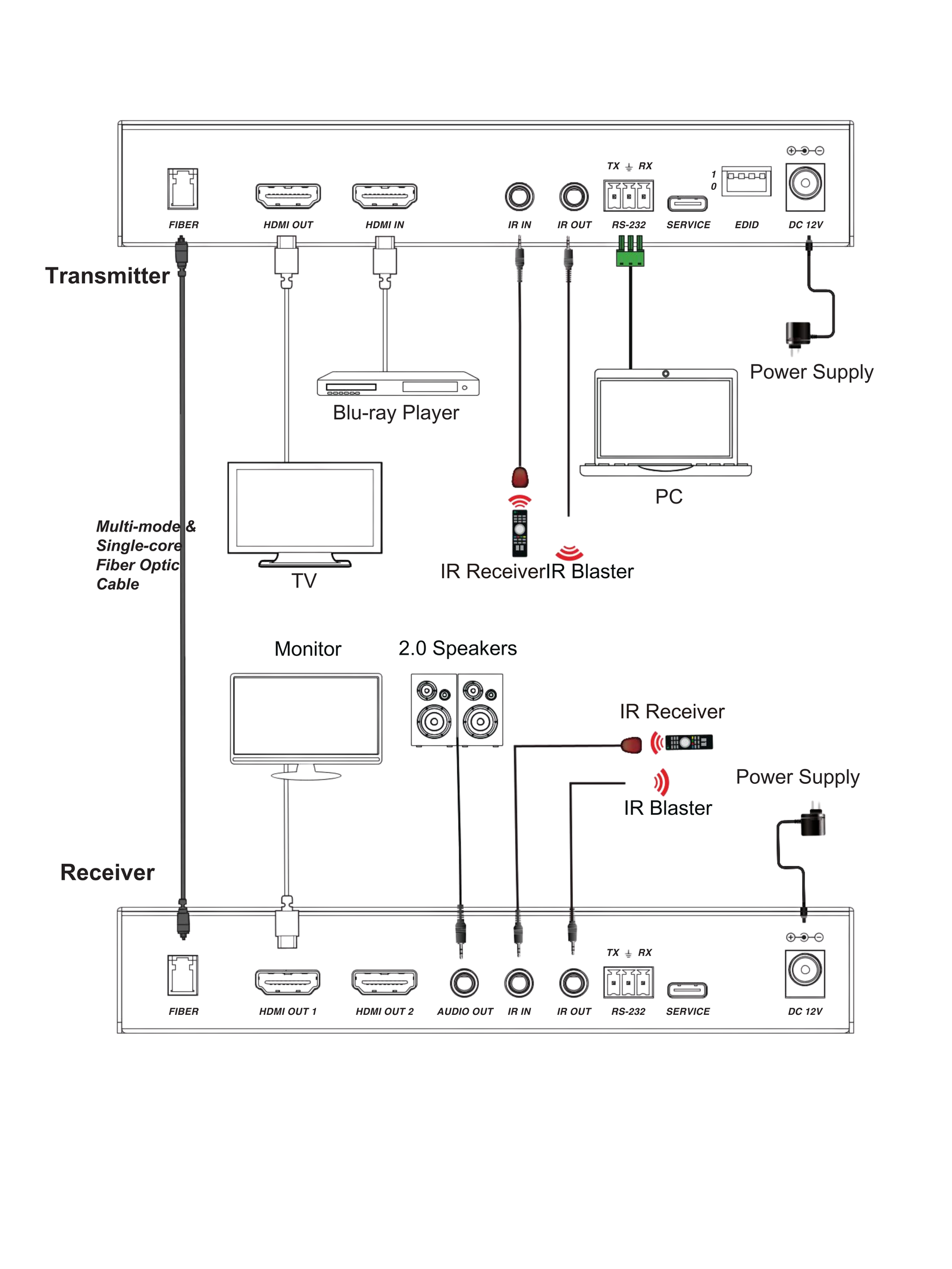

Diagram

Download

TA-EFC300H User Manual_V1.0.pdf

Features

☆ Compliant with HDCP 2.3
☆ Support video bandwidth up to 48Gbps FRL and 18Gbps TMDS
☆ Video resolution up to 8K@60 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit, as
     specified in HDMI 2.1
☆ Transmission distance can be up to 300m/984ft over an OM4 fiber optic cable
☆ Multi-mode fiber grade OM2/3/4 compliant
☆ Support EDID learning function on Transmitter
☆ Support analog audio de-embedding on Receiver
☆ VRR, ALLM, QMS, QFT, SBTM are supported
☆ HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through are supported
☆ HDMI audio formats support Dolby Atmos, Dolby TrueHD, Dolby Digital Plus
     and DTS-HD Master Audio
☆ Bi-directional IR & RS-232 pass-through

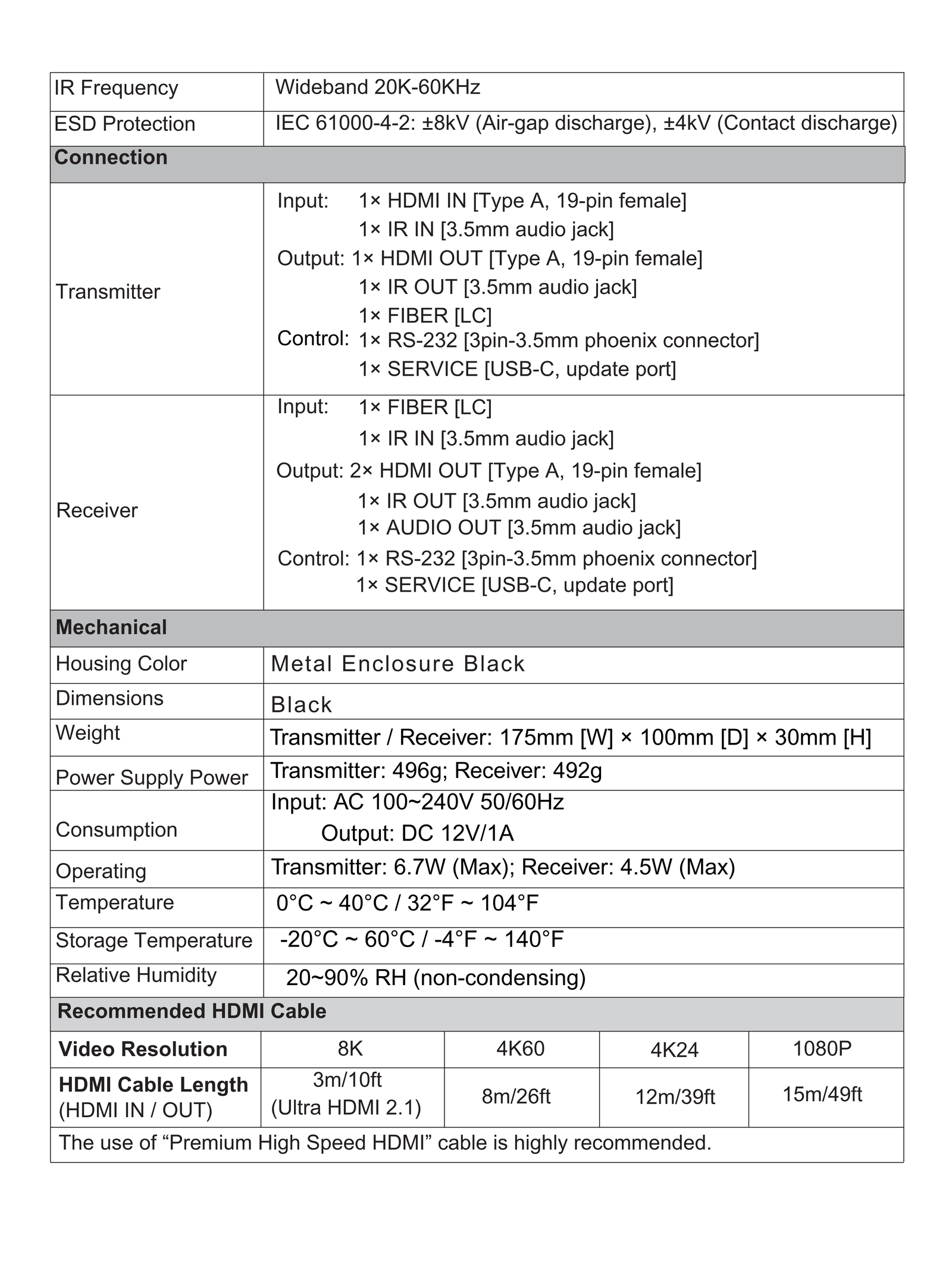

Data sheet



Diagram

Download

TA-EFC300H User Manual_V1.0.pdf
